Home » Miller Bobcat 260 LP (Kohler) Engine-Driven Welder 907794
Miller

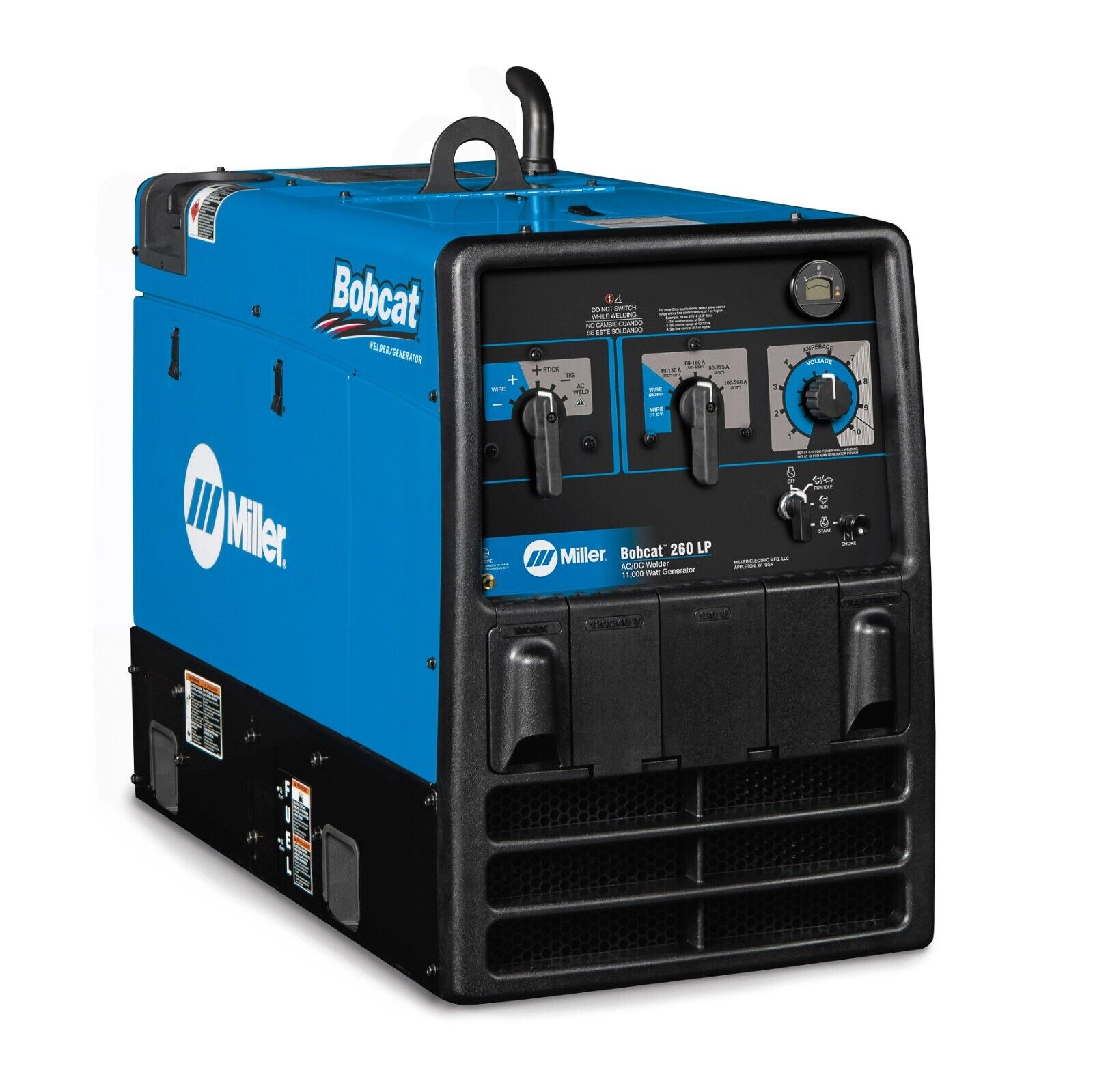

Miller Bobcat 260 LP (Kohler) Engine-Driven Welder 907794

Only 1 left
SKU: 907794
(0)
$10,705.00 USD

Share This Product

Rugged engine-driven welder is great for Stick and Flux-Cored welding and designed for maintenance/repair operations, construction, farm, ranch and auxiliary power use.

Designed for Reliability

From Appleton, Wisconsin USA, our engine-driven welders are the most rugged, durable and long-lasting in the industry. We manufacture them to exceed requirements for extreme working conditions and they are hard-working from the core with:

  • Copper windings and iron generator components for a quality-built machine

  • Lugged — not soldered — heavy internal leads for better field durability

  • Superior cooling technology for maximum performance and engine life

  • Protective doors to cover the weld studs and receptacles as required by OSHA and CSA for jobsite safety

  • Lift hook integrated into the center frame, which bolts to the machine’s base for greater durability



Small, Light Design

Bobcat engine-driven welders take up less space on trucks and trailers — leaving more room on your truck for other equipment and tools. Plus, they’re easy to move around jobsites — even with weld cables attached.

Easy Maintenance

With its intuitive design, the daily maintenance of our Bobcat engine-driven welders is fast and easy. Front panel maintenance displays help you know when your equipment needs to be serviced. And servicing is simple because of:

  • Oil checks that can be performed easily through the top of the machine by the access door

  • Toolless panels that allow for quick access

  • Single-side fuel fill and oil drain/filter


PROCESSES

Air Carbon Arc Cutting and Gouging (CAC-A)

Flux Cored (FCAW)

MIG (GMAW)

Stick (SMAW)

TIG (GTAW)


GENERAL SPECIFICATIONS

Title

Bobcat™ 260 LP (Kohler) Engine-Driven Welder

Industries Interests

Fabrication
Farm and Ranch
Infrastructure
Maintenance and Repair - Field Operations
Maintenance and Repair - In Plant
Work Trucks

Amperage

40 A - 260 A

Weldable Metals

Aluminum
Stainless Steel
Steel

Current Type

AC / DC

Portability

Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)

Engine Brand

Kohler

Engine Idle Speed

2300 RPM

Engine Weld Speed

3600 RPM

Fuel Type

LP

Horsepower

21 hp

Weld Output

CC/CV

Rated Output

CC/AC: 225 A at 25 V, 100% duty cycle / 260 A at 25 V, 60% duty cycle; CC/DC: 260 A at 25 V, 100% duty cycle; CV/DC: 260 A at 28 V, 100% duty cycle / 275 A at 25 V, 60% duty cycle

Single Phase Auxiliary Continuous Power

9500 W

Single Phase Auxiliary Peak Power

11000 W

Sound Rating

72.5 dB/72 dB at max. load/150 A

Net Width

20 in

Net Height

28 in

Net Length

40.5 in

Net Weight

501 lbs
