Home » Miller Millermatic 211 MIG Welder with Advanced Auto-Set 907614 Package 951603
Miller

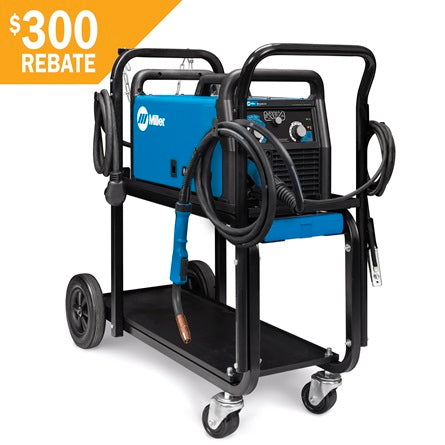

Miller Millermatic 211 MIG Welder with Advanced Auto-Set 907614 Package 951603

In stock
SKU: 951603
(0)
$2,205.00 USD
-4% $2,295.00 USD $2,205.00 USD

Share This Product

Receive A $300 Cash Rebate From Miller! For A Limited Time!

OFFER VALID THROUGH December 30, 2023

Welds material from 24-gauge to 3/8 in thick in a single pass. Uses 120V or 240V power. Uses 110 / 115 / 120 V – 210 / 220 / 240 V

WHAT'S INCLUDED

  • Millermatic 211

  • Hook-and-loop cord wraps

  • 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V

  • 10 ft (3 m) MDX™-100 MIG gun

  • 10 ft (3 m) work cable and clamp

  • Argon and AR/CO2 mix regulator/flow gauge with hose

  • Spool of Hobart® .030 in (0.8 mm) solid wire

  • Two contact tips for .030 in (0.8 mm) wire

  • Quick Select drive roll for .024 in or .030/.035 in solid wire, & .030/.035 (0.8/0.9 mm) flux cored wire

  • Material thickness gauge #229895

  • Running gear/cylinder rack



Advanced Auto-Set™

Advanced Auto-Set™ now includes five different wire/gas combinations and .024, .030 and .035-inch wires. The easiest welder to use just became more versatile.



Inverter Technology

Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.



Quick Select™ Drive Roll

Quick Select™ drive roll makes setup quicker by offering three grooves—two for different size solid wire and a third for flux-cored wire.

Auto Spool Gun Detect™

Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.



Fan-On-Demand™

Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.



Multi-voltage plug (MVP™)

Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.



New Drive System

Angled cast-aluminum drive system with calibrated tension knob creates consistent feeding and easy setup for up to 15-foot MIG guns.



Smooth-Start™

Smooth-Start™ provides a smooth, spatter-free start. It’s the best-starting machine in the small MIG machine category.



Generator Compatible

The Millermatic 211 will be able to operate and provide full output when powered by generators with 7000 Watt (7K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.



PROCESSES

MIG (GMAW)

Flux Cored (FCAW)

GENERAL SPECIFICATIONS

Title

Millermatic® 211 MIG Welder with Running Gear/Cylinder Rack

Industries Interests

Racing
Farm and Ranch
Welding Education and Training

Amperage

30 A - 230 A

Material Thickness

Aluminum 18 ga. (1.2 mm) - 3/8 in. (9.5 mm)
Mild Steel 24 ga. (0.5 mm) - 3/8 in. (9.5 mm)

Weldable Metals

Aluminum
Stainless Steel
Steel

Input Voltage

110/115/120 V
220/230/240 V

Input Phase

1-Phase

Input Hz

50/60 Hz

Current Type

DC

Rated Output

150 A at 21.5 VDC, 40% duty cycle (240V),115 A at 19.8 VDC, 20% duty cycle (120V)

Max Open Circuit Voltage

54 VDC

Wire Feed Speed

1.5 m/min - 15.2 m/min
60 IPM - 600 IPM

Wire Diameter

Stainless 0.024 in. - 0.035 in.
Stainless 0.6 mm. - 0.9 mm.
Solid Steel 0.6 mm. - 0.9 mm.
Solid Steel 0.024 in. - 0.035 in.
Flux Cored 0.03 in. - 0.045 in.
Flux Cored 0.8 mm. - 1.2 mm.

Spool Size

8 in (203 mm)

Portability

Handle(s)
Running Gear / Cart (Standard)

Weld Output

CV

Applications

Welding Projects

Net Width

11.25 in

Net Height

12.5 in

Net Length

20.5 in

Net Weight

38 lbs

Warranty

Miller's True Blue Warranty
