Product Literature
Processes
Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
TIG DC (GTAW-DC)
Plasma (PAC)
General Specifications

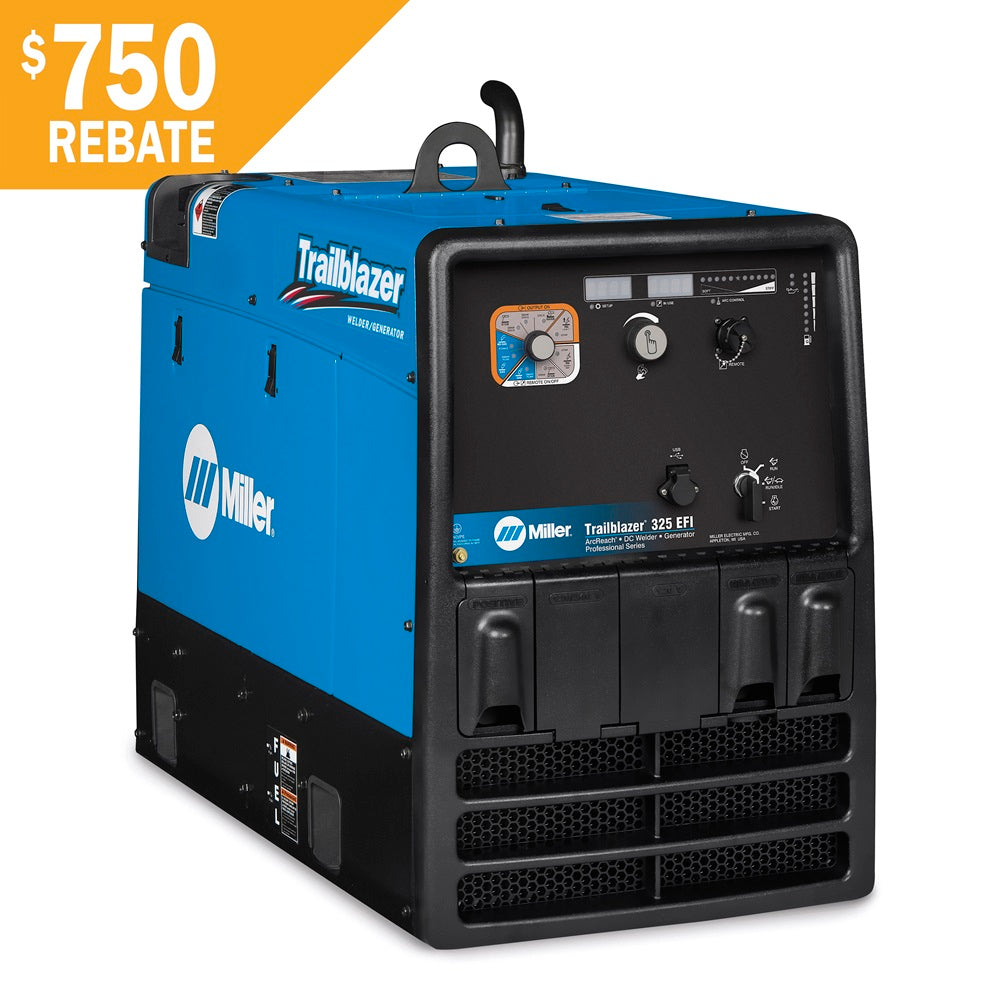

| Title | Trailblazer® 325 (Kohler) EFI |
|---|---|
| Engine Brand | Kohler |
| Engine Idle Speed | 2400 RPM |
| Engine Weld Speed | 2400 RPM 2800 RPM 3200 RPM 3600 RPM |
| Fuel Tank Size | 12 gal. |
| Fuel Type | Gasoline |
| Horsepower | 23 hp |
| Single Phase Generator Continuous Power | 10500 W |
| Single Phase Generator Peak Power | 12000 W |
| Rated Carbon Diameter | 3/16 in (4.8 mm) |
| Current Type | DC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Weld Output | CC / CV |
| Net Width | 20 in |
| Net Height | 28 in |
| Net Length | 40.5 in |
| Net Weight | 491 lbs |
| Warranty | 3 Years Miller's True Blue Warranty Engine Warranties |
