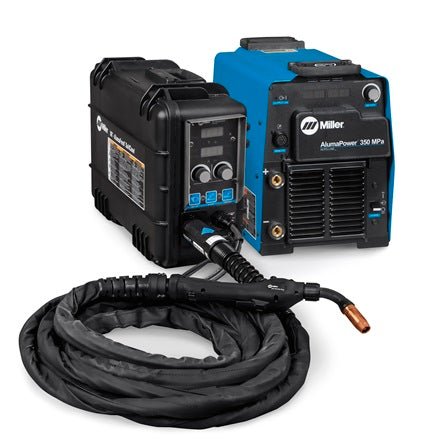

Miller AlumaFeed 350 Mpa stationary pkg with 25ft. air-cooled XR-Alumapro 951834
Regular price
$15,778.00 USD
Couldn't load pickup availability
Share This Product
XR-AlumaFeed® system consistently delivers premium feeding performance; has a balanced, ergonomic gun design; and is portable when needed, to allow you to weld aluminum all day.
WHAT'S INCLUDED
1) Fastip contact tips 3 each for .035 Al and 3/64 Al
2) Gun and feeder drive rolls for .035-3/64 wires
3) XR-A AlumaPro 25ft
4) XR Alumafeed Suitcase Feeder
5) AlumaPower 350 Mpa
Balanced Gun Design
XR-Aluma-Pro™ push-pull guns are balanced and have a natural feel, so welders have improved joint access and can maintain proper gun angles, stick out and travel speeds.
Industrial-quality gun cable
XR-Aluma-Pro™ push-pull guns have a durable cable covering and strain relief to withstand industrial environments and resist damage, reducing downtime and costs.
Rugged and Portable Case
XR-Aluma-Pro™ Suitcase® wire feeders have a rugged, proven plastic case that’s designed to withstand industrial environments. It’s also lighter, so when portability is needed, it’s easy to move, so welders can extend their reach and go where the weld is.
Profile Pulse™
Provides TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.
Wind Tunnel Technology™
Protects internal components, greatly improving reliability.
Premium feeding performance
Synchronized push pull system consistently delivers premium feeding performance to ensure high weld quality and keep welders in production.
Parameter and system locks
Enhance quality assurance and protect weld consistency.
Trigger schedule select
Allows operator to change between two sets of weld parameters.
Insight
Insight compatible to monitor weld voltage, amperage, and arc-time and percentage.
Fan-On-Demand™
Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
PRODUCT LITERATURE
GENERAL SPECIFICATIONS
| Title | AlumaFeed 350 Mpa stationary pkg with 25ft. air-cooled XR-Alumapro |
|---|---|
| Industries Interests | Shipbuilding Manufacturing Aerospace |
| Amperage | 5 A - 425 A |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 220/208 V 380/400/440 V 460/480 V 575 V |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Applications | Fabrication Welding Education and Training |
