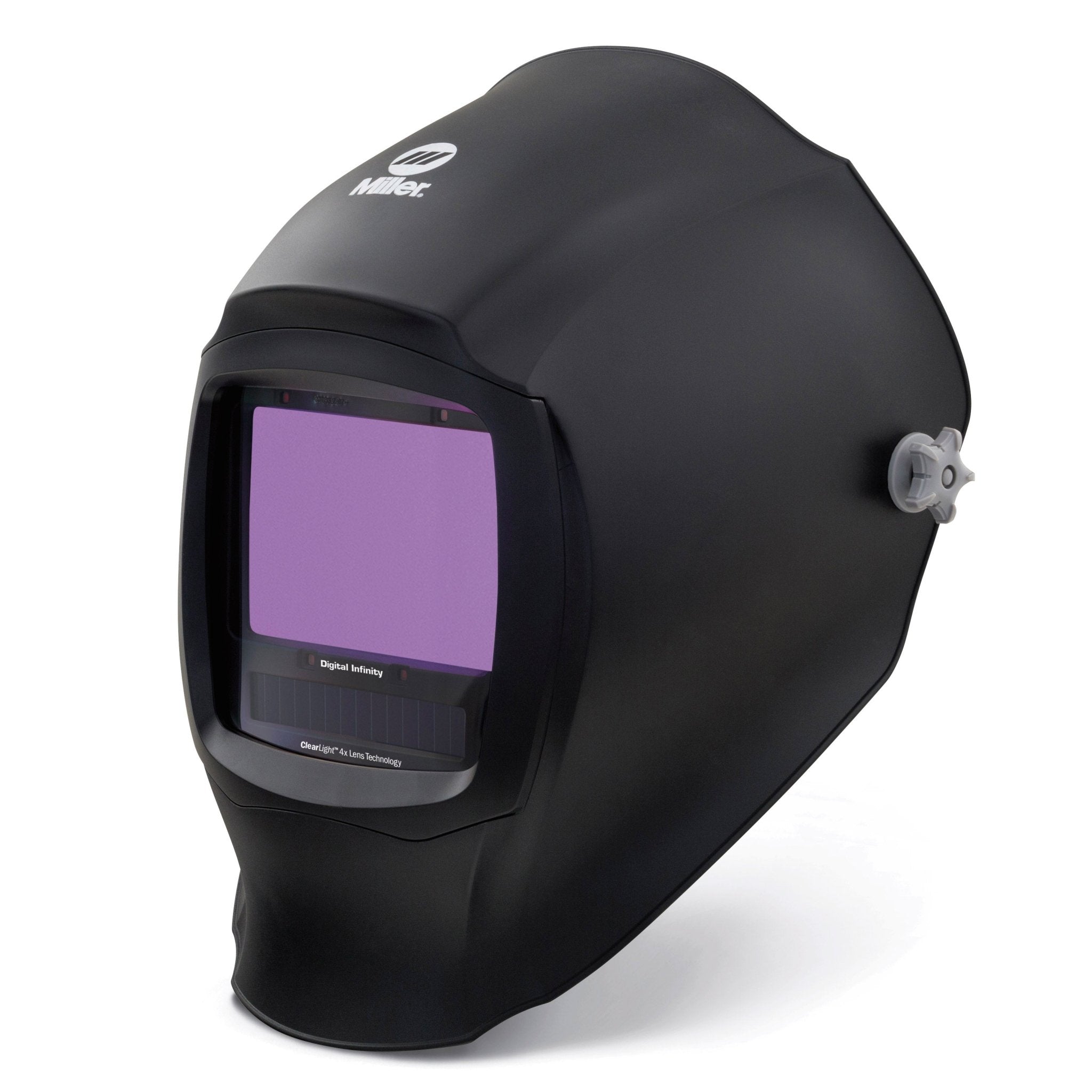

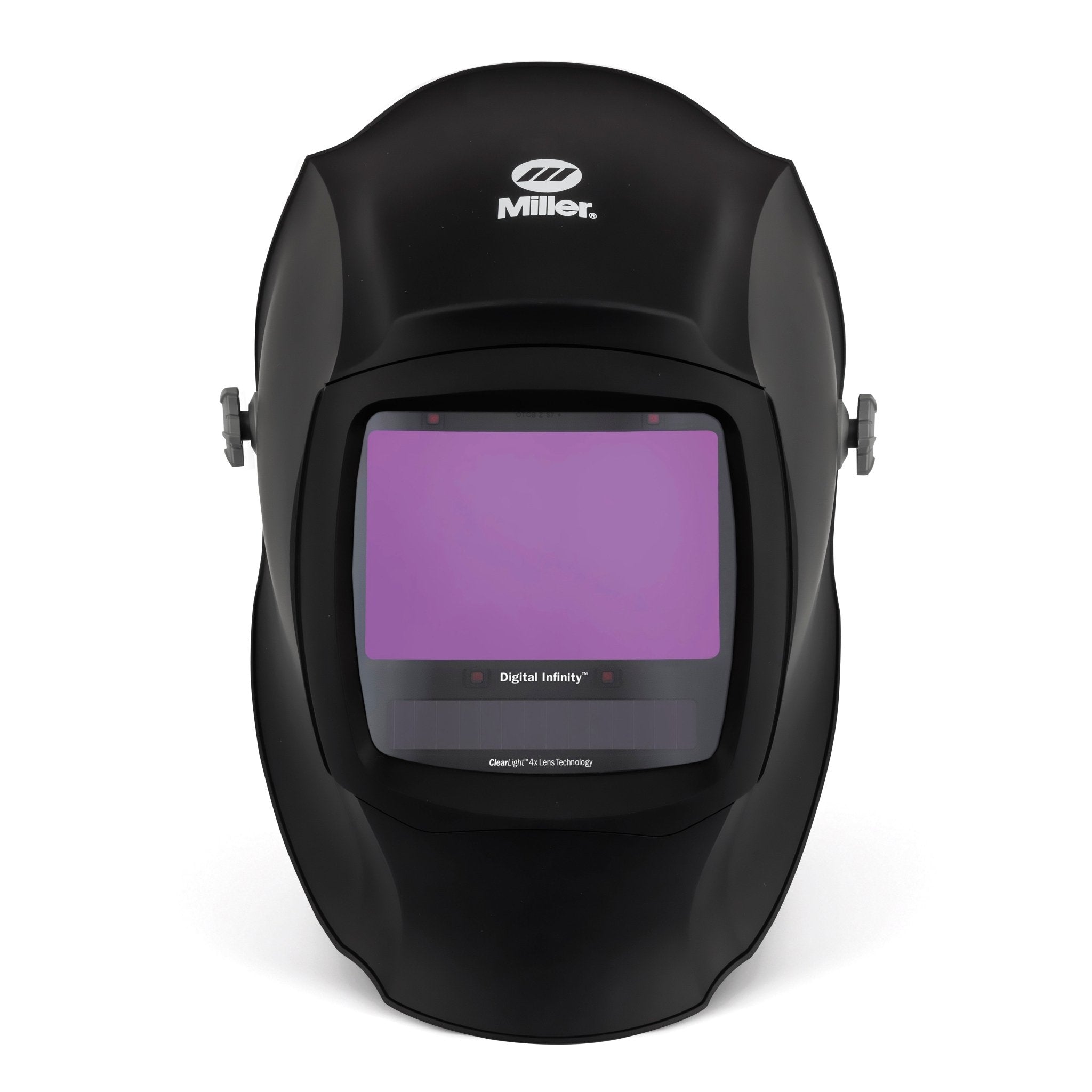

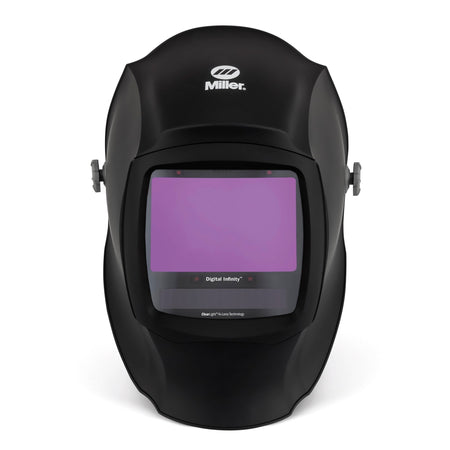

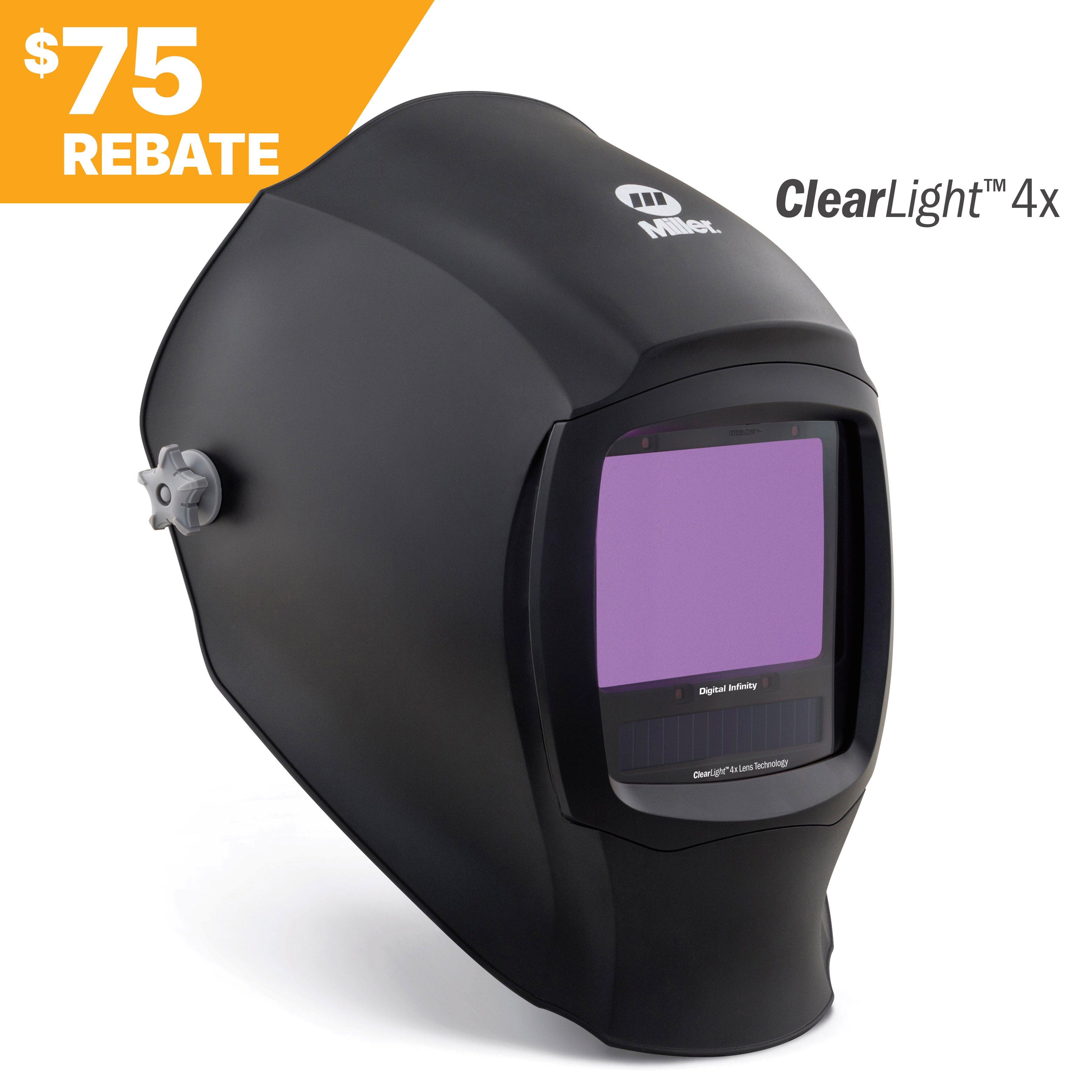

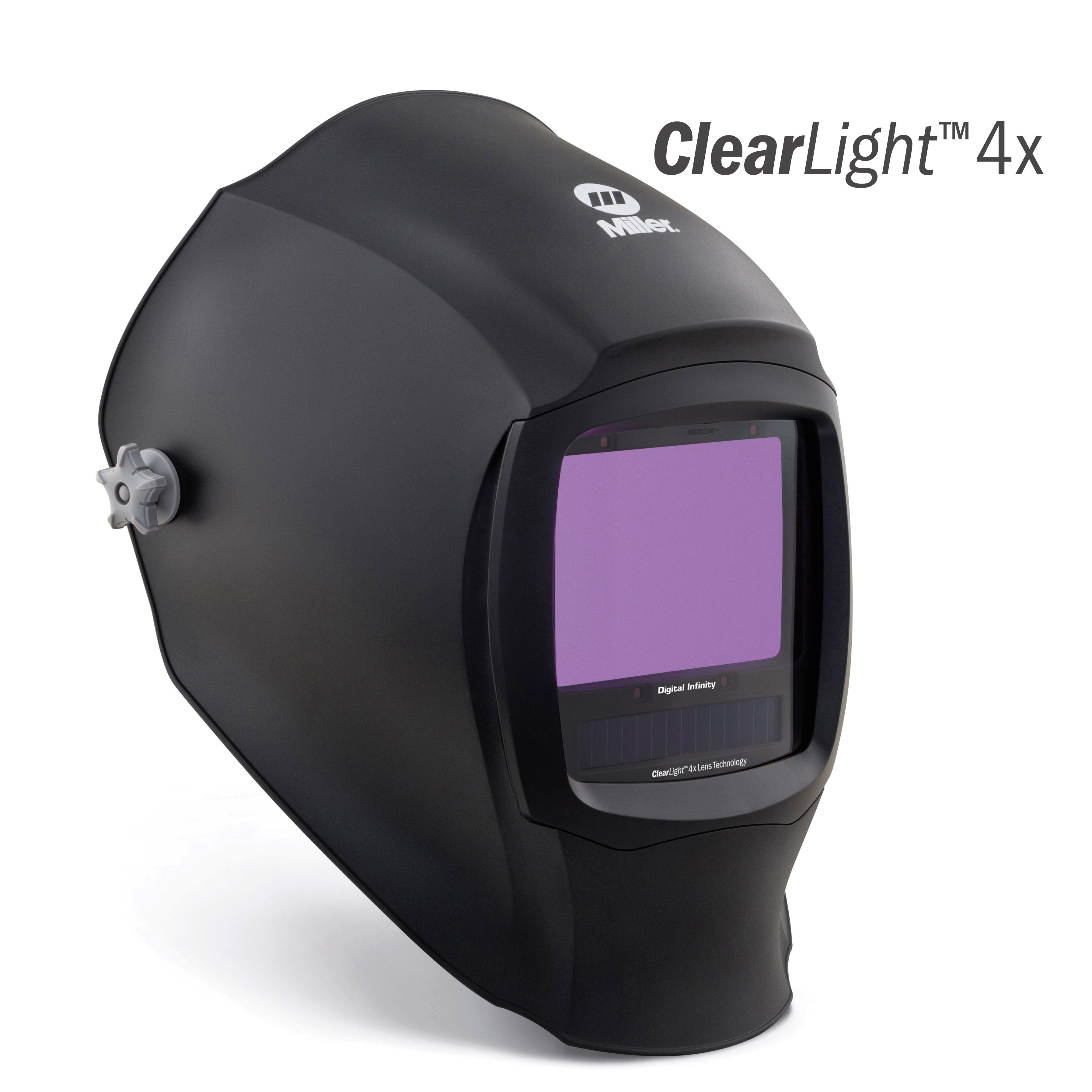

Miller Digital Infinity Auto Darkening Welding Helmet Black ClearLight 4x 296786
Regular price
$380.00 USD
Couldn't load pickup availability
Share This Product
This helmet has the Largest viewing area maximizes visibility – featuring ClearLight™ 4x Lens Technology
What's Included
Helmet bag
2 inside cover lenses
5 outside HDV cover lenses
Clip-on Top Comfort Cushion
ClearLight™ 4x Lens Technology
Advanced high-definition optics deliver a clearer, brighter, more realistic view for every stage of every weld.
2.5 Light State
Brighter light state that allows operators to keep their hood down, improving safety and productivity.
13.4 sq. in. Viewing Area
Provides the largest viewing area for maximum visibility.
InfoTrack™ 2.0
Monitors arc time and arc count for quoting and metrics
AutoSense™
Automatically sets the helmet sensitivity by sensing your welding environment. Ideal for weld operators who frequently adjust their settings for changing welding environments.
Four Arc Sensors
Four independent arc sensors provide superior lens response for obstructed or low amp welding.
Four Operating Modes
Weld, Cut, Grind, and X-Mode provide ultimate versatility.
Digital Controls
Intuitive design and large push buttons allow user to easily adjust mode and settings.
Memory Function
For ease of switching between two preset customized memory settings
Half Shade Settings
For precise shade adjustments.
Legacy Headgear
Designed for unsurpassed comfort and stability for all-day wearability.
X-Mode
Electromagnetically senses the weld to eliminate sunlight interference and continuously detects the arc even if sensors are blocked.
Auto-On/Off
Lens automatically turns on at the strike of an arc.
Quick Release Cover Lens
Simplifies lens changes and reduces downtime.
Variable Shades
Welding shades 8-13 and cutting shades 5-8 allow operators to customize the lens shade to their needs.
General Specifications
| Title | Digital Infinity™, Black, ClearLight 4x |
|---|---|
| Arc Sensors | 4 |
| Colors Patterns | Black |
| Delay Control | ✔ |
| Digital | ✔ |
| Grind Mode | ✔ |
| New Headgear | — |
| Low Amp TIG Rated | ✔ |
| Low Battery Indicator | ✔ |
| Modes | Cut Grind Weld X-Mode |
| Reaction Time | 1/25,000 |
| Sensitivity Control | ✔ |
| Shell Material | Nylon |
| Viewing Field | 13.4 in |
| Warranty | 4 Years Miller's True Blue Warranty |
