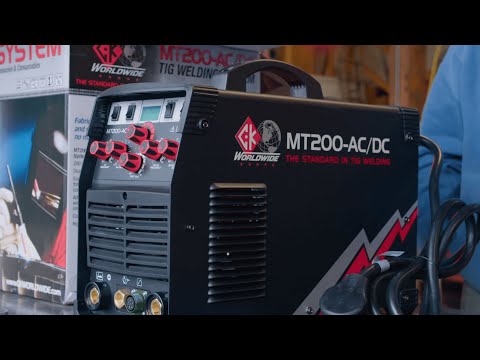

The MT200-AC/DC is the answer to both creativity and production driven TIG welding. This innovative TIG welding machine provides the ability to quickly and efficiently adapt to dynamic welding situations, while maintaining the quality of experience you have come to expect from CK Worldwide.
- Complete TIG Welding System
- Now Includes Patented Steady-Grip™ Foot Pedal
- 5 Amp Arc Starts
- Dual Voltage (115V - 220V)
- Compact Portable Design
- Easy-to-Use Interface
COMPLETE SYSTEM INCLUDES:
1) MT200-AC/DC Welding Machine
2) CK17 Flex-Head Gas-Cooled TIG Torch
3) Super-Flex™ Cables with Dinse Connector
4) AK-3 Accessory/Consumable Kit
5) Ground Clamp
6) Single-Flow Regulator
7) Power Adapter
|
Input Voltage
|
115VAC 15%, 50/60Hz
|
|
220VAC 15%, 50/60Hz single phase
|
|
Input Current
(15A/20A)
(1 max)
|
115V: 21 Amps / 28.6Amps
|
|
220V: 34 Amps
|
|
Output Current
Range GTAW
|
115V 5: 140 Amps
|
|
220V 5: 200 Amps
|
|
Output Current
Range SMAW
|
115V 10: 110 Amps
|
|
220V 10: 160 Amps
|
|
Rated Output
GTAW
|
115V: 15A @ 95A/13.8V, 60% duty cycle
20A @ 115A/14.6V, 50% duty cycle
|
|
220V: 200A @ 18.0V, 25% duly cycle
|
|
Rated Output
SMAW
|
115V: 15A @ 60A/22.4V, 60% duty cycle
20A @ 80A/23.2V, 45% duty cycle
|
|
220V: 160A @ 26.4V, 30% duly cycle
|
|
Max. Open
Circuit Volts
|
61 Volts
|
|
Gas Pre Flow
|
0.5 Seconds
|
|
Gas Post Flow
|
0.5 - 20 Seconds
|
|
AC Frequancy
|
20 - 250 Hz
|
|
Pulse
Frequancy
|
1 - 200 Hz
|
|
Pulse Width
|
50%
|
|
Base Current
|
10 - 100%
|
|
Arc Start
|
High Frequancy
|
|
Dimensions
|
Height: 15 in. (381mm)
|
|
Width: 8.5 in. (217mm)
|
|
Lenght: 20 in. (502mm)
|
|
Weight
|
32 lb. (14.5kg)
|
