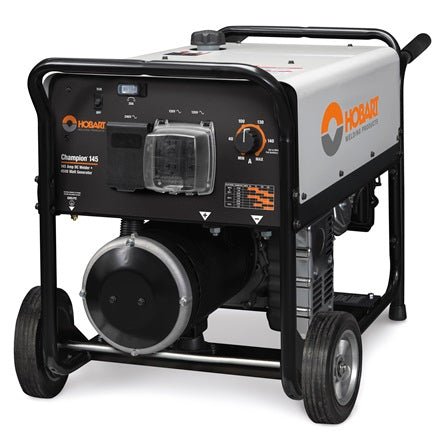

Hobart Champion 145 Recoil Engine Driven Welder With GFCI 500563
Atlas Welding Supply Satisfaction Guarantee!
Regular price
$2,499.99 USD
Regular price
-20%
$3,125.00 USD
Sale price
$2,499.99 USD
Hobart Champion 145 Recoil Engine Driven Welder With GFCI 500563 is portable and provides 145-amps for stick welding with 4,500-watt auxiliary output power. The DC stick welder is designed for quick and easy arc starts, and can handle DC stick electrodes up to 5/32 inch diameter.
Built tough for portable welding applications: Lightweight and compact, the Hobart Champion 145 engine-driven welder provides stick welding capability. It delivers up to 145 amps to weld with up to 5/32-inch electrodes, making it an ideal choice for maintenance and repair projects.
This welder is a good source of auxiliary power: Providing up to 4,500 starting watts for hand tools, grinders, work lights and battery chargers. Engine is warrantied separately by the engine manufacturer
Welding Amp Range: 40 – 145 A
Rated Output: 130 A at 25 V, 30% duty cycle
Single-Phase Auxiliary Power: 4 kVA/kW, 120/240 V, 60 Hz

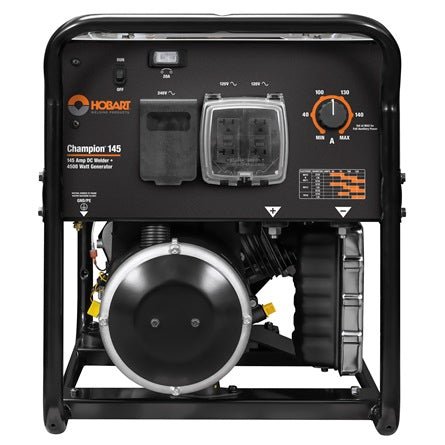

Versatile receptacle package: Unit features four 120 V, 20 A GFCI receptacles and one 240 V (6-50R) receptacle with covers.
Built-in running gear: Easy to move for convenient portable power.
Large muffler
Quiet operation.
Briggs & Stratton Intek(TM) engine
No need for you to take breaks to fill up the tank. Fuel-efficient engine with 6.25-gallon fuel tank for longer run times.
Versatile receptacle package
With four 20A, 120 VAC GFCI receptacles and one 240 VAC (6-50R) receptacle with covers, allows you to obtain power for with 120 or 240 V tools.
145 amp DC welder
Allows you to weld DC stick electrodes up to 5/32 in. diameter.
Lightweight and rugged
Portable at 222 lb. (101 kg) with running gear and rollbar frame built for your added protection.
Processes
Stick (SMAW)
Key Specifications
| Title | Champion® 145 Recoil Engine Driven Welder |
|---|---|
| Applications | Fabrication |
| Industries | Farm and Ranch |
| Amperage | 40 A - 145 A |
| Weldable Metals | Specialty Metals Stainless Steel Steel |
| Current Type | DC |
| Fuel Tank Size | 6.25 gal. |
| Fuel Type | Gasoline |
| Weld Output | CC |
| Rated Output | 130 A @ 30% Duty Cycle |
| Single Phase Auxiliary Continuous Power | 4000 W |
| Single Phase Auxiliary Peak Power | 4500 W |
| Net Width | 20.625 in |
| Net Height | 24.75 in |
| Net Length | 31.25 in |
| Net Weight | 222 lbs |
| Warranty | 3 Years Hobart Warranty |
