Hobart Handler 190 Mig Welder 500554

In stock
SKU: 500554
(0)
$939.99 USD

Share This Product

An industrial performance welder that is spool gun ready for aluminum. Runs on 230V input power, welds up to 5/16 in. mild steel and is flux-cored or MIG ready.​

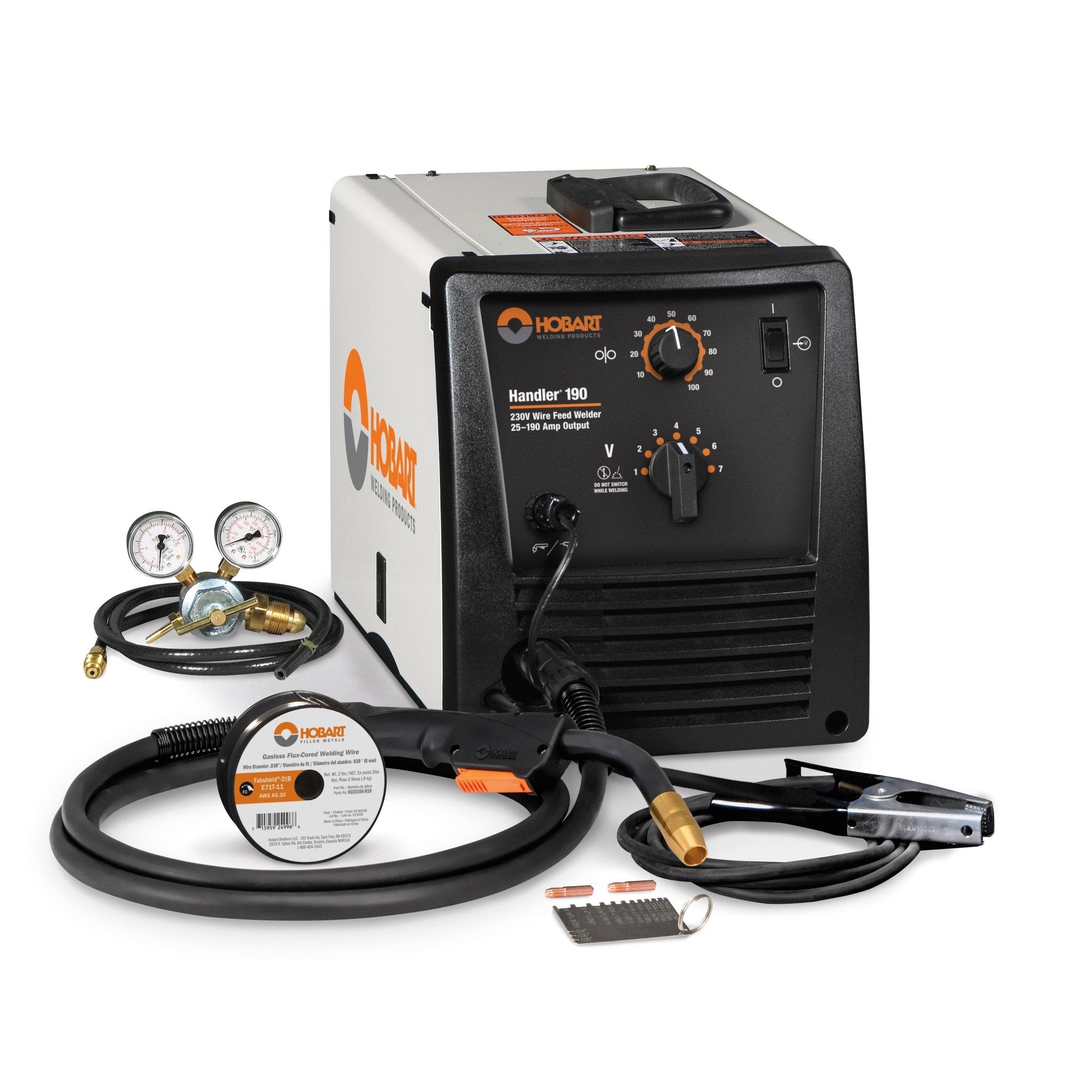

WHAT'S INCLUDED

  • Comfortable 10 ft. (3 m) H100S4-10 gun
  • Owner's manual with installation, operation and maintenance guidelines
  • 10 ft. (3 m) work cable with clamp
  • Built-in gas solenoid valve and dual-gauge regulator with gas hose.
  • Spool hub assembly accommodates 4 or 8 in. spools
  • Sample spool of .030 in (0.8mm) self-shielding flux-cored wire
  • .030 in. (0.8mm) contact tips
  • Quick Select™ drive roll for .024 in (0.6mm) or .030/.035 in. (0.8/0/9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
  • Power cord with plug
  • Welding guide and material thickness gauge
  • Comfortable 10 ft. (3 m) HR-100 gun

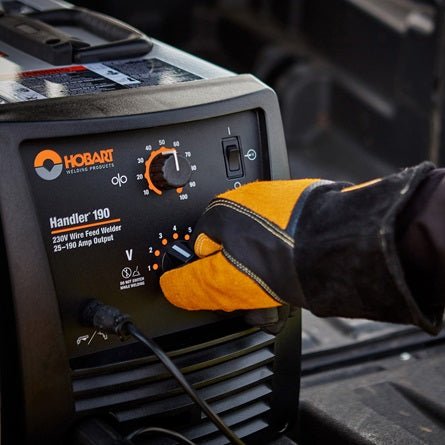

    • 7 voltage settings, with infinite wire feed speed control
    Allows you to fine control the output parameters for improved arc performance with less spatter for a better bead appearance and less clean up.

    Accepts uncomplicated, easy-to-install direct plug-in SpoolRunner 100 spool gun
    Allows you to weld aluminum with enhanced feed ability and reduction of "bird-nesting".

    Integrated spool gun control circuitry is standard
    Eliminates your need for an additional control box or adaptor to connect the SpoolRunner 100 spool gun.

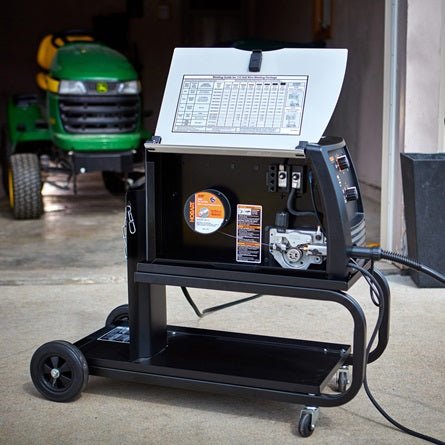

    Door Chart with initial settings
    You are able to quickly reference initial settings for different wires, gases, materials, and thicknesses. Provides you a quick starting point whether you are a novice or professional.

    Built-in contactor
    Keeps wire electrically “cold” until trigger is pulled which gives you ease of use and keeps you safe.

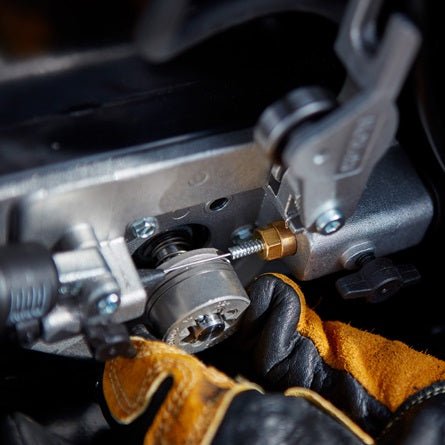

    Industrial cast aluminum wire drive system
    Durable wire feed provides you professional performance

    Convenient polarity changeover
    Easier and quicker for you to change polarity between solid or tubular wire.

    Quick Select drive roll
    Less of your time consumed in setup by offering three grooves – two for different size solid wire and a third for flux-cored wire.

    Short circuit protection
    Protects unit against current overload.

    Self- resetting thermal overload protection
    Protects power transformer from thermal overload to provide you maximum reliability.

    Self-resetting motor protection
    Protects wire feed system from overload, you won't need to change or reset the circuit breaker button.

    PROCESSES

    Flux Cored (FCAW)
    MIG (GMAW)

    GENERAL SPECIFICATIONS

    Title Handler® 190 MIG Welder
    Industries Interests Auto Repair
    Construction and Fabrication
    Amperage 25 A - 190 A
    Material Thickness Mild Steel 24 ga. (0.5 mm) - 5/16 in. (7.9 mm)
    Weldable Metals Aluminum
    Stainless Steel
    Steel
    Input Voltage 220/230/240 V
    Input Phase 1-Phase
    Input Hz 60 Hz
    Current Type DC
    Rated Output 30% @ 130A
    Max Open Circuit Voltage 31 VDC
    Wire Feed Speed 40 IPM - 740 IPM
    Wire Diameter Stainless 0.024 in. - 0.035 in.
    Stainless 0.6 mm. - 0.9 mm.
    Solid Steel 0.6 mm. - 0.9 mm.
    Solid Steel 0.024 in. - 0.035 in.
    Flux Cored 0.03 in. - 0.045 in.
    Flux Cored 0.8 mm. - 1.2 mm.
    Weld Output CV
    Applications Mobile Fabrication & MRO
    Welding Projects
    Net Width 10.625 in
    Net Height 12.375 in
    Net Length 19.5 in
    Net Weight 68 lbs
    Warranty 3 Years
    Hobart Warranty
