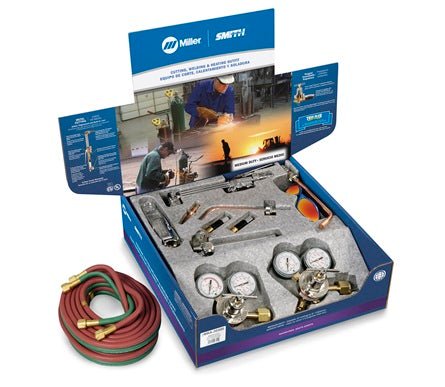

Smith MBA‑30300 Medium‑Duty Acetylene Combination Outfit
Overview
The Smith MBA‑30300 is a high‑performance, versatile oxy‑acetylene torch outfit built for cutting, welding, and heating tasks. Designed for medium‑duty shop or field use, this all‑in‑one kit delivers reliable performance, precise control, and built‑in safety features for professionals and serious hobbyists alike.
Key Features & Benefits
-
Cutting & Welding Capabilities
Capable of cutting steel up to 6 inches thick and welding up to ⅜ inch in a single pass.
Heating capacity peaks at approximately 40,125 BTU/hr, making it a solid choice for preheating, brazing, or annealing.
-
In‑Tip Gas Mixing for Efficiency & Safety
Each cutting tip features precision in‑tip mixing, carefully pre‑mixing acetylene and oxygen inside the tip to reduce flashback risk and improve flame stability.
-
Slip‑In Tip Design + Graf‑Tite® Soft Seats
Tips are simple to change — after the initial wrench tightening, future swaps can be done by hand. The Graf‑Tite® soft seat material protects against nicks and wear, enhancing tip life.
-
Robust Regulator Setup
Includes Series 30™ regulators with Sure‑Seat™ technology and 2" gauges, built to resist contamination and improve sealing reliability.
-
Durable Torch & Cutting Attachment
The kit includes a WH100 torch handle and MC509 cutting attachment (three‑tube construction ensures separation of gases, avoiding mixing tube burnout).
Features like the ease‑on oxygen cutting valve, triple O‑ring seal, and internal protected threads enhance usability and longevity.
-
Safety Components Included
Comes with torch‑mount flashback arrestors, safety glasses, tip cleaner, friction lighter, and other key accessories.

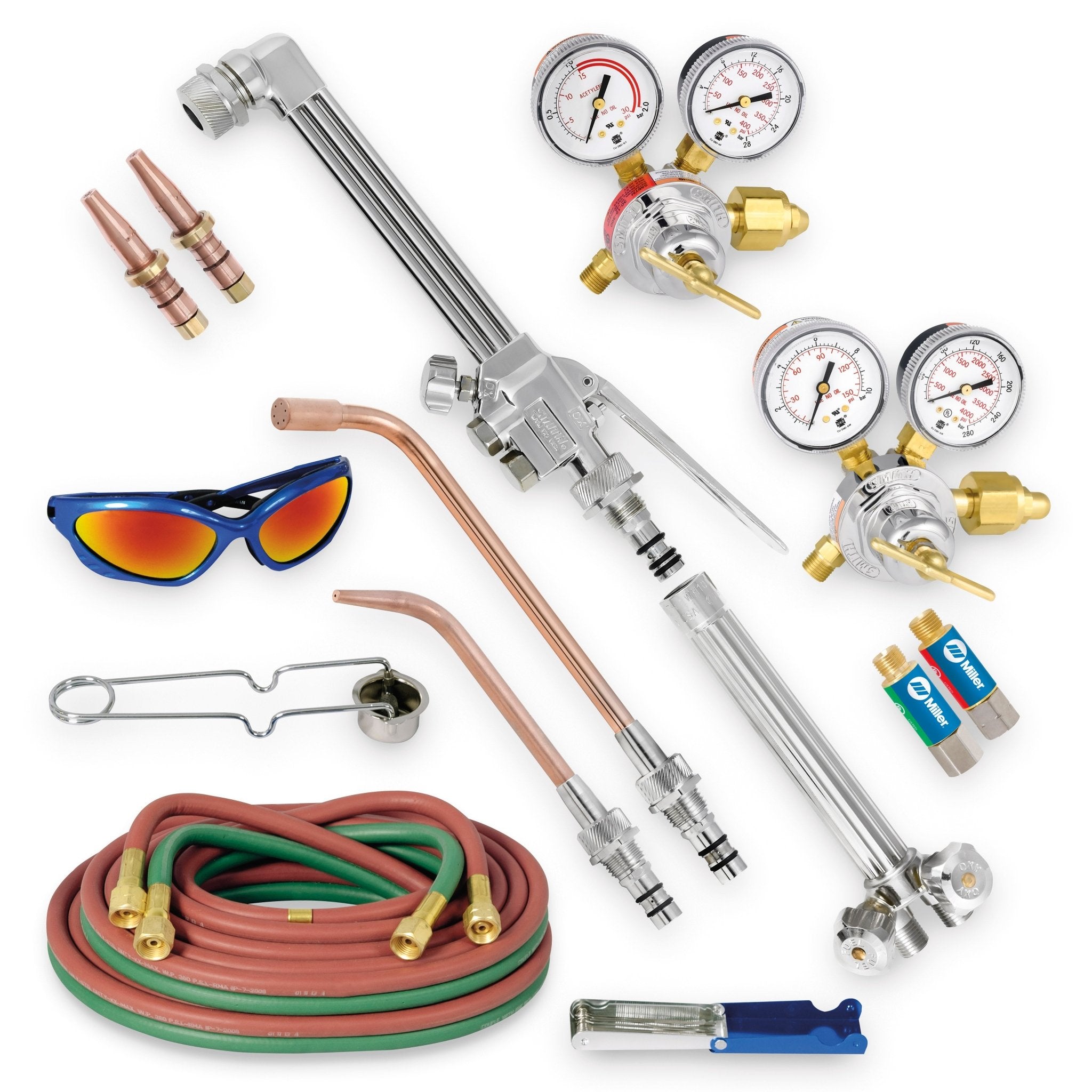

What’s Included (Standard Kit)
-
WH100 Torch Handle
-
MC509 Cutting Attachment
-
Cutting Tips: MC12‑0, MC12‑1
-
Welding Tip: MW205
-
Heating Tip: MT603
-
Oxygen Regulator (30‑100‑540)
-
Acetylene Regulator (30‑15‑300)
-
20 ft Twin Hose (RL935)
-
Torch Mount Flashback Arrestors
-
Safety Glasses
-
Tip Cleaner
-
Friction Lighter
-
Operations Manual
Ideal Use Cases
-
General fabrication shops
-
Maintenance & repair in field or plant settings
-
Metal art, sculpture, and structural work
-
Site welding/cutting operations where portability and flexibility matter
-
Education/training environments requiring reliable yet user‑friendly equipment
Technical Specs Summary
| Parameter |
Spec |
| Max Cutting |
6 in (steel) |
| Max Welding |
⅜ in (0.375 in) |
| Heating Capacity |
~40,125 BTU/hr |
| Fuel |
Acetylene (CGA 300 inlet) |
| Regulator Oxygen |
30‑100‑540 (CGA 540) |
| Regulator Acetylene |
30‑15‑300 (CGA 300) |
| Hose Length |
20 ft twin hose |
| Duty Rating |
Medium / Standard duty |
Why Choose the MBA‑30300?
With its balance of power, safety, and ease of use, the MBA‑30300 stands out for shops or field operations needing a dependable, multi‑purpose oxy‑acetylene outfit. Built with quality components, Smith’s in‑tip mixing and robust design reduce downtime and maintenance. For users who demand both cutting and welding capabilities in a single kit—and value safety and tip longevity—this outfit delivers.
