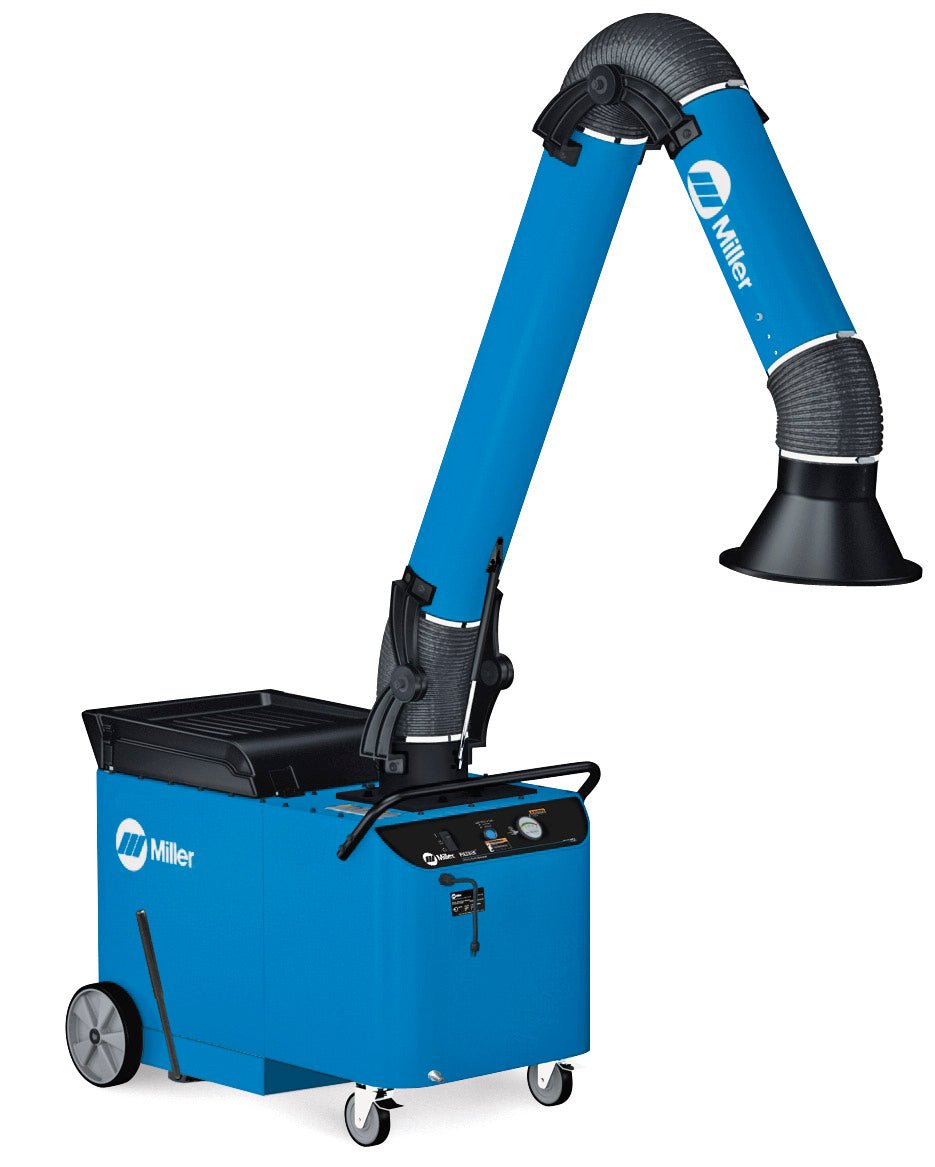

Mobile fume extraction systems designed specifically for welding. The powerful high volume system is ideal for fabrication shops, manufacturing, repair work and training centers where mobility is needed.
What's Included
Mobile Fume Extractor 115 V12 ft. Extraction Arm 8" Diameter
FilTek XL Filter17 ft. Power Cord
Easy-to-Operate Extraction Arm
With external adjustments so air can pass through with less airflow resistance, giving you stronger CFM (airflow). It offers reliable and accurate positioning across the full range of motion of the arm, as well as easy adjustment and maintenance to ensure long-lasting operation. Pre-assembled extraction arms are available in 7-, 10- and 12-foot lengths.
Preassembled Arms
For fast, easy setup
Durable Bellmouth-Shaped Hood
Features a convenient 360 degree rotation for unlimited positioning. One of the largest in the industry, FILTAIR’s extraction hood captures weld fumes at a greater distance from the source than other hood designs. This also means less hood adjustments for longer welds.
FilTek® XL Filter Technology
FilTek® XL Filter Technology is specifically designed for welding fumes. This technology offers a longer filter life - up to 2 times that of treated cellulous filters and superior filtering of up to 95% of weld fume particulate.
Self-Cleaning Mechanism
The self cleaning mechanism is easy to use. Just push button on control panel to activate the pulse cleaning cycle that cleans the filter from the inside out. Weld fume particulate is removed from the filter and safely deposited in the particulate disposal drawer.
Convenient Air Connection
For dry compressed air supply. Note: Compressed air required to operate cleaning mechanism.
Hinged Filter Hatch
Features a convenient locking mechanism for easy access to the filter and tool-free replacement.
Metal Cabinet Design
Ensures long-lasting durability in a manufacturing environment.
Built-In Tool Tray
Provides workers with a convenient area to place their tools without them rolling off of the unit.
Filter Pressure Gauge
With easy-to-read color code indicates when pressure drop increases and cartridge filter needs to be replaced (MWX-D) or cleaned (MWX-S).
115 VAC, 20-Foot (6 m) Power Cord
Enables welders to freely move fume extractor.
Power Switch
Switch is conveniently located for easy on/off access.
Large Rear Wheels
Allow for easy movement over weld cables and from one work cell to another.
Lockable Swivel Casters
Allow users to keep fume extraction system stationary during movement of the arm.
Particulate Disposal Bin
Provides easy and convenient access to empty out collected particulate. Handles release drawer allowing it to slide out.
Processes
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
TIG (GTAW)
Key Specifications
| Title |
FILTAIR® MWX, Self Cleaning Filter, 12 ft. Arm |
| Nominal Airflow |
875 CFM |
| Input Voltage |
110/115/120 V |
| Input Phase |
1-Phase |
| Input Hz |
60 Hz |
| Input Amperage |
11.9 A |
| Motor Horsepower |
1 |
| Number of Arcs |
1 |
| Sound Level at 5 Feet |
70 |
| Extraction Arm Length |
12 ft |
| Weld Fume Extractor Type |
Mobile |
| Warranty |
Miller's True Blue Warranty |
