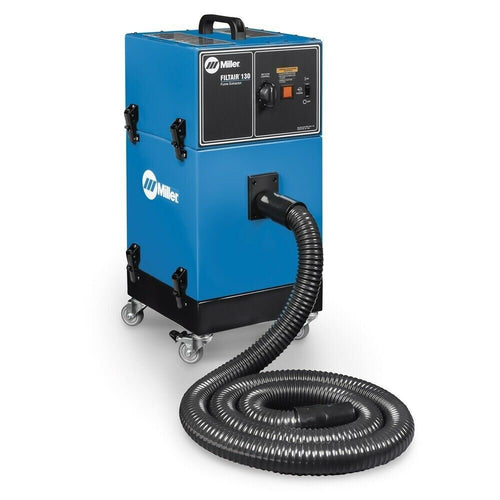

Miller 300595 FILTAIR 130 Portable Weld Fume Extractor

Only 1 left
SKU: 300595
Regular price $2,388.75 USD

Miller 300595 FILTAIR 130 Portable Fume Extractor

Portable fume extraction system designed specifically for welding. This system

is ideal for contractors, maintenance and repair, and light fabrication.


WHAT'S INCLUDED

  • FilTek XL Filter
  • 8-ft. Extraction Hose
  • 20-ft. Power Cord
  • Portable Fume Extractor


Highly Portable

At only 46 pounds (21 kg), the vertical-shaped extraction machine is easy to move around, or be at your side in a workbasket. Includes 20-foot (6m) power cord and 8-foot extraction hose. Add the 17 or 34 foot extraction hose to add portability to the extractor.


Quiet

The FILTAIR® 130 is quiet to provide a safer and more productive work area. At up to 70 percent quieter than some other extractors, the FILTAIR® 130 is only 68.5 dB at 5 feet (1.5m).


FilTek® XL Suface-Loading Filter

FilTek XL surface-loading filter is manually cleanable with dry compressed air, extending its life up to eight times that of conventional filters. Benefits include lower cost of operation and eliminates the need to send extra filters to most jobsites.


Miller® FilTek® XL Filter Technology

FilTek XL Filter Technology is specifically designed for welding fumes. This technology offers a longer filter life - up to 2 times that of treated cellulous filters and superior filtering of up to 95% of weld fume particulate. FilTek XL's surface loading filters vs. competitors depth loading filters gives Miller filters advantages that benefit you including easier and more complete filter cleaning results, longer filter life, and more efficient air flow thru the filter resulting in lower operating costs and stronger suction power for a cleaner work space.


MERV 15 Filter Rating

Filters are rated on a MERV scale, which measures filter efficiency based on particle count. MERV ratings range from 1-16, with 16 being the best at filtering small particles such as those found in weld fumes.


Filter Service Indicator

Filter service indicator alerts the operator when the filter needs to be cleaned to maintain extraction performance and increase filter life.


Particulate Bin

Particulate bin provides easy and convenient access to empty the collected weld fume particulate.


Air Flow Adjustment with Guard

Front-panel-mounted air flow adjustment makes it easy to set the proper amount of extraction when using a funnel nozzle, slotted nozzle, or Bernard™ fume extraction gun.


PROCESSES

Flux Cored (FCAW)

MIG (GMAW)

Stick (SMAW)

TIG (GTAW)


GENERAL SPECIFICATIONS


Title FILTAIR® 130 Portable Fume Extractor
Nominal Airflow 132 CFM
Input Voltage 110/115/120 V
Input Phase 1-Phase
Input Hz 60 Hz
Input Amperage 11 A
Motor Horsepower 1
Number of Arcs 1
Sound Level at 5 Feet 68.5
Portability Handle(s)
Net Width 12 in
Net Height 23 in
Net Length 12 in
Net Weight 46 lbs
Warranty 1 Years

Miller's True Blue Warranty
