Reliable multiprocess engine-driven welder primarily used for Stick welding and creating power. Cost-effective engine-driven welder designed for maintenance and repair operations, construction, field fabrication, farm/ranch and work trucks.
Smooth arcs: Get unparalleled welding performance with 7018 and 6010 stick electrodes. Arcs start easily and create less spatter, delivering more of the productivity you need
Lighter and smaller: The Bobcat 230 weighs less than any other engine-driven welder in its class. It’s over 100 pounds lighter and 13 percent smaller than previous models, so it’s easier to move and takes up less space on trucks.
No arc interference or power spikes: Get full auxiliary power, with no arc interference, for superior weld quality. Jobsite tools can run without interruption, helping you get more done. With an output capability (single phase) of Peak: 11,000 watts, and Continuous: 9,500 watts
120/240 V, 88/44 A, 60 Hz
Easy maintenance: With its intuitive design, the daily maintenance of our Bobcat engine-driven welders is fast and easy. Front panel maintenance displays help you know when your equipment needs to be serviced. And servicing is simple because of:
• Oil checks that can be performed easily through the top of the machine by the
access door
• Toolless panels that allow for quick access
• Single-side fuel fill and oil drain/filter
PROCESSES
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
Hurry buy this machine and claim a $500 Rebate Offer Valid - March 31, 2025 For Full Instructions On How To claim Your Miller Rebate Click Here
KEY SPECIFICATIONS
| Title |

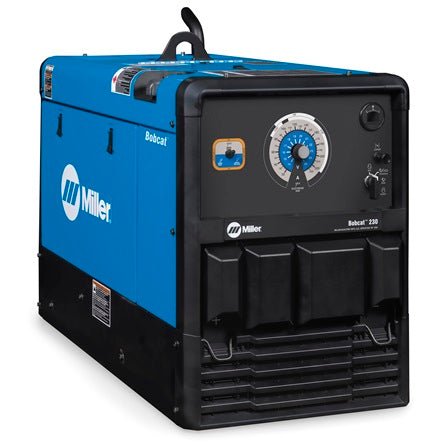

Miller Bobcat 230 Welder Generator (Kohler) 907824 |
| Industries Interests |
Farm and Ranch
Construction and Fabrication |
| Amperage |
20 A - 230 A |
| Weldable Metals |
Stainless Steel
Steel |
| Current Type |
DC |
| Portability |
Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional) |
| Engine Brand |
Kohler |
| Engine Idle Speed |
2300 RPM |
| Engine Weld Speed |
3600 |
| Fuel Tank Size |
11 Gallon |
| Fuel Type |
Gasoline |
| Horsepower |
23.5 hp |
| Weld Output |
CC / CV |
| Rated Output |
CC/DC Stick 230 A at 29.2 V, 100% duty cycle, CV/DC MIG/FCAW 230 A at 25.5 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power |
9500 W |
| Single Phase Auxiliary Peak Power |
11000 W |
| Sound Rating |
64 dB @ idle and 73 dB @ weld |
| Applications |
Fabrication
Industrial Welding
Mobile Fabrication & MRO |
| Net Width |
20.13 in |
| Net Height |
26.5 in |
| Net Length |
37.06 in |
| Net Weight |
376 lbs |
| Warranty |
3 Years
Miller's True Blue Warranty |
