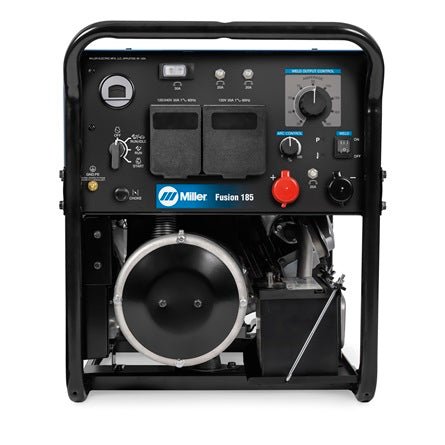

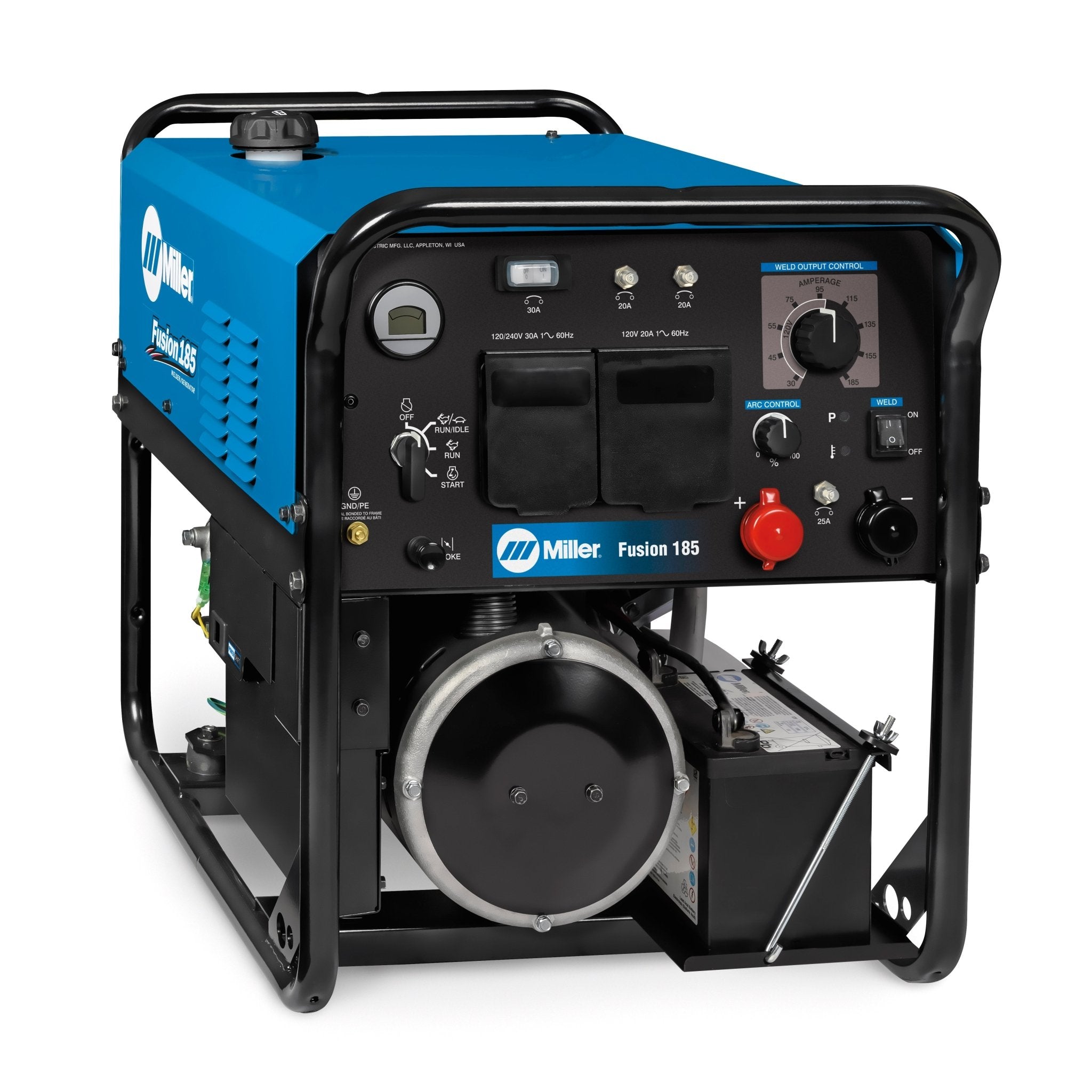

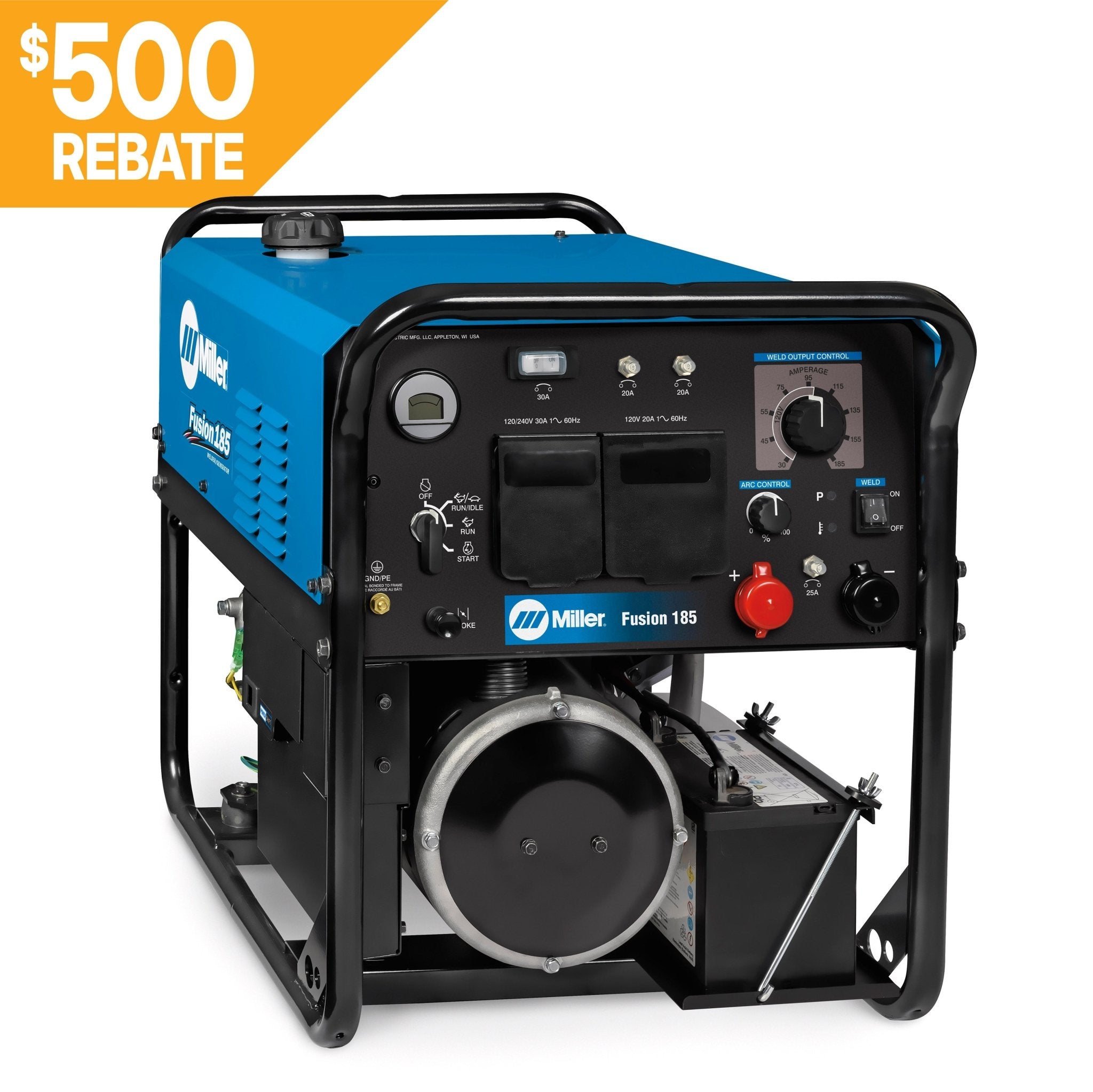

Miller Fusion 185 Engine Driven Welder 907781
Atlas Welding Supply Satisfaction Guarantee!
Regular price
$5,505.00 USD
Regular price
-21%
$6,958.00 USD
Sale price
$5,505.00 USD
Couldn't load pickup availability
The Fusion 185 delivers a smooth, stable arc with PowerShift technology utilizing either engine power or 120/240-volt utility power, providing a unique combination of versatility and productivity in a lightweight package.


Easier to transport
The Fusion engine-driven welder weighs 242 pounds. That’s up to 50 pounds less than similar machines, so moving the Fusion is easier and faster. Less time is spent waiting and more work can get done.
Less rework
Uses inverter technology to deliver a smooth, stable stick arc that’s forgiving of variations in arc length and travel speed, so it’s easier to produce clean welds that meet specifications and avoid the time and expense of rework.
Work-anywhere convenience
PowerShift technology provides weld capabilities using either the Fusion engine or 120/240-volt utility power. You’ll have the confidence of knowing that you can weld virtually anywhere - outdoors and indoors - with just one machine.

MVP
The multi-voltage plug (MVP) make it easy to connect the welder to either 120- or 240-volt power.
Processes
Stick (SMAW)
General Specifications
Title | Fusion 185 |
---|---|
Industries Interests | Farm and Ranch Construction and Fabrication |
Amperage | 30 A - 185 A |
Weldable Metals | Steel |
Input Voltage | 110/115/120 V 220/230/240 V |
Current Type | DC |
Portability | Lift Eye (Optional) Running Gear / Cart (Optional) |
Engine Brand | Kohler |
Engine Idle Speed | 2500 RPM |
Engine Weld Speed | 3,600 |
Fuel Tank Size | 6.25 gal. (23.7 L) |
Fuel Type | Gasoline |
Horsepower | 13.4 hp |
Weld Output | CC |
Rated Output | 185 A at 26.4 V, 20% duty cycle 110 A at 24.4 V, 100% duty cycle |
Single Phase Auxiliary Continuous Power | 6200 W |
Single Phase Auxiliary Peak Power | 6500 W |
Applications | Mobile Fabrication & MRO |
Warranty | 3 Years Miller's True Blue Warranty |
