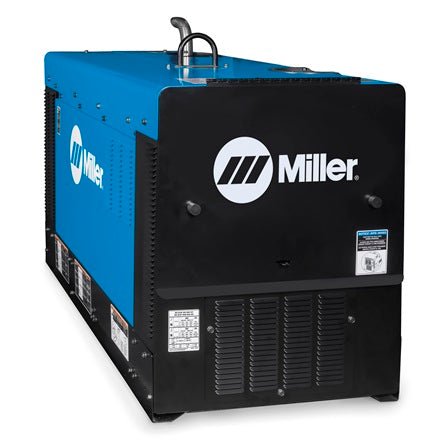

Miller Big Blue 450 Duo CST (Mitsubishi) Diesel Welder 907866
Regular price
$29,442.00 USD
Couldn't load pickup availability
Share This Product
The Big Blue 450 Duo CST is a rugged, compact, fuel efficient diesel engine-driven welder that provides 2 superior arcs in one economical package.
Features:
Quiet Operation
At just 72.2 decibels at 23 feet (7 m), it's quieter than most single-operator models, improving jobsite communication and safety.
Adaptive Hot Start™ For Stick Arc Starts
Automatically increases the output of a weld should the start require it. Prevents the electrode from sticking and creating an inclusion.
Superior Stick Arc Performance
Even on the difficult-to-run electrodes like E6010
High Efficiency
Three-Phase, rotating-field auxiliary power unit requires less fuel and horsepower to operate.
Remote Amperage Control
Provided through 14-pin receptacle on front of the machine. This permits use of standard and wireless remote amperage control devices.
Multi-function Fuel Gauge
Displays fuel level and engine hours, and can be customized to set oil change interval reminders. In the case of high coolant temperature, low oil pressure, or low fuel level, the engine will shut down to prevent damage, or make restarting easier.
Heavy-Duty Low-Speed Mitsubishi S4L2 Industrial Diesel Engine
Used in industrial applications around the world, the S4L2 is designed to run 10,000 hours before major overhaul. Backed by worldwide support and service.
Vandalism Lockout Kit
Lockable hinged steel panel protects front control panels and ignition switch.
Processes:
- Air Carbon Arc Cutting and Gouging (CAC-A)
- Stick (SMAW)
- TIG DC (GTAW-DC)
Product Literature Pdf
ED/5.5 Big Blue 450 Duo CST - English
General Specifications
| Title | Miller Big Blue® 450 Duo CST - 907866 |
|---|---|
| Industries Interests | Construction and Fabrication Pipeline |
| Amperage | 5 A - 450 A |
| Weldable Metals | Stainless Steel Steel |
| Rated Carbon Diameter | 3/16 in (4.8 mm) |
| Current Type | DC |
| Max Open Circuit Voltage | 77 VDC |
| Portability | Lift Eye (Standard) Trailer (Optional) |
| Cold Weather Starting Aids | Glow Plugs |
| Engine Brand | Mitsubishi |
| Engine Compliance | T4F |
| Engine Idle Speed | 1800 RPM |
| Engine Weld Speed | 1800 RPM |
| Fuel Tank Size | 10 gal. (37.8 L) |
| Fuel Type | Diesel |
| Horsepower | 24.7 hp |
| Weld Output | CC |
| Rated Output | Separate (Dual Outputs) 175 A at 27 V, 100% duty cycle,Paralleled (Single Output) 350 A at 27 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 8900 W |
| Single Phase Auxiliary Peak Power | 10500 W |
| Sound Rating | 71 dB (96 Lwa) |
| Applications | Fabrication Field Welding |
| Net Width | 58 in |
| Net Height | 34 in |
| Net Length | 28 in |
| Net Weight | 1064 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
