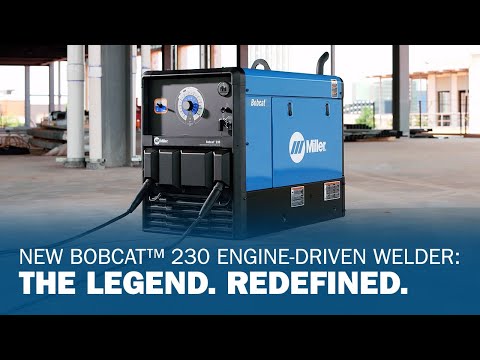

Reliable multiprocess engine-driven welder primarily used for Stick welding and creating power. Cost-effective engine-driven welder designed for maintenance and repair operations, construction, field fabrication, farm/ranch and work trucks.
Separate weld and auxiliary power
Full auxiliary power at any setting.
Exceptional Arc Performance
Easy arc starts and less spatter.
Easier mobility and uses less truck space and payload
Over 100 pounds lighter and 13 percent smaller than previous models.
Single knob adjustment for quick and precise setup.
With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.
PROCESSES
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
Product Literature
ED/4.45 Bobcat 230 - English
ED/4.45S Bobcat 230 - Spanish
Key Specifications
Title

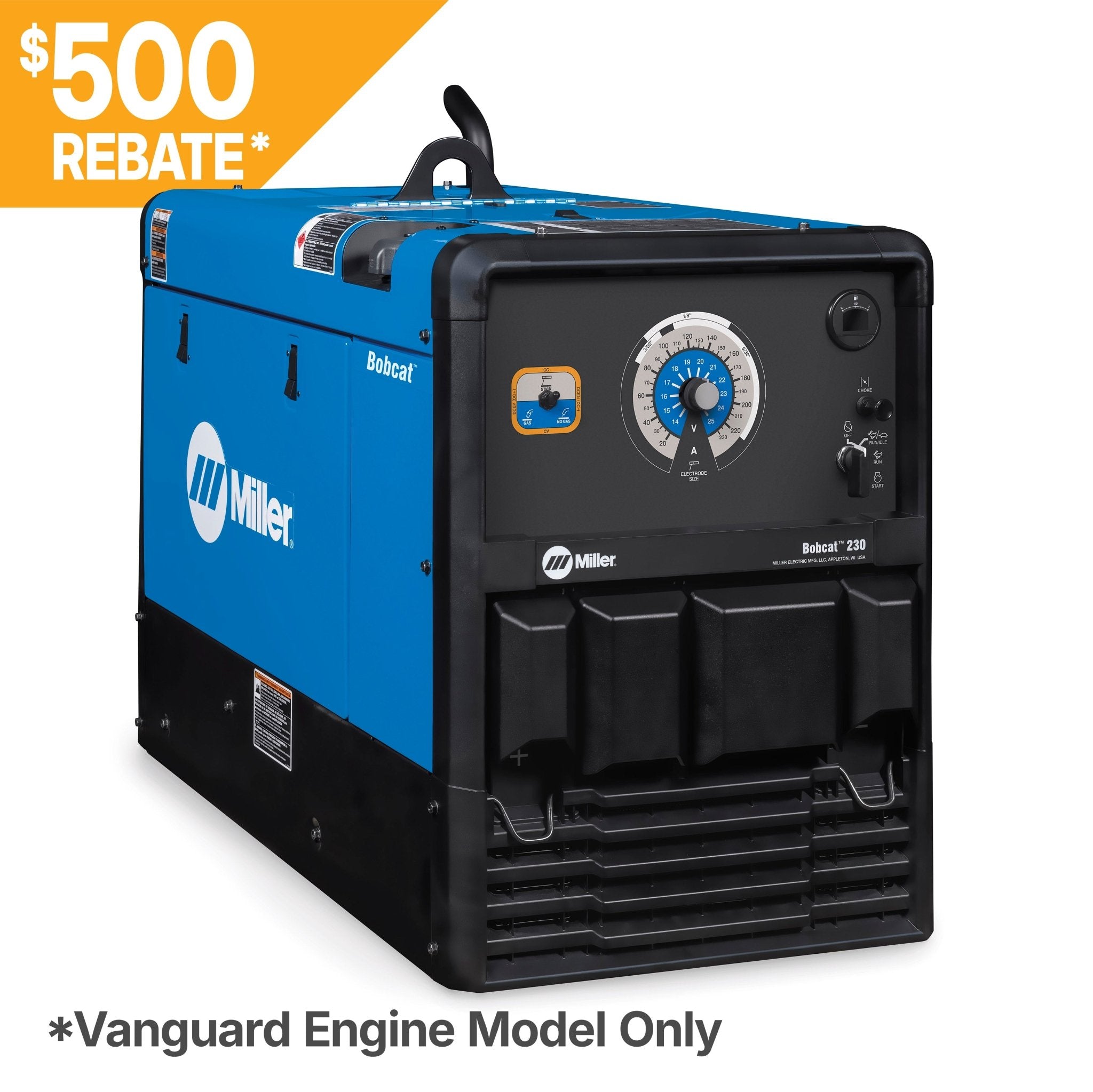

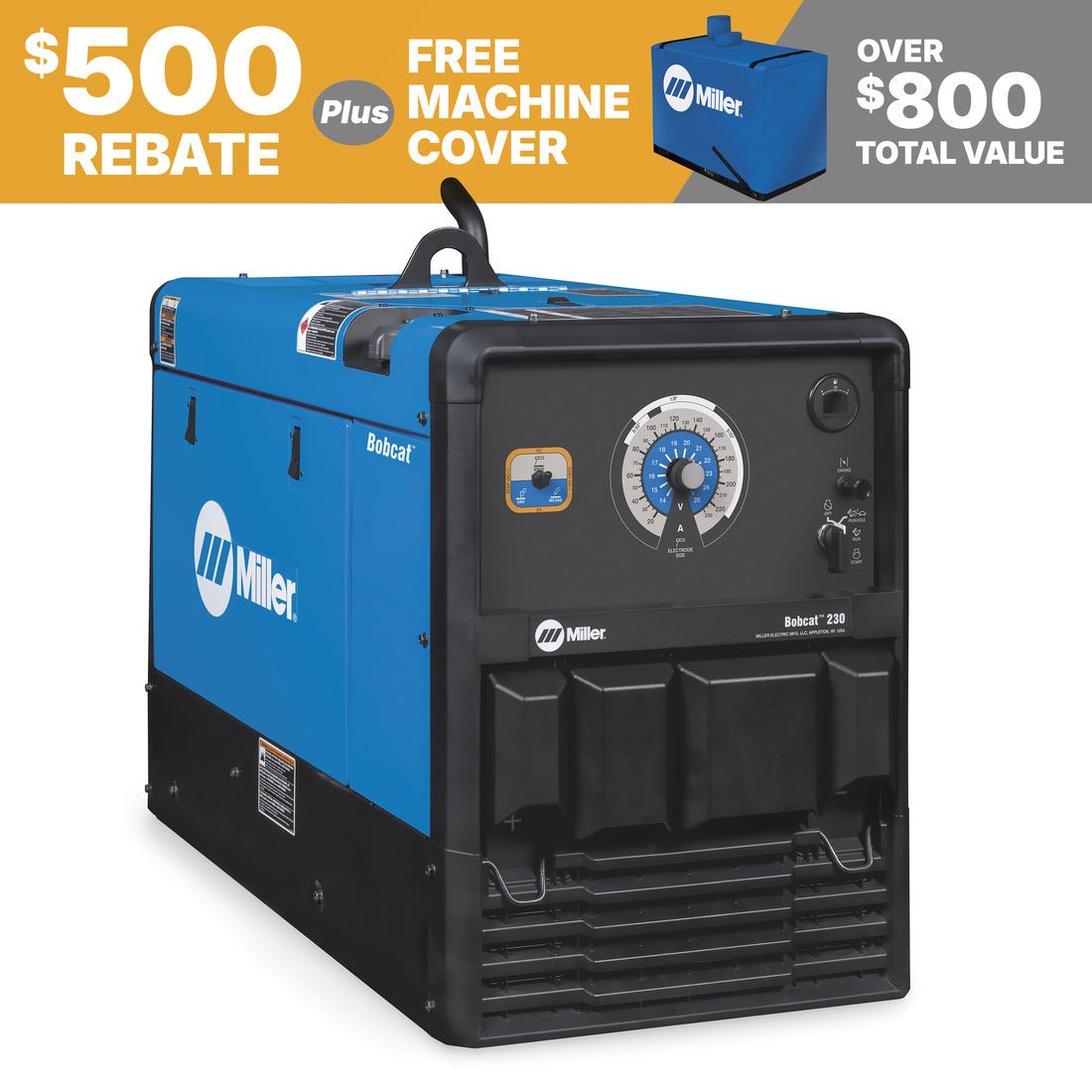

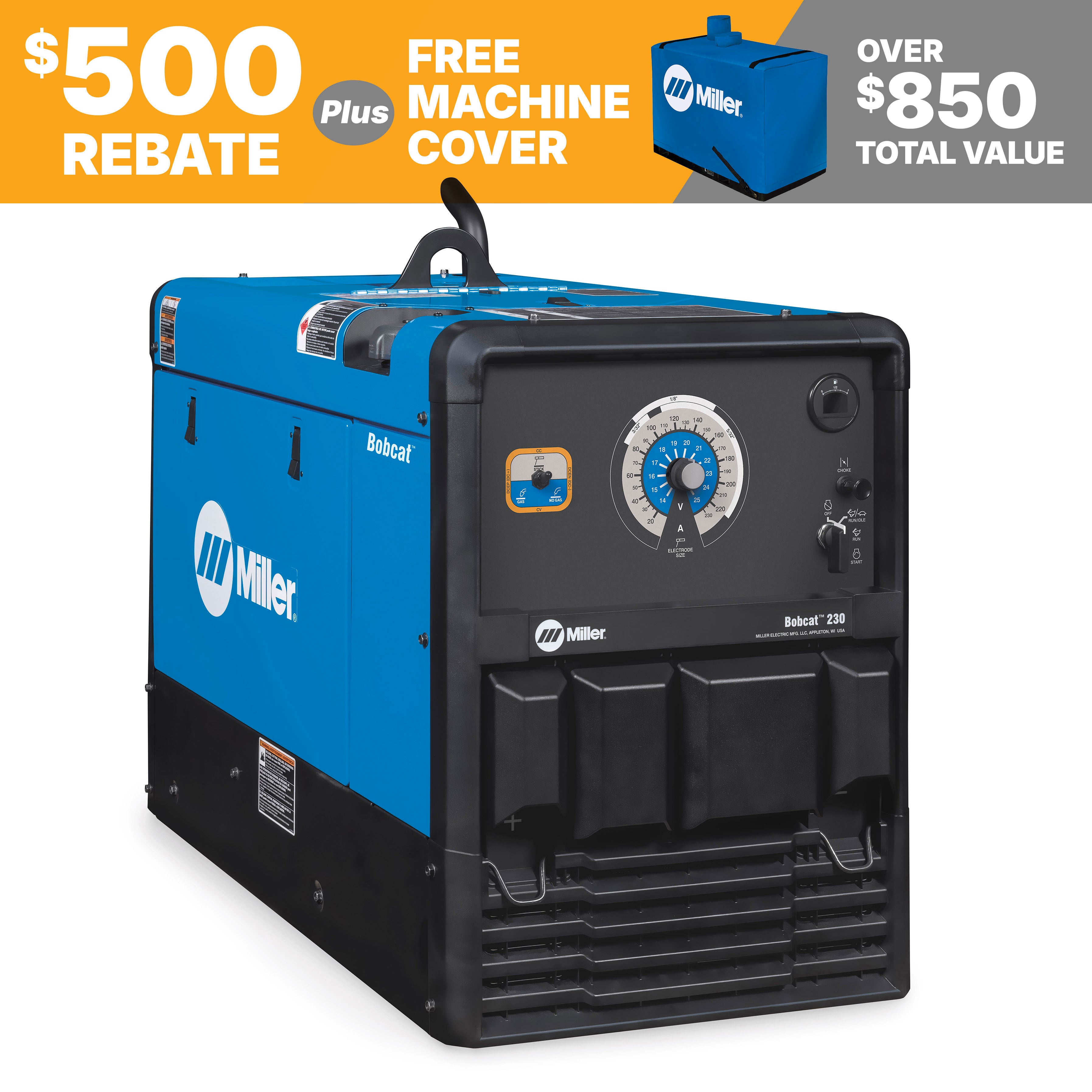

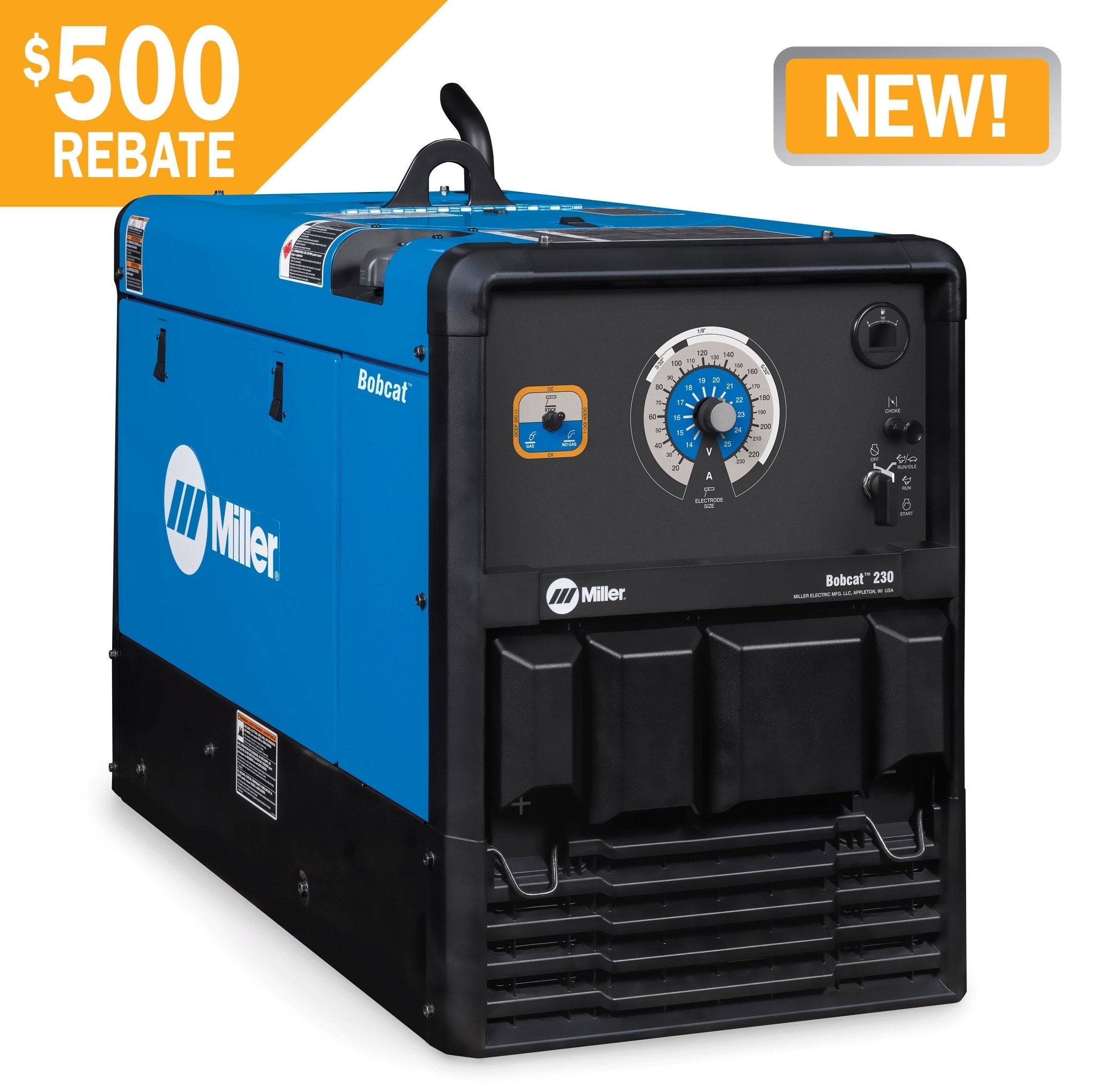

Bobcat™ 230 (Vanguard)
Applications
Fabrication
Industrial Welding
Mobile Fabrication & MRO
Industries
Farm and Ranch
Construction and Fabrication
Weldable Metals
Stainless Steel
Steel
Portability
Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)
Engine Idle Speed
2400 RPM
Rated Output
CC/DC Stick 230 A at 29.2 V, 100% duty cycle,
CV/DC MIG/FCAW 230 A at 25.5 V, 100% duty cycle
Single Phase Auxiliary
Continuous Power - 9500 W
Peak Power - 11000 W
Sound Rating
64 dB @ idle and
73 dB @ weld
