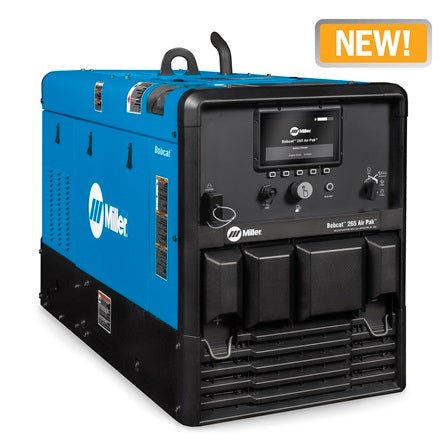

Miller Bobcat 265 Air Pak w/Battery Charge/Crank Assist 907876
Regular price
$14,000.00 USD
Couldn't load pickup availability
Share This Product
Powerful all-in-one Machine designed for repair and construction with multiprocess weld quality, auxiliary power, air compressor and battery charge/crank assist.
Easy to Use
Digital interface speeds machine setup and makes it less complicated.
Exceptional Arc Performance
Easy arc starts and less spatter.
Rotary Screw Compressor
Quiet and durable rotary-screw compressor delivers 30 CFM at 80-160 psi of air at 100% duty cycle while rated at 104° F. It offers an average of three times the service life of traditional reciprocating compressors. Produces air when you need it; no more down time waiting for an external tank to fill. Airflow can be selected depending on tool requirements. Front panel air pressure adjustment makes it simple to dial in the correct air pressure for specific applications (80-160 psi)
Easy Maintenance
With its intuitive design, the daily maintenance of our Trailblazer engine-driven welder is fast and easy.
Separate weld and auxiliary power
Full auxiliary power at any setting.
Battery charge/crank assist
Machine provides up to 150 amps of DC power to quickly charge 12- and 24-volt batteries. Jobsite equipment with weak batteries can get up to 300 amps of crank assist power.
Processes
- Air Carbon Arc Cutting and Gouging: (CAC-A)
-
Pulsed TIG: (GTAW-P)
-
Flux Cored: (FCAW)
-
Stick: (SMAW)
-
MIG: (GMAW)
Not Included
- Weld leads
Product Literature
ED/4.48 Bobcat 265 Air Pak - English
General Specifications
| Title | Miller Bobcat™ 265 Air Pak™ w/Battery Charge/Crank Assist |
|---|---|
| Industries Interests | Construction and Fabrication Heavy Equipment |
| Amperage | 20 A - 265 A |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Rated Carbon Diameter | 3/16 in (4.8 mm) |
| Current Type | DC |
| Max Open Circuit Voltage | 107 VDC |
| Portability | Lift Eye (Standard) |
| Engine Brand | Kohler |
| Engine Idle Speed | 2400 RPM |
| Engine Weld Speed | 3,600 rpm |
| Fuel Tank Size | 11 Gallon |
| Fuel Type | Gasoline |
| Horsepower | 27 hp |
| Weld Output | CC/CV |
| Rated Output | CC/DC Stick/TIG 244 A at 29.8 V, 100% duty cycle, CV/DC MIG/FCAW 260 A at 27 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 9500 W |
| Single Phase Auxiliary Peak Power | 11000 W |
| Sound Rating | 69.5 dB @ 150 amps and 75.3 dB @ max weld |
| Compressor Brand | Rotary-Screw Compressor |
| Compressor Free Air Delivery | 30 cfm (0.85 m3 /min.) at 3,600 rpm / 28 cfm (0.79 m3 /min.) at 3,000 rpm |
| Compressor Working Pressure | 80-160 psig |
| Compressor Duty Cycle | 100% |
| Compressor Automatic Shutdown | High pressure (160 psi) |
| Applications | Aluminum Welding Fabrication Field Welding Industrial Welding |
| Battery Charge | 10-150 A |
| Crank Assist | 300 A, 12/24 V |
| Warranty | 3 Years Miller's True Blue Warranty |
