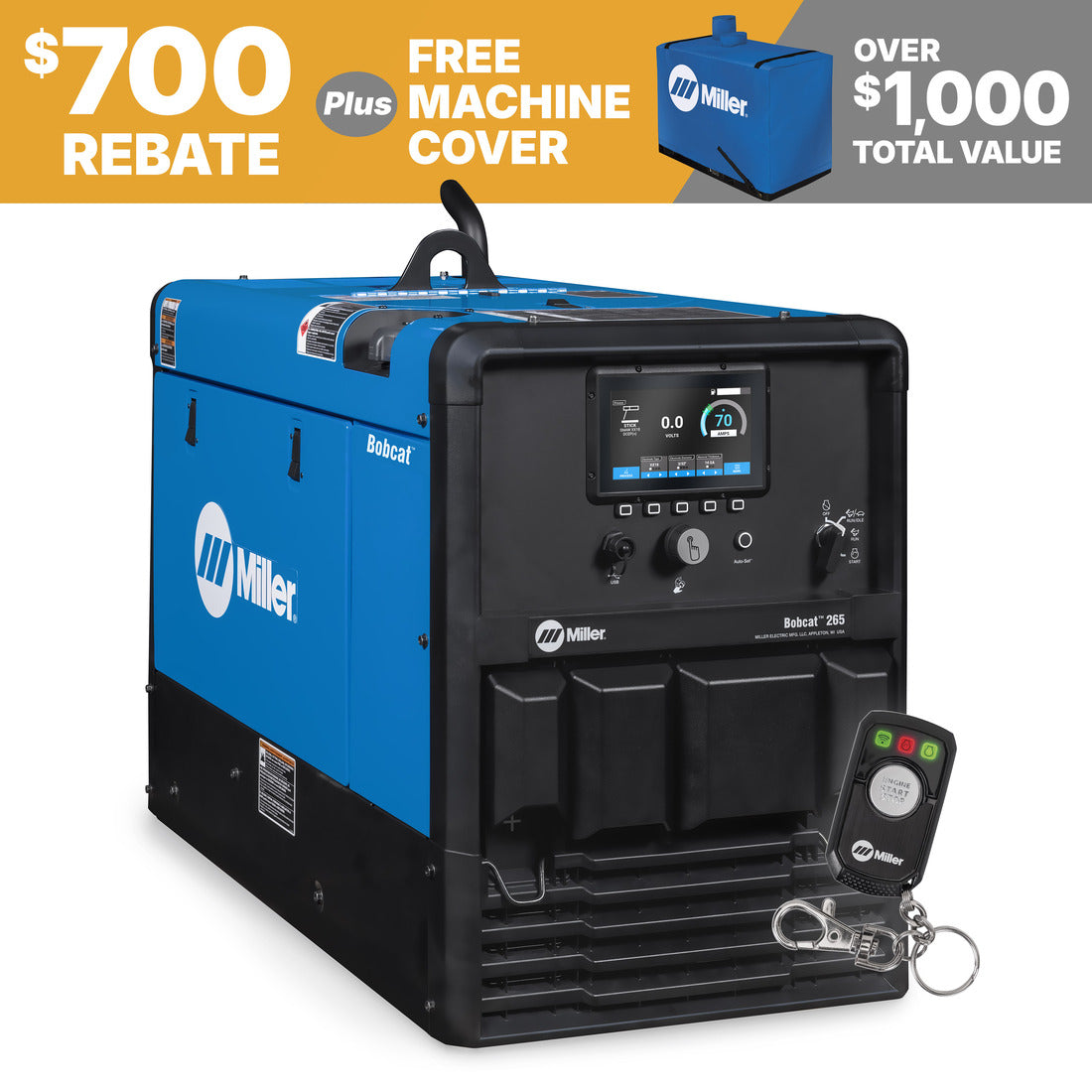

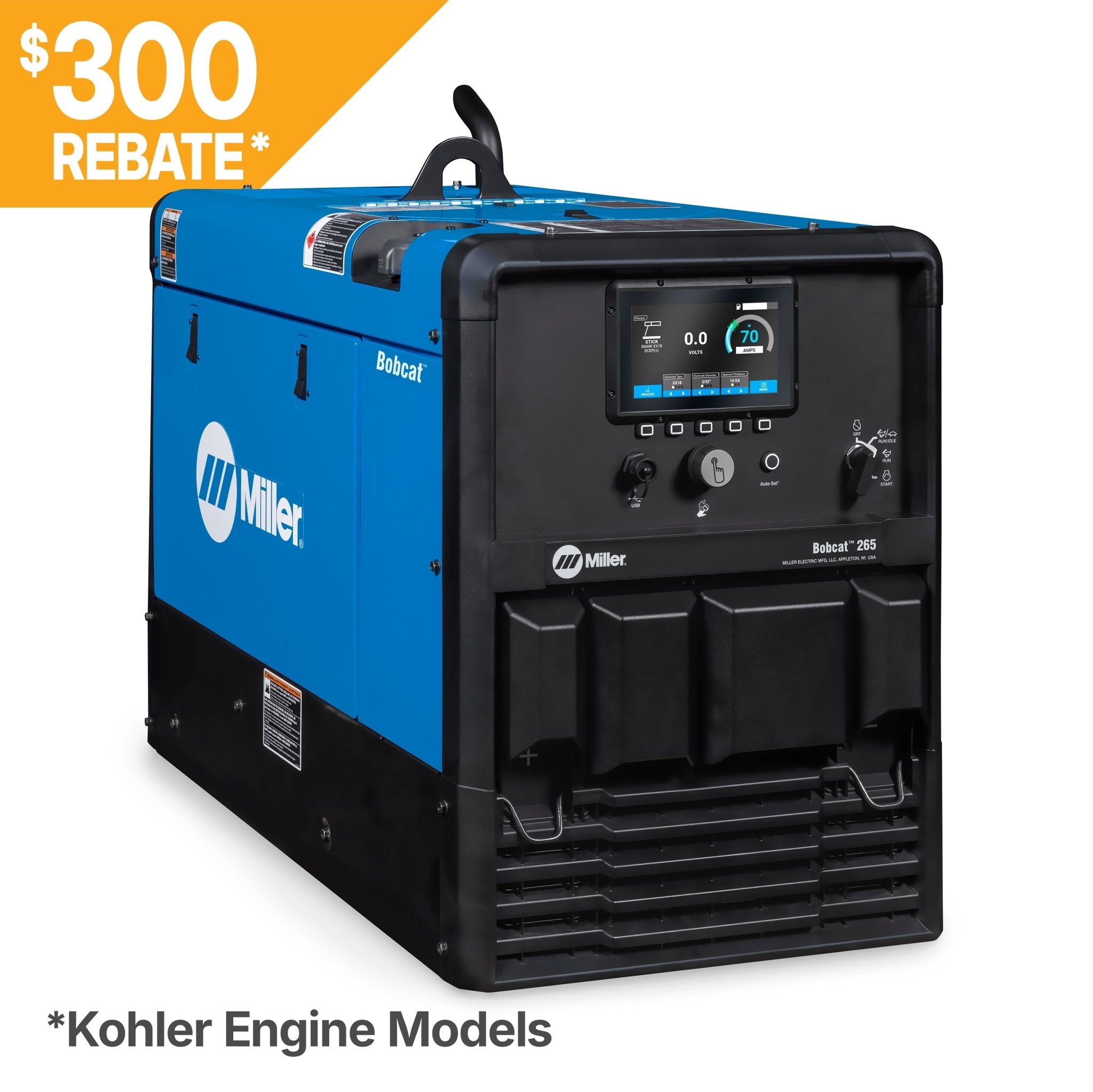

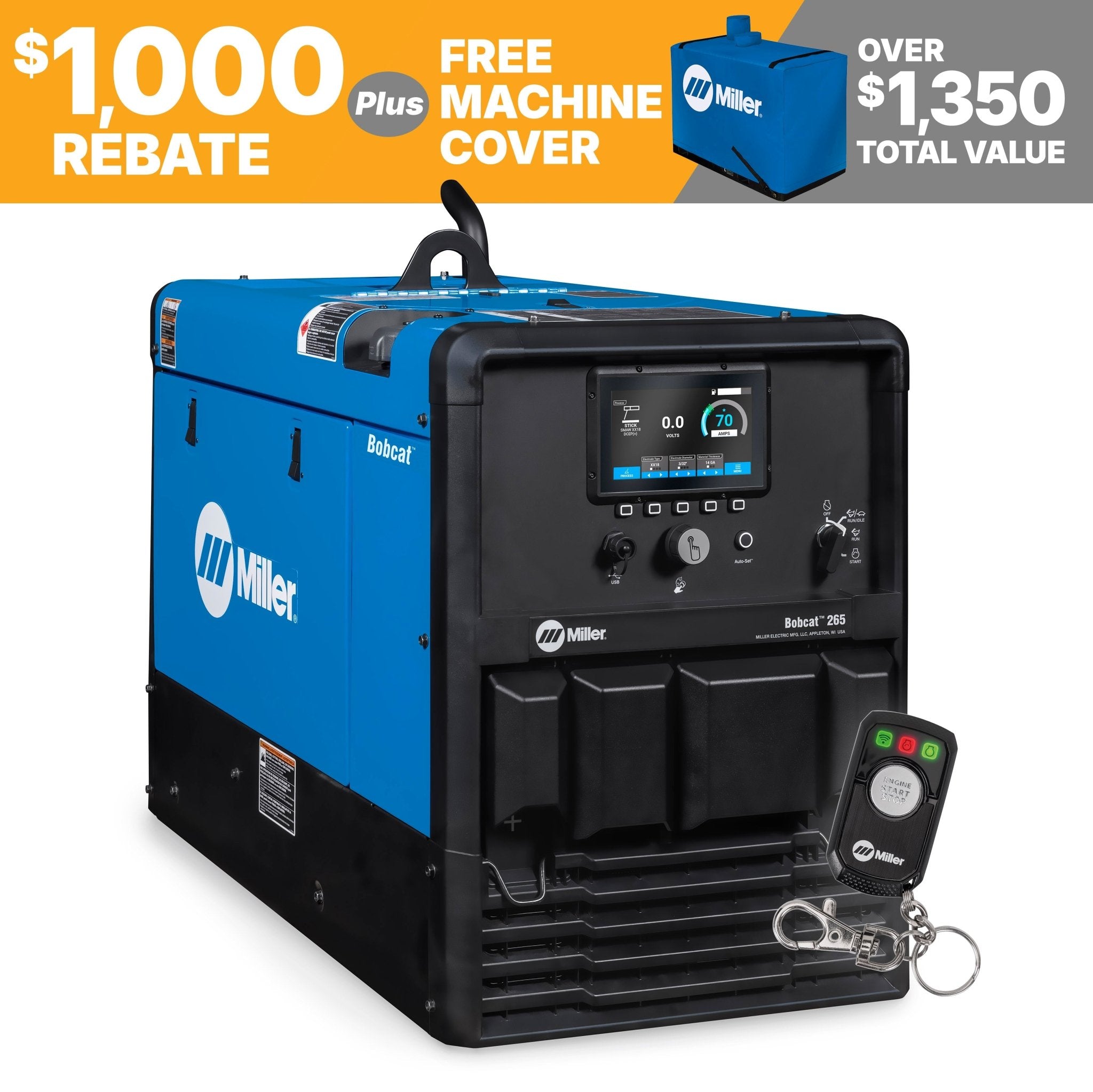

Miller Bobcat 265 Welder Generator Kohler Electric fuel Pump With Remote 907826003
Regular price
$7,615.00 USD
Couldn't load pickup availability
Share This Product
Reliable, easy to use and more capable engine-driven welder great for stick and flux-cored welding. Designed for maintenance/repair operations, construction, and auxiliary power use.
Not Included
- Weld leads
Easy to Use
Digital interface speeds machine setup and makes it less complicated.
Separate weld and auxiliary power
Full auxiliary power at any setting.
Remote Start/Stop
Easily turn your Bobcat machine on and off remotely, so it only runs when you need it.
Exceptional Arc Performance
Easy arc starts and less spatter.
Easier mobility and uses less truck space and payload
Over 100 pounds lighter and 13 percent smaller than previous models.
Easy Maintenance
With its intuitive design, the daily maintenance of our Bobcat engine-driven welder is fast and easy.
PROCESSES
Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
TIG DC (GTAW-DC)
GENERAL SPECIFICATIONS
| Title | Miller Bobcat 265 Welder Generator Kohler Electric fuel Pump With Remote 907826003 |
|---|---|
| Industries Interests | Heavy Equipment Construction and Fabrication |
| Amperage | 20 A - 265 A |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Rated Carbon Diameter | 3/16 in (4.8 mm) |
| Current Type | DC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Engine Brand | Kohler |
| Engine Idle Speed | 2300 RPM |
| Engine Weld Speed | 3600 |
| Fuel Tank Size | 11 Gallon |
| Fuel Type | Gasoline |
| Horsepower | 23.5 hp |
| Weld Output | CC / CV |
| Rated Output | CC/DC Stick/TIG 265 A at 27 V, 100% duty cycle, CV/DC MIG/FCAW 265 A at 27 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 9500 W |
| Single Phase Auxiliary Peak Power | 11000 W |
| Sound Rating | 64 dB @ idle and 73 dB @ weld |
| Applications | Aluminum Welding Fabrication Field Welding Industrial Welding Mobile Fabrication & MRO Outdoor Stainless Steel Structural Welding |
| Net Width | 20.13 in |
| Net Height | 26.5 in |
| Net Length | 37.06 in |
| Net Weight | 382 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
