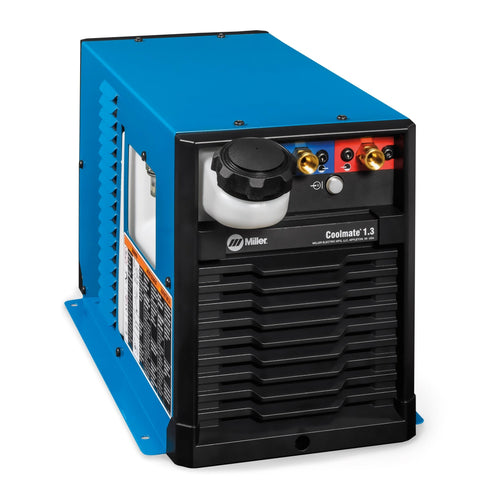

Miller Coolmate 1.3 115V CE TIG Cooler - Cooling System 301616 [replaces 300972]
Light-industrial 1.3-gallon cooler designed for water-cooled torches on power sources rated up to 280 amps.*
- Designed to integrate with Dynasty 210/300 and Maxstar 280 models
- Compact horizontal design allows stacking and convenient mounting
- Weighs 43 pounds (20 kg) dry
- Equipped with power-on indicator light on front panel
- Filter and coolant filling spout are conveniently located for easy access
- Fluid level sight window
- Polyethylene-molded coolant tank and filler spout are rustproof
- Factory-set pressure-relief valve (55 psi) maintains consistent pressure during operation
- Thermally protected 1/4 hp motor guards against overheating
- Efficient fin-and-tube heat exchanger
- Brass-body positive-displacement rotary vane pump provides consistent coolant flow and pressure rating with long pump-life expectancy
| Title |
Coolmate® 1.3 115 V, CE |
| Max Cooling Capacity |
3400 |
| Input Hz |
60 Hz |
| Rated Cooling Capacity |
1330 |
| Tank Capacity |
4.9 l |
| Warranty |
1 Years
Miller's True Blue Warranty
|
