Millerve Dirsion 180 AC/DC TIG Welder 907627

In stock
SKU: 907627
Regular price $2,825.00 USD



Receive A $400 Rebate With Miller Holiday Savings!

Offer Valid Through Dec 30 2023

This Welder is perfect for the personal user, this AC/DC TIG machine upgrade has both 120V and 240V input power capability.

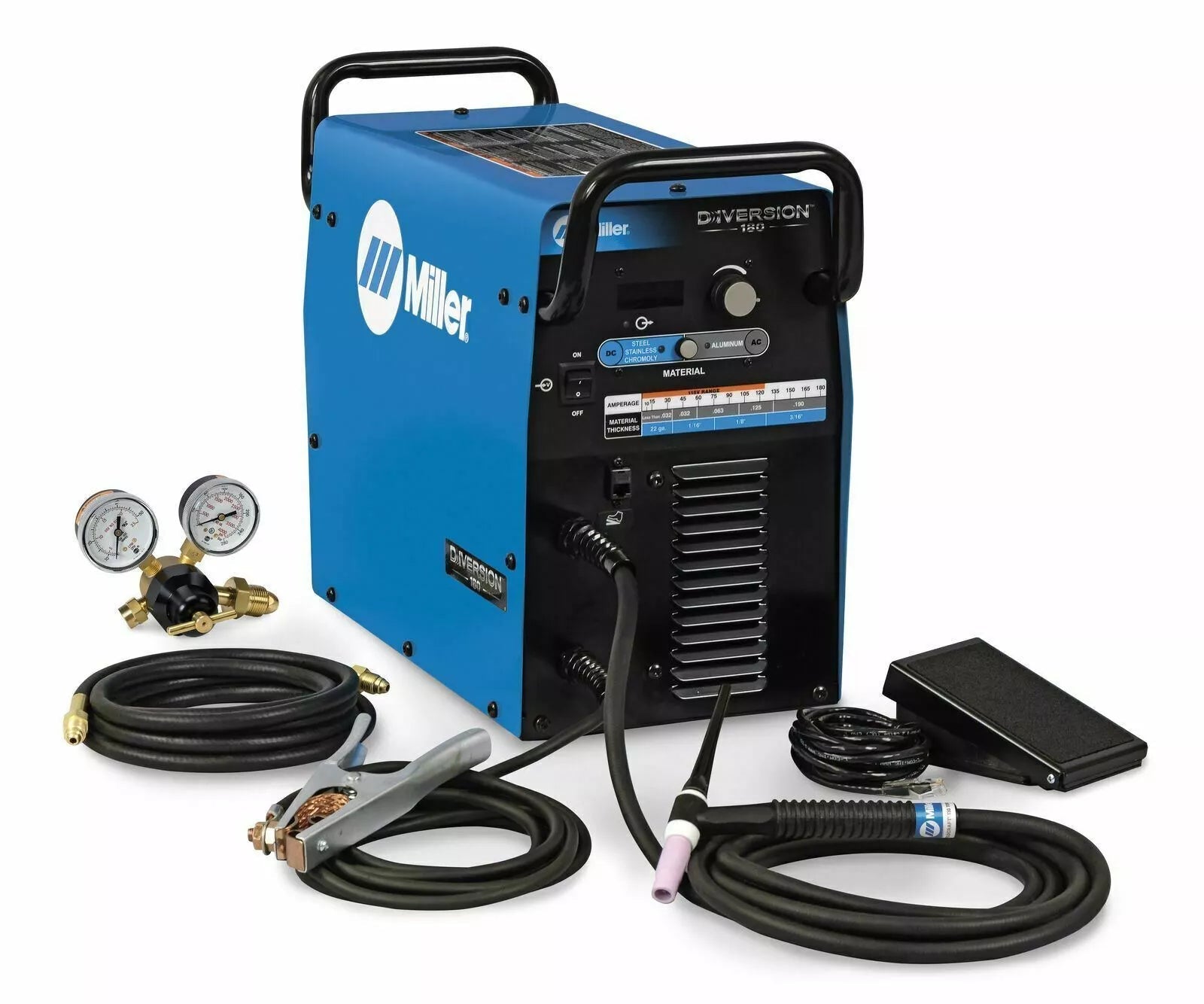

WHAT'S INCLUDED

  • Diversion™ 180

  • Regulator/flow gauge and gas hose

  • RFCS-RJ45 remote foot control (300432)

  • 8 ft. (2.4 m) primary cord with MVP™ plugs for 120 V (219261) and 240 V (219258)

  • 12.5 ft. (3.8 m) Weldcraft™ A-150 TIG torch

  • 12 ft. (3.7 m) work cable with clamp



Easy-to-Understand Operator Interface

It's as easy as "1, 2, 3" to set your machine and start welding! 1. Power-up2. Select material type3. Set material thickness range   We've also added a digital display so you know exactly what your settings are.



Use It On 120 Or 240 Volt Input Power

Miller's Multi Voltage Plug (MVP™) allows you to connect to common 120 or 240 V power receptacles without the use of any tools. Simply chose the plug that fits the receptacle and connect it to the power cord.

Utilizes Latest Inverter Technology

By utilizing an inverter-based AC/DC power source, a more efficient (less energy is used) and consistent welding arc is provided compared to older transformer based TIG machines.



Torch Designed for Maximum Operator Comfort

The package comes standard with a Diversion Series foot control and the Weldcraft A-150 TIG torch. This 150 amp, air-cooled torch features a compact and durable design ideal for both the professional and hobbyist welder. The Diamond Grip head design has ergonomic contact points for thumb and fingers, providing a more comfortable grip.



Light Weight = Portability

Whether it's in the shop, garage or at the race track, at only 50 lbs it can be taken anywhere. You can't do that with those heavy transformer machines!



Reduce Noise, Maintenance and Operating Costs.

Our Fan-On-Demand™ cooling system only operates when needed. This cuts down on fan noise, along with reducing power consumption and contaminants drawn into the machine.

Eliminate Waste of Expensive Shielding Gas

Our Auto-Postflow feature optimizes postflow time based on welding amperage. This allows for proper shielding of both the weld end zone and electrode every time without waste of gas or need for adjustment.



Dependable Arc Starts

Provides HF, non-contact arc starting to eliminate tungsten and material contamination time after time.


PROCESSES

TIG (GTAW)

TIG AC (GTAW-AC)

TIG DC (GTAW-DC)


GENERAL SPECIFICATIONS

Title

Diversion™ 180 TIG Welder

Industries Interests

Welding Education and Training

Material Thickness

Aluminum 0.030 in. (0.75 mm) - 3/16 in. (4.8 mm)
Steel 0.025 in. (0.6 mm) - 3/16 in. (4.8 mm)

Weldable Metals

Aluminum
Stainless Steel
Steel

Input Voltage

110/115/120 V
208 V
220/230/240 V

Input Phase

1-Phase

Input Hz

50/60 Hz

Current Type

AC / DC

Max Open Circuit Voltage

80 VDC

Amperage Min

10 A

Amperage Max

180 A

Portability

Handle(s)
Running Gear / Cart (Optional)

Weld Output

CC

Net Width

9.875 in

Net Height

17 in

Net Length

23.875 in

Net Weight

50 lbs

Warranty
