Miller

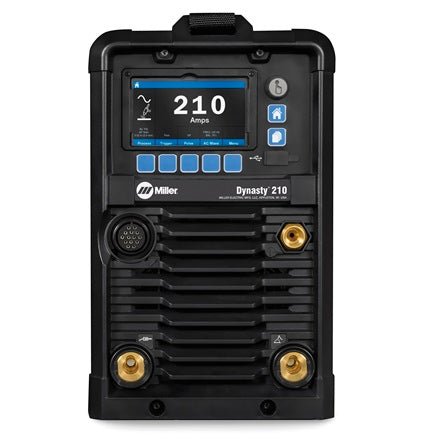

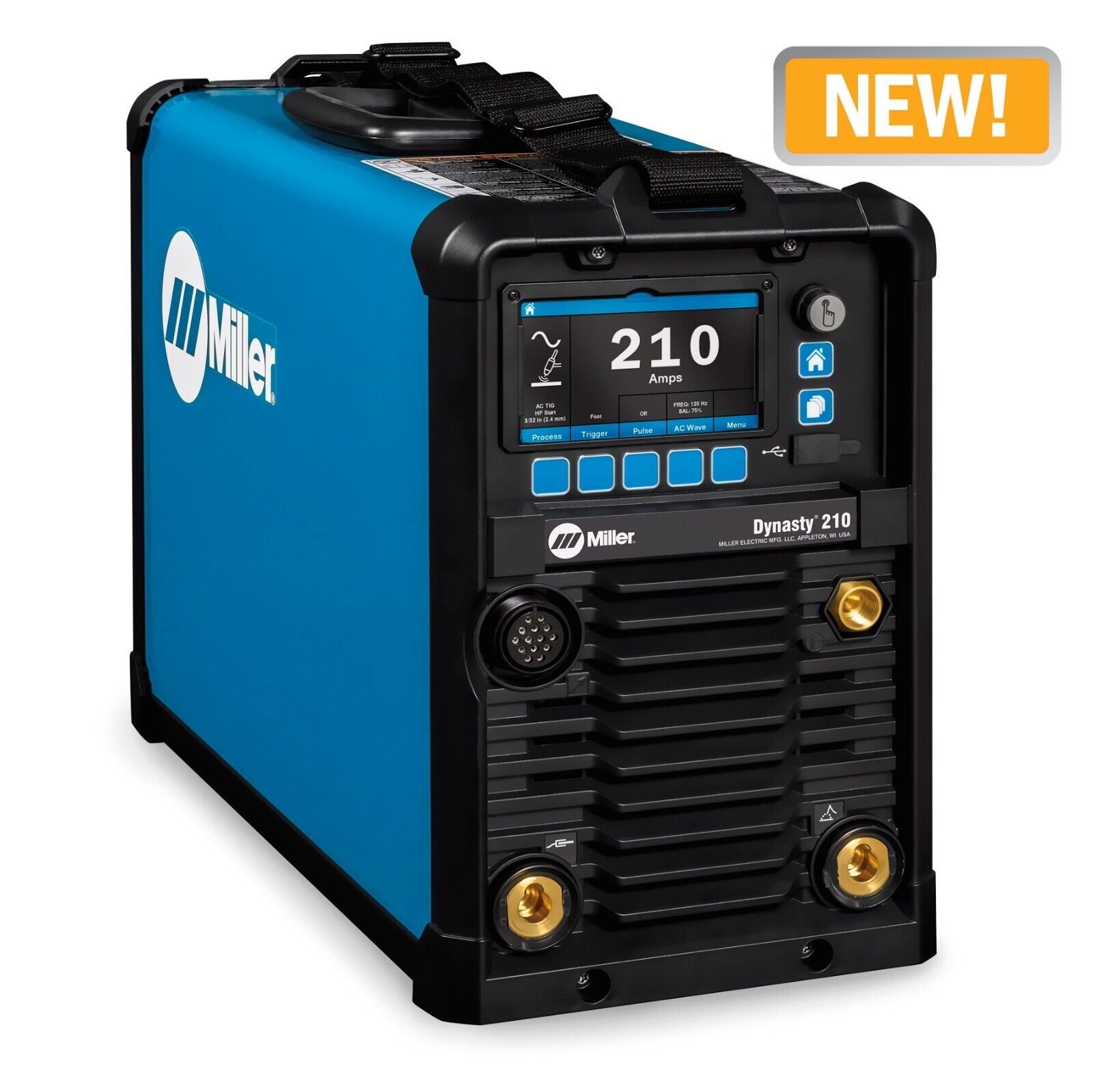

Miller Dynasty 210 TIG Welder 120-480V CPS 907816001

In stock
SKU: 907816001 UPC: 715959623193
Atlas Welding Supply Satisfaction Guarantee!
$6,942.00 USD

The Dynasty 210 Series combines inverter technology and advanced features. Weighing only 50 pounds, it can weld up to 1/4 in. thick material and offers the most flexible AC/DC TIG/Stick power supply in the welding industry.

What's Included

Dynasty® 2108 ft (2.4 m) primary cord
Adjustable Shoulder Strap(2) 50 mm Dinse style connectors
Intuitive Interface LCD Display
Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.   Learn More

Program Memory
Allows easy naming, saving and recalling of favorite weld settings.

Pro-Set Feature (professional settings)
This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.   Learn More

Locks and Limits
Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).   Learn More

QuietPulse™
QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.   Learn More

USB Port
Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.

Stick Features
Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.

AC Frequency Control
Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.   Learn More

Auto-Line™ Technology
Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.   Learn More

Processes

Stick (SMAW)
TIG (GTAW)
TIG AC (GTAW-AC)
TIG DC (GTAW-DC)

Key Specifications

Title Dynasty® 210 120-480 V, CPS
Applications Aluminum Welding
Welding Projects
Industries Shipbuilding
Racing
Farm and Ranch
Manufacturing
Heavy Equipment
Railcar
Aerospace
Construction and Fabrication
Material Thickness Aluminum 0.012 in. (0.3 mm) - 1/4 in. (6.4 mm)
Steel 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm)
Weldable Metals Aluminum
Specialty Metals
Stainless Steel
Steel
Current Type AC / DC
Max Open Circuit Voltage 80 VDC
Amperage Min 1 A
Amperage Max 210 A
Welding Mode CC
Portability Handle(s)
Running Gear / Cart (Optional)
Strap
Weld Output CC
Input Voltage 110/115/120 V
208 V
220/230/240 V
380/400 V
460/480 V
Input Phase 1- and 3-Phase
Input Hz 50/60 Hz
Net Width 8.5 in
Net Height 13.88 in
Net Length 21.88 in
Net Weight 50 lbs
Warranty 3 Years
Miller's True Blue Warranty
