Miller Maxstar 161 S Stick Welder 907709

In stock
SKU: 907709
Regular price $1,429.00 USD

Best-of-class - provides maximum portability and performance in the most compact Stick package in the industry. Packs dependability and performance all in one machine.

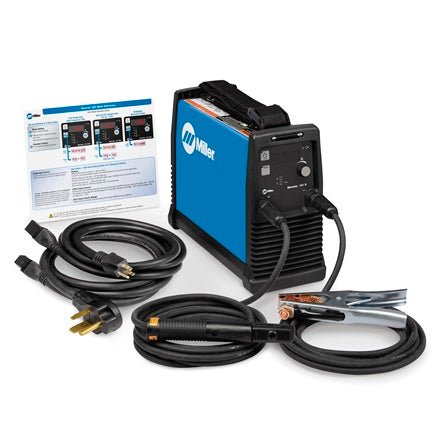

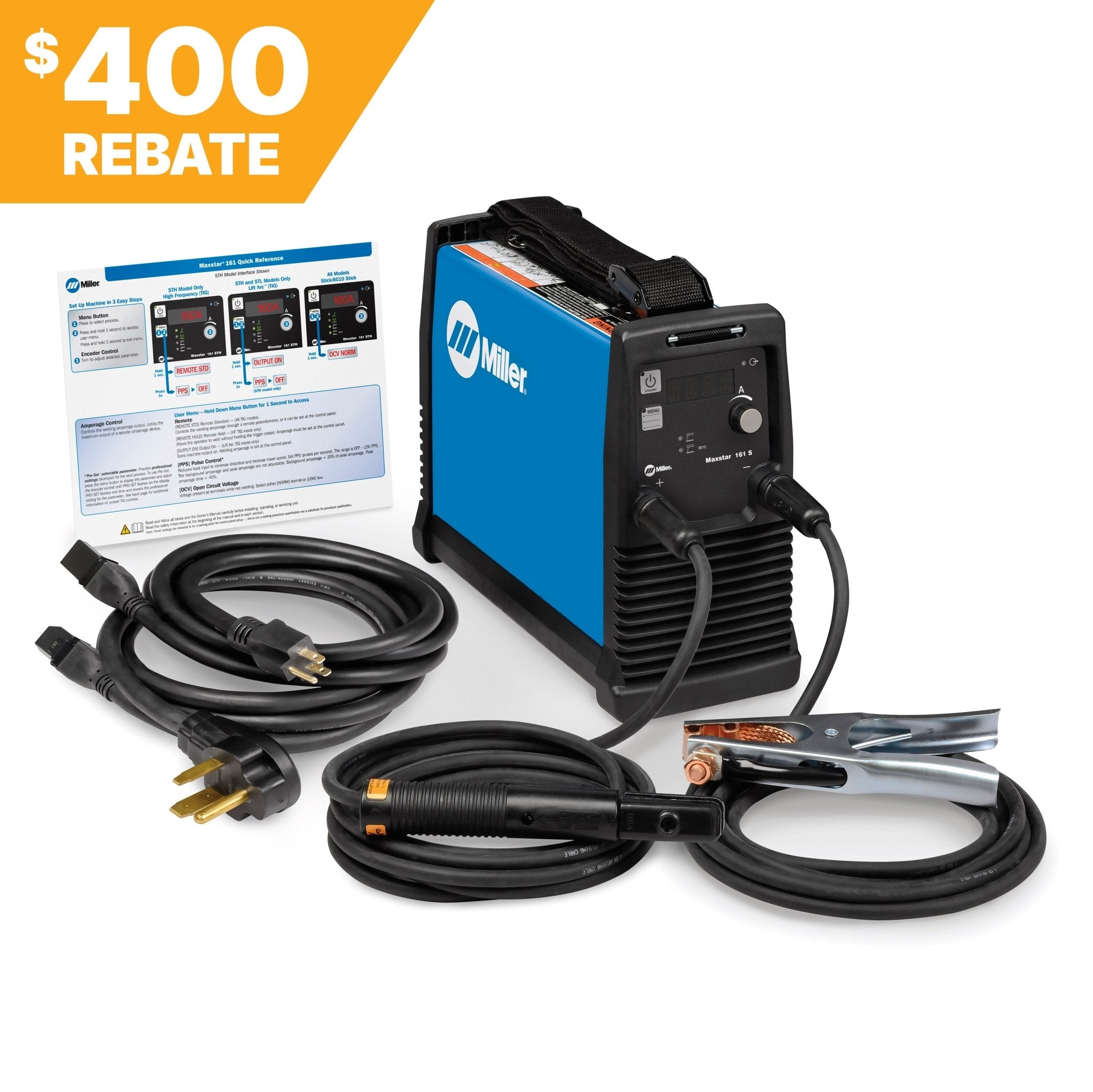

What's Included

  • Maxstar® 161 S

  • 6.5 ft. (2 m.) primary cords for 120 V and 240 V

  • 13 ft. (4 m.) stick electrode holder with 25 mm. Dinse-style connector

  • 10 ft. (3 m.) work clamp with 25 mm. Dinse-stlye connector

  • Adjustable handle/shoulder strap

Use on 120 AND 240 Volt Input Power

Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without the use of any tools to allow your to common 120 and 240 volt power receptacles


Compact Design Allows for Great Portability

Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this little inverter-based Stick machine can be taken from location to location


No More "Sticky" Electrodes

With Miller's Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes


Conserve Your Electrodes

With the Stick-Stuck feature the machine detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode


Superior Stick Arc Performance

Even on the difficult-to-run electrodes like E6010


PROCESSES

Stick (SMAW)

Product Literature

DC/27.3 Maxstar 161 S - English


General Specifications

Title Miller Maxstar 161 S Stick Welder 907709
Industries Interests Aerospace
Shipbuilding
Weldable Metals Steel
Stainless Steel
Input Voltage 110/115/120 V
220/230/240 V
Input Phase 1-Phase
Input Hz 50/60 Hz
Current Type DC
Max Open Circuit Voltage 48 VDC
Portability Handle(s)
Strap
Weld Output CC
Applications Mobile Fabrication & MRO
Process Pipe
Stainless Steel
Warranty 3 Years
Miller's True Blue Warranty
