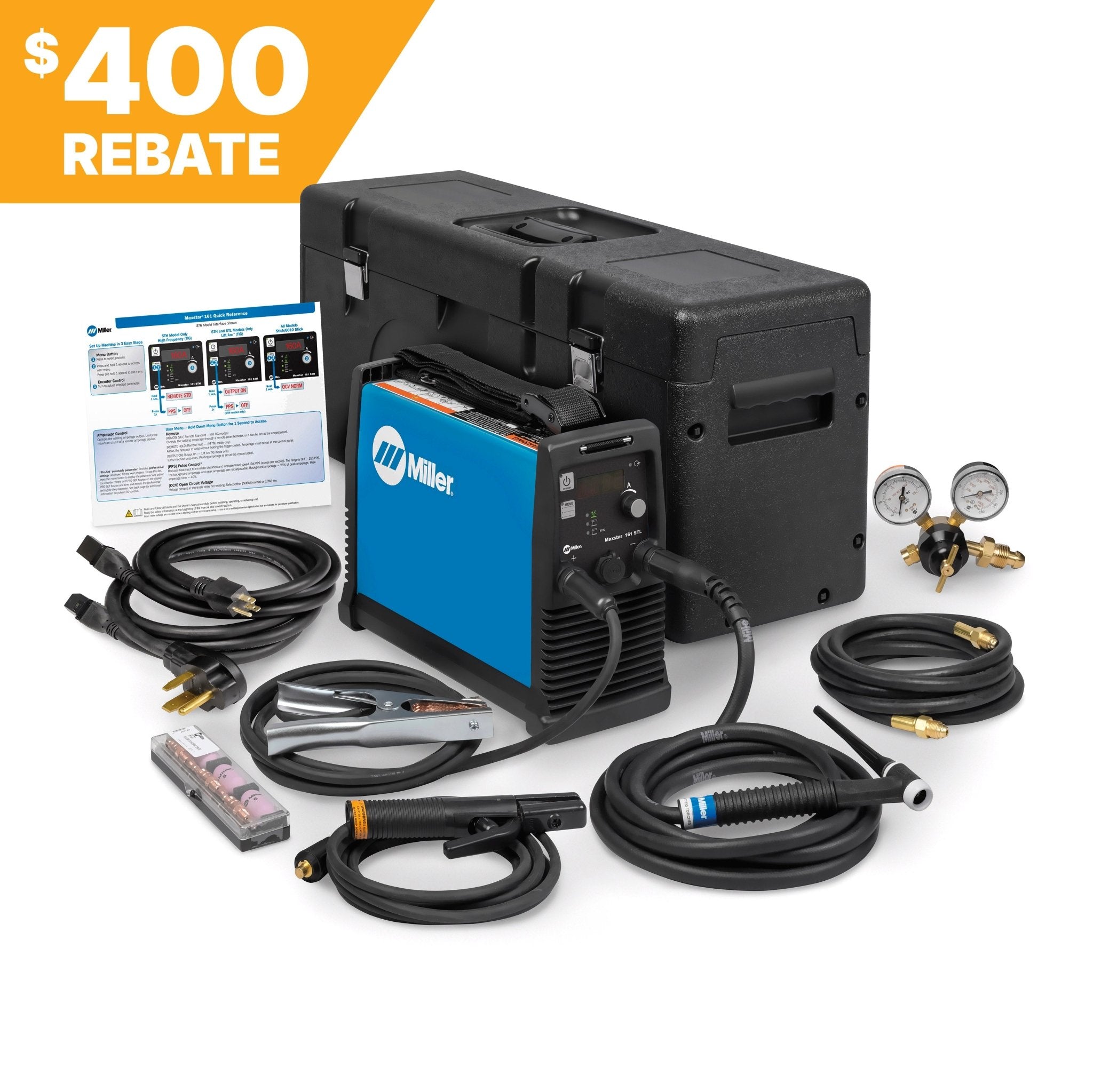

Miller Maxstar 161 STL TIG and Stick Welder with X-Case 907710001

In stock
SKU: 907710001
Regular price $2,285.00 USD
Provides maximum portability and performance in the most compact Miller TIG/Stick packages. Dependability and performance all in one machine.



What's Included

  • Maxstar® 161 STL
  • 6.5 ft. (2 m.) primary cords for 120 V and 240 V
  • 13 ft. (4 m.) stick electrode holder with 25 mm. Dinse-style connector
  • 10 ft. (3 m.) work clamp with 25 mm. Dinse-stlye connector
  • Adjustable handle/shoulder strap
  • 12.5 ft. (3.8 m) Weldcraft™ A-150 TIG torch
  • Regulator/flow gauge and gas hose
  • AK2C accessory kit
  • Protective Miller® X-Case™ (301429)
  • Quick Reference Guide

Not Included

  • Regulator/flow gauge and gas hose
  • Remote Control (6-pin)

Use on 120 AND 240 Volt Input Power

Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without the use of any tools to allow your to common 120 and 240 volt power receptacles.

Compact Design Allows for Great Portability

Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this little inverter-based TIG/Stick machine can be taken from location to location.



Low Power Draw

By utilizing an inverter-based power source in the Maxstar® 161, superior arc starts and excellent weld puddle control are provided in both the TIG and Stick settings - all in a small, light-weight package.



Easy-to-Use

1. Turn power on.
2. Select process: Lift-Arc TIG, Stick, or 6010 Stick.
3. Set amperage. Then weld! It’s as easy as 1, 2, 3.

6010 Stick Electrode Capability

Superior Stick arc performance even on the difficult-to-run electrodes like E6010.

No More "Sticky" Electrodes

With Miller's Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes.

Conserve Your Electrodes

With the Stick-Stuck feature the machine detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode.

No Need For A Gas Valve On Your TIG Torch

With a built-in gas solenoid, the Maxstar® 161 eliminates the need for a bulky TIG torch with a gas valve



5 Amp TIG Capability

Allows users to weld thinner materials than other machines in this category.


PROCESSES


Stick (SMAW)

TIG (GTAW)

TIG DC (GTAW-DC)



Product Literature

DC/27.5 Maxstar 161 Series - English


General Specifications

Title Miller Maxstar 161 STL TIG and Stick Welder with X-Case 907710001
Industries Interests Aerospace
Shipbuilding
Material Thickness Steel 0.020 in. (0.5 mm) - 3/16 in. (4.8 mm)
Weldable Metals Stainless Steel
Steel
Input Voltage 110/115/120 V
220/230/240 V
Input Phase 1-Phase
Input Hz 50/60 Hz
Current Type DC
Max Open Circuit Voltage 48 VDC
Amperage Min 5 A
Amperage Max 160 A
Portability Handle(s)
Strap
Weld Output CC
Applications Mobile Fabrication & MRO
Process Pipe
Stainless Steel
Warranty 3 Years
Miller's True Blue Warranty
