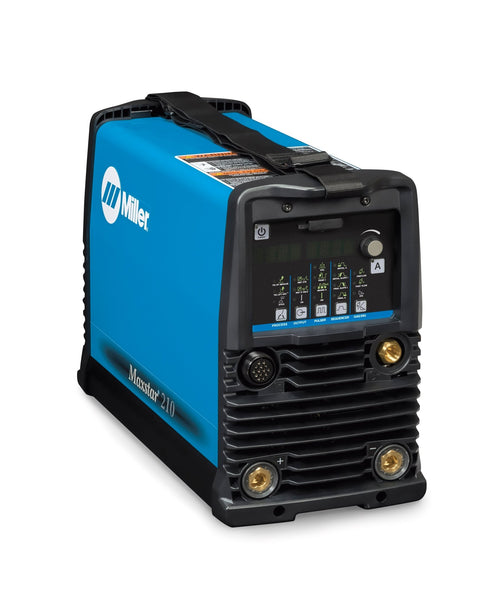

Miller Maxstar® 210 DX TIG/Stick Welder – Model 907684 – Auto-Line™ 120–480V Inverter Power Source
Take your welding to the next level with the Miller Maxstar 210 DX —a premium industrial-grade DC TIG and Stick inverter designed for precision fabrication, field service, maintenance, and production environments. Built with Miller's renowned reliability and advanced arc control, the Maxstar 210 DX delivers exceptional TIG performance in a compact, lightweight package.
Featuring Auto-Line™ technology, this machine automatically adapts to virtually any input power from 120V to 480V (single or three-phase), making it an excellent choice for both shop and field applications without the need for manual voltage linking.
Features
-
Model: Maxstar 210 DX
-
Processes: DC TIG (GTAW), Pulsed DC TIG, and Stick (SMAW)
-
Auto-Line™ Multi-Voltage Input: 120–480 VAC, 50/60 Hz
-
Output Range:
-
TIG: 1–210 Amps
-
Stick: 5–210 Amps
-
Rated Output:
- 210A @ 18.4V (60% Duty Cycle)
-
Lightweight inverter design—approximately 38 lbs.
- Compact footprint for maximum portability
- Advanced high-frequency arc starting for consistent, non-contact TIG starts
- Lift-Arc™ start capability
- Pulsed TIG functionality for greater heat control on thin materials
- Exceptional arc stability and weld quality
- Ideal for stainless steel, carbon steel, chromoly, titanium, and other weldable metals.
Specifications
-
Input Voltage: 120–480V AC
-
Frequency: 50/60 Hz
-
Dimensions: 13.6" H × 8.6" W × 19.5" D
-
Weight: 38 lbs (17.2 kg)
- Industrial-duty inverter technology
Applications
Perfect for:
- Precision TIG fabrication
- Aerospace
- Automotive
- Manufacturing
- Maintenance & repair
- Food-grade stainless fabrication
- Petrochemical
- Mobile welding service
- Industrial maintenance.
Shop with ease - Miller's 3 year True Blue® Warranty, the best coverage in the industry, delivers unparalleled peace of mind.
