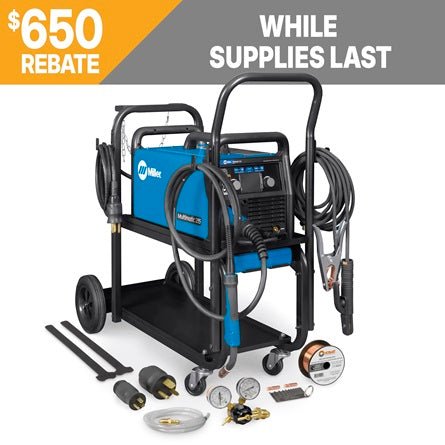

Miller Multimatic 215 Multiprocess Welder With Single Cylinder Cart 951000001

In stock
SKU: 951000001
Regular price $2,385.00 USD

Easy-to-use and versatile MIG, Stick and DC TIG welder that helps build skills. Color screen featuring Auto-Set™ Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel.


Multiprocess Capabilities

MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills.


Color LCD with Auto-Set™ Elite

Auto-Set Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings. Simple to set up and use!


Inverter Technology

Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.

Two Gas Connections

There are two gas connections on the back of the machine—one for MIG and one for TIG.


Multi-Voltage Plug (MVP)

Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.


Angled Drive System with Quick Select™ Drive Roll

Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.

Auto Spool Gun Detect™

Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch. The Spoolmate 100 and Spoolmate 150 are compatible with the Multimatic 215.



Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.


Industries Interests

Farm and Ranch
Welding Education and Training


20 A - 230 A

Material Thickness

Mild Steel 24 ga. - 3/8 in. (MIG)
Mild Steel 24 ga. -3/16 in. (TIG)
Mild Steel 16 ga. - 3/8 in. (Stick)
Aluminum 18 ga. - 3/8 in (MIG)

Weldable Metals

Stainless Steel

Input Voltage

110/115/120 V
220/230/240 V

Input Phase


Input Hz

50/60 Hz

Current Type


Max Open Circuit Voltage

58 VDC

Wire Feed Speed

1.8 m/min - 10.8 m/min
70 IPM - 425 IPM


Running Gear / Cart (Standard)

Weld Output

CC / CV
