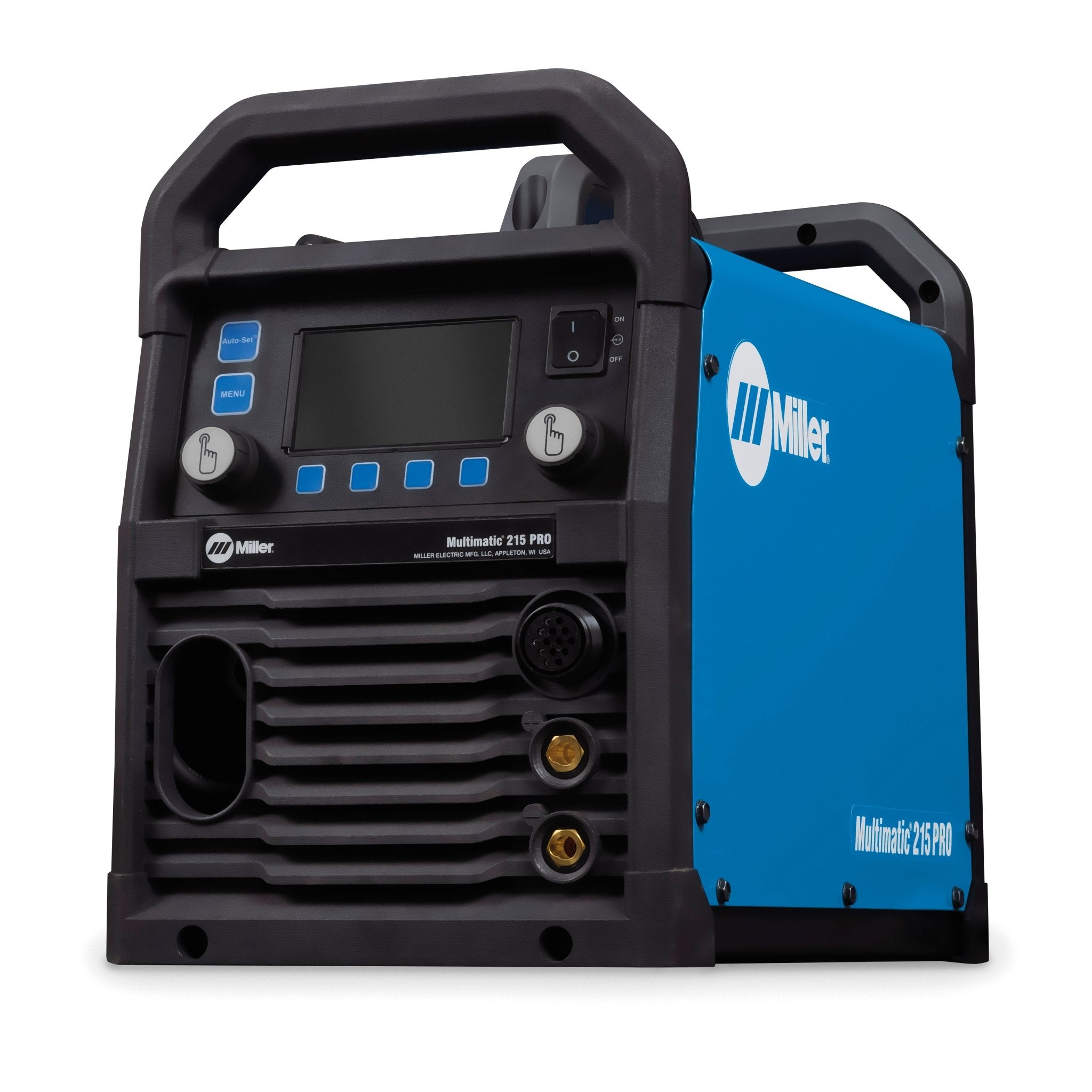

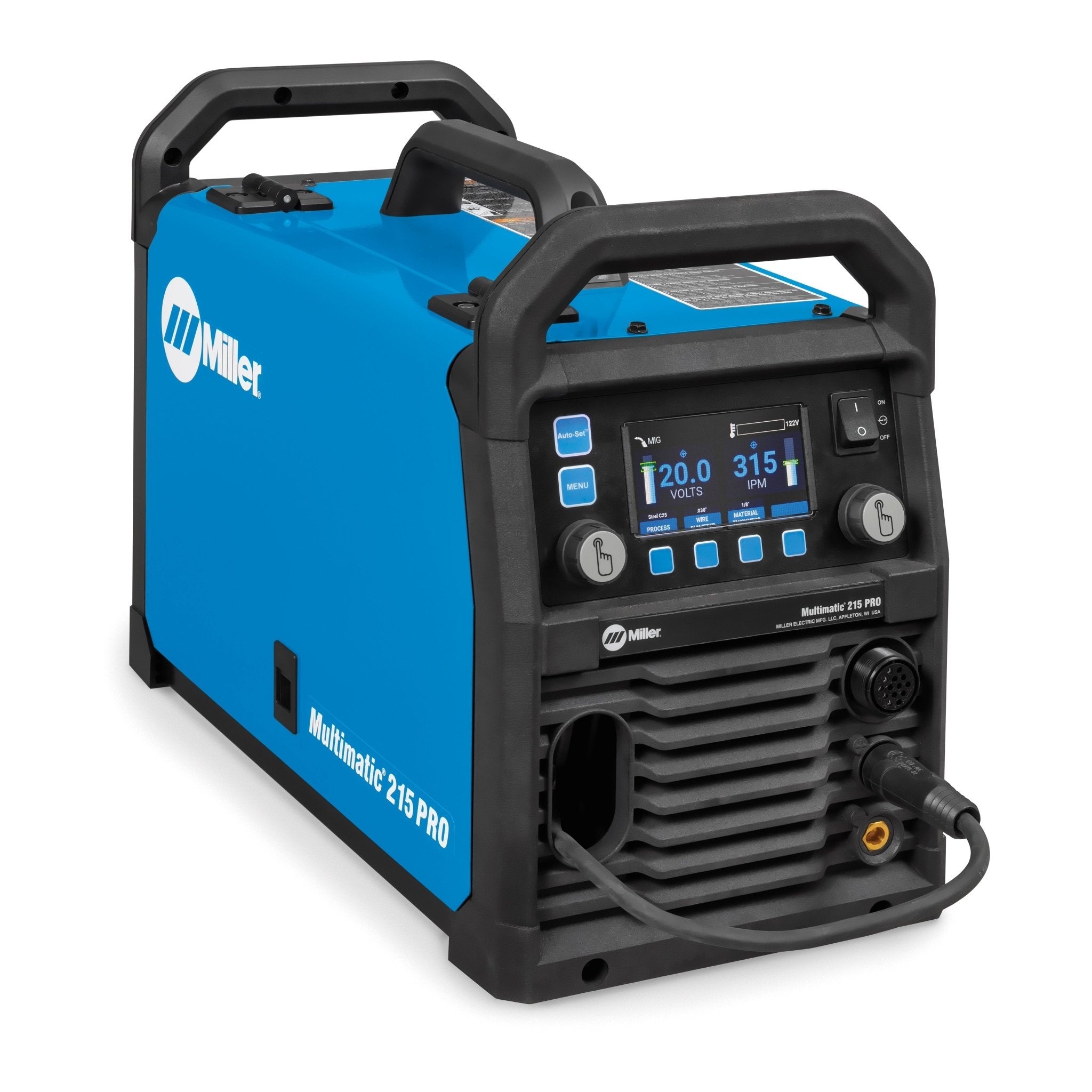

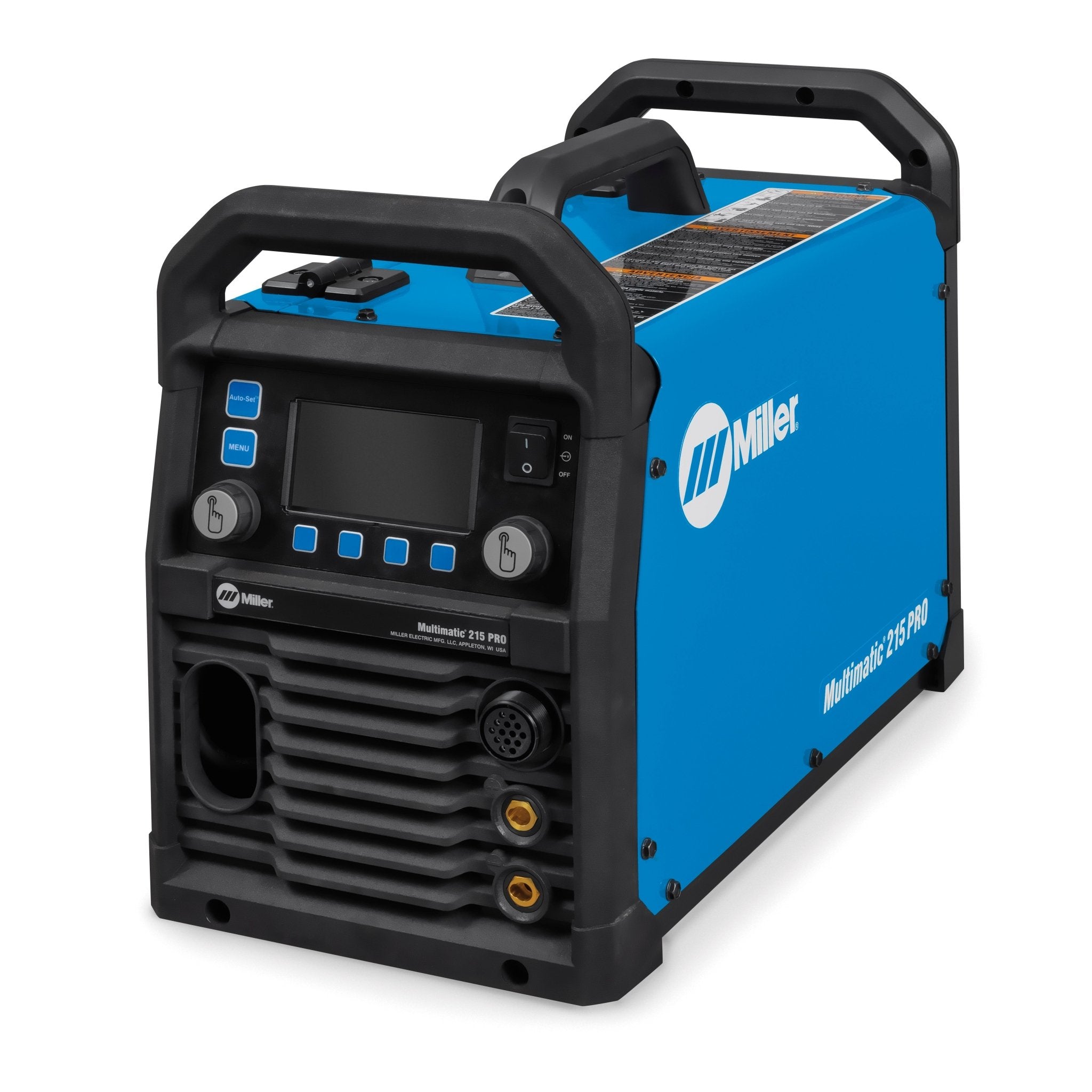

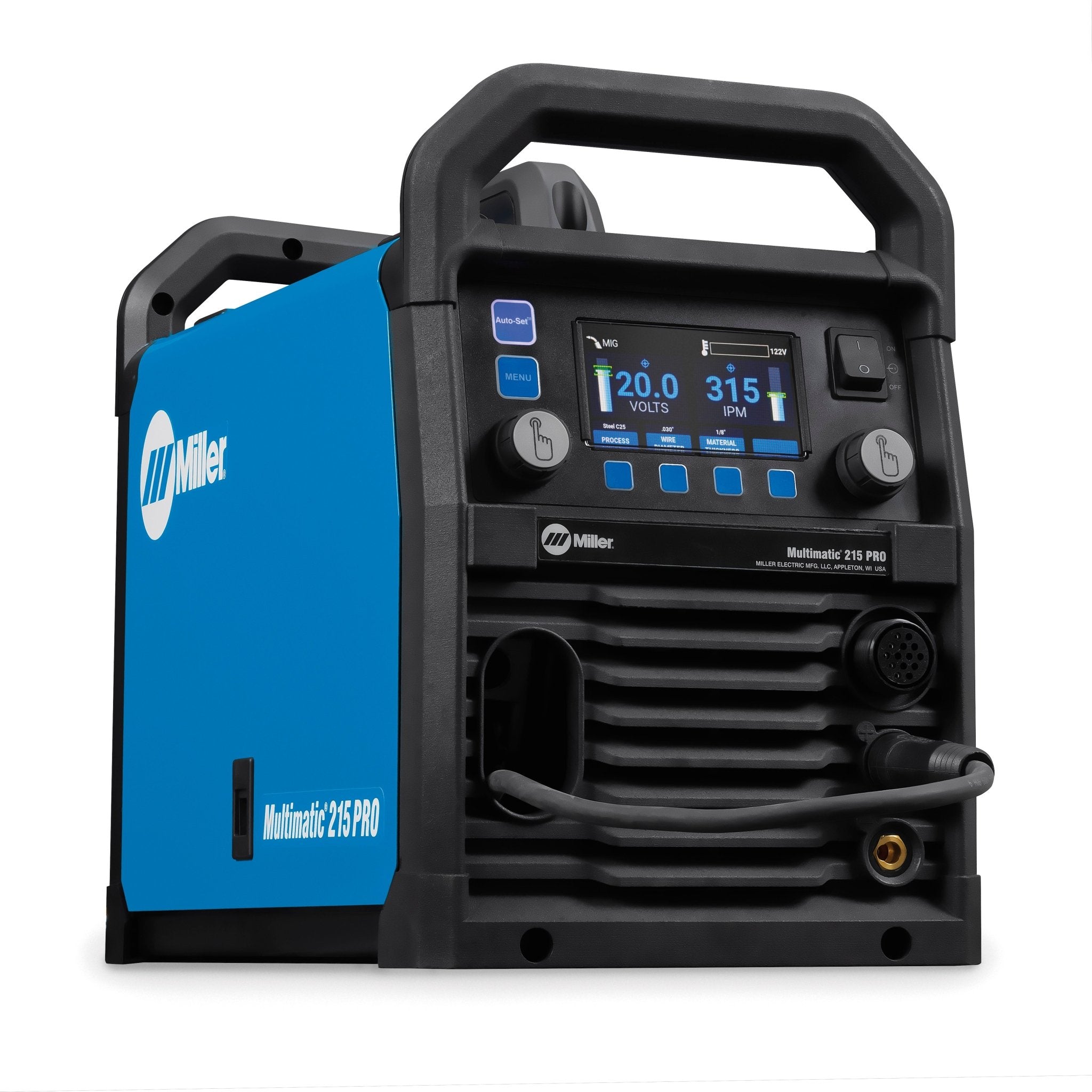

Meet the NEW and improved Multimatic® 215 PRO! It is a hardworking Multiprocess welder with upgradable software, a higher duty cycle, a 15-foot MIG gun, and an intuitive user interface. Weld up to 3/8-inch steel and aluminum on 240 V power or 3/16-inch steel and 1/8-inch aluminum on 120 V power.
Rated Output:
120 V: 110 A at 19.5 VDC, 60% duty cycle
240 V: 160 A at 22.0 VDC, 60% duty cycle / 215 A at 24.8 VDC, 30% duty cycle

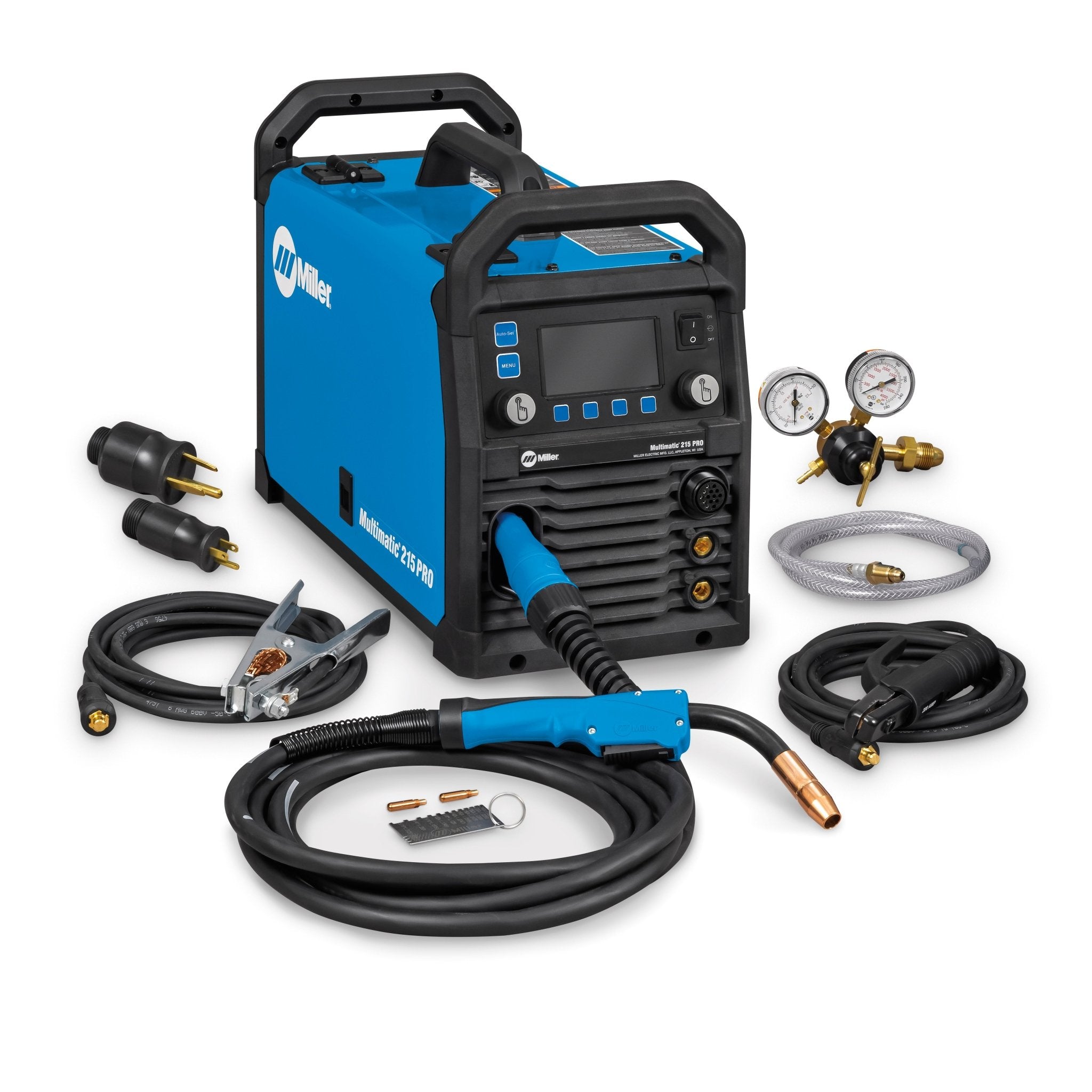

What's Included
Multimatic® 215 PRO
15 ft. (4.6 m) MDX™-100 MIG gun
15 ft. cable with electrode holder and Dinse-style connector
15 ft (4.6 m) Work cable with clamp
6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
Argon and AR/CO2 mix regulator/flow gauge with hose
Two contact tips for .030 in (0.8 mm) wire
Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
Hook-and-loop cord wraps
Material thickness gauge #229895
Multiprocess Capabilities
MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills.
Auto-Set™ Technology
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
Upgradeable Software
Product upgrades are easy as downloading software updates to a USB stick and plugging it in.
Smooth-Start™
This technology provides a smooth, spatter-free start. No more pop-gun starts or spatter to clean up.
Multi-voltage plug (MVP™)
Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.
Angled Drive System with Quick Select™ Drive Roll
Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.
Quick Select™ Drive Roll
Makes setup quicker by offering three grooves - two for different size solid wire and a third for flux-cored wire.
Inverter Technology
Inverter technology combines best-in-class arc characteristics with the portability of a 35-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.
Generator Compatible
Will be able to operate and provide full output when powered by an engine-driven welder with 8000 Watt (8K) output or higher, such as a Miller Bobcat or Trailblazer. Limited output will occur when used with smaller generators.
Auto Spool Gun Detect™
Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
Weld Longer
Higher duty cycle, a 15-foot MIG gun and dinse connections mean fewer interruptions.
Processes
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
TIG DC (GTAW-DC)
Key Specifications
| Title |
Multimatic® 215 PRO Multiprocess Welder |
| Applications |
Automotive Welding
Car Restoration
Fabrication
Garage/Shop
Mobile Fabrication & MRO
Welding Education and Training
Welding Projects |
| Industries |
Auto Repair
Construction & Fabrication
Farm & Ranch
Racing, Customizing & Restoring |
| Amperage |
20 A - 230 A |
| Material Thickness |
Mild Steel 24 ga. - 3/8 in. (MIG)
Mild Steel 24 ga. - 1/4 in. (TIG)
Mild Steel 16 ga. - 3/8 in. (Stick)
Aluminum 18 ga. - 3/8 in (MIG) |
| Weldable Metals |
Aluminum
Stainless Steel
Steel |
| Current Type |
DC |
| Max Open Circuit Voltage |
57 VDC |
| Wire Feed Speed |
1.5 m/min - 15.2 m/min
60 IPM - 600 IPM |
| Portability |
Handle(s)
Running Gear / Cart (Optional) |
| Input Voltage |
120/240 V |
| Input Phase |
1-Phase |
| Input Hz |
50/60 Hz |
| Net Width |
9.75 in |
| Net Height |
14.625 in |
| Net Length |
20 in |
| Warranty |
Miller's True Blue Warranty |
