Home » Miller Multimatic 220 AC/DC Welder w/ Dual Cylinder Cart 951000070
Miller

Miller Multimatic 220 AC/DC Welder w/ Dual Cylinder Cart 951000070

In stock
SKU: 951000070
(0)
$4,705.00 USD

Share This Product

The Multimatic 220 AC/DC is the only machine in its class that offers users the ability to switch welding gas, polarity and welding process automatically while recalling the last MIG or TIG settings.

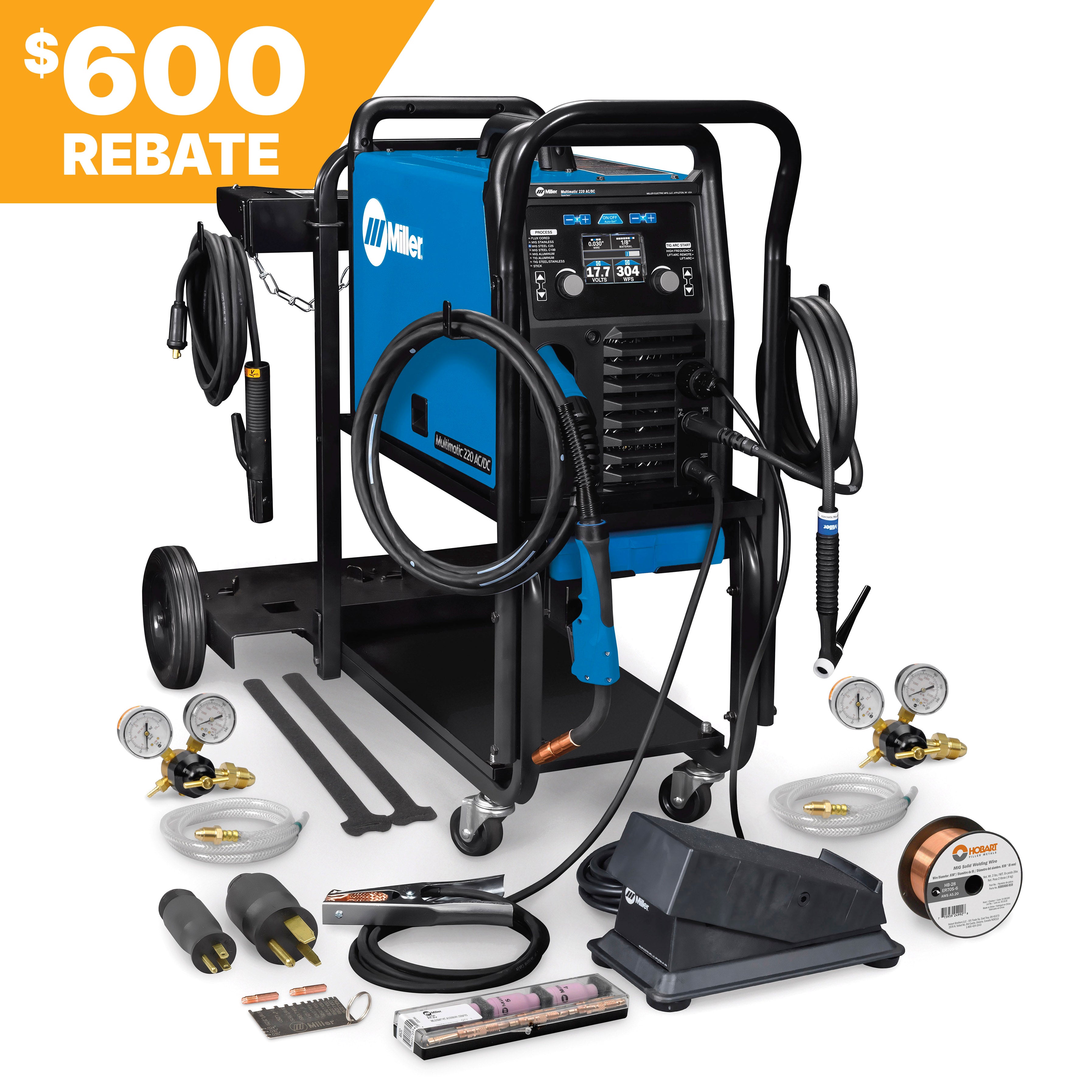

WHAT'S INCLUDED

  • Multimatic® 220 AC/DC
  • 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
  • 10 ft MDX™-100 MIG Welding Gun
  • Dual Cylinder Running Gear
  • 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
  • 12.5 ft (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25mm Dinse-style connector
  • RFCS-14 HD foot control with 20 ft (6 m) cord
  • 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
  • Two Argon and AR/CO2 mix regulator/flow gauge with hoses
  • Spool of Hobart® .030 in (0.8 mm) solid wire
  • Two contact tips for .030 in (0.8 mm) wire
  • Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
  • AK2C TIG torch accessory kit
  • Material thickness gauge #229895
  • Hook-and-loop cord wraps
    • All in One
    Take on more projects with one machine that has MIG, Stick, AC and DC TIG.

    QuickTech™
    • Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time.
    • Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes.
    • Automatically recalls the settings from the last process used.

    Multi-Voltage Plug (MVP)
    Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.

    Auto-Set™ Elite
    offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.

    Pro-Set™ Feature
    Eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set™ appears on the display and the number turns blue. Available for AC Balance and Frequency (TIG), DC Pulse (TIG), and DIG (Stick).

    14-Pin Controlled Operator Alternatives
    The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.

    Weighing Only 56 Pounds
    The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.

    Dependable Arc Starts
    Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.

    Generator Compatible
    The Multimatic 220 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.


    GENERAL SPECIFICATIONS

    Title Multimatic® 220 AC/DC w/ Dual Cylinder Welding Cart
    Industries Interests Racing
    Farm and Ranch
    Manufacturing
    Welding Education and Training
    Material Thickness Mild Steel 24 ga. - 3/8 in. (MIG)
    Mild Steel 16 ga. - 3/8 in. (Stick)
    Mild Steel 24 ga. - 1/4 in. (TIG)
    Aluminum 24 ga. - 1/4 in. (TIG)
    Aluminum 18 ga. - 3/8 in (MIG)
    Weldable Metals Aluminum
    Stainless Steel
    Steel
    Input Voltage 110/115/120 V
    220/230/240 V
    Input Phase 1-Phase
    Input Hz 50/60 Hz
    Current Type AC / DC
    Max Open Circuit Voltage 46 VDC
    Wire Feed Speed 1.5 m/min - 15.2 m/min
    60 m/min - 600 m/min
    Welding Mode CC/CV
    Portability Handle(s)
    Running Gear / Cart (Standard)
    Weld Output CC / CV
