Miller Multimatic 215 Auto-Set Multiprocess Welder 907693 & Spoolmate 150 301272

In stock - 6 items available
SKU: 907693/301272
Regular price $2,975.00 USD

The Multimatic 215 is an easy-to-use and versatile MIG, Stick and DC TIG welder, that helps build skills. Has a color screen featuring Auto-Set™ Elite.

This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel.

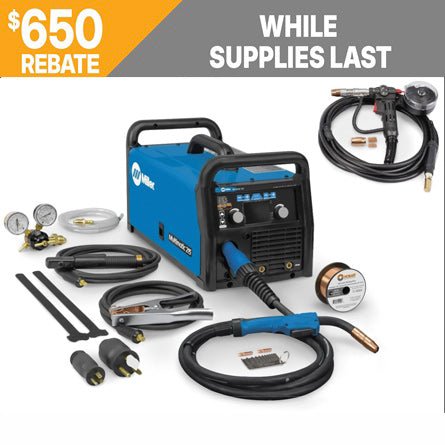

  • Multimatic 215 Power source
  • Spoolmate 150 Spoolgun 301272
  • Material thickness gauge #229895
  • 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
  • 10 ft (3 m) MDX™-100 MIG gun
  • 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
  • 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
  • Argon and AR/CO2 mix regulator/flow gauge with hose
  • Spool of Hobart® .030 in (0.8 mm) solid wire

  • Two contact tips for .030 in (0.8 mm) wire

  • Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire

  • Hook-and-loop cord wraps


    Multiprocess Capabilities

    MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills.


    Color LCD with Auto-Set™ Elite

    Auto-Set Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings. Simple to set up and use!

    Inverter Technology

    Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.

    Two Gas Connections

    There are two gas connections on the back of the machine—one for MIG and one for TIG.

    Auto Spool Gun Detect™

    Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch. The Spoolmate 100 and Spoolmate 150 are compatible with the Multimatic 215.

    Multi-voltage plug (MVP™)

    Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.


    Angled Drive System with Quick Select™ Drive Roll

    Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.



    Smooth-Start™ provides smooth, spatter-free MIG starts.




    Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.


    Generator Compatible

    The Multimatic 215 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.


Title Multimatic® 215 Multiprocess Welder
Industries Interests DIY / Home Hobbyist

Farm and Ranch

Metal Art / Sculptures

Racing / Customizing / Restoring

Education / Training

Weldable Metals Aluminum

Stainless Steel


Input Voltage 110/115/120 V

220/230/240 V

Input Phase 1-Phase
Input Hz 50/60 Hz
Current Type DC
Max Open Circuit Voltage 58 VDC
Portability Handle(s)

Running Gear / Cart (Optional)

Weld Output CC / CV
Net Width 11.25 in
Net Height 12.5 in
Net Length 20.5 in
Net Weight 38 lbs
