Miller Multimatic 215 Auto-Set Multiprocess Welder With Tig Kit 951674
Miller Multimatic 215 Auto-Set Multiprocess Welder With Tig Kit 951674
Miller Multimatic 215 Auto-Set Multiprocess Welder With Tig Kit 951674
Miller Multimatic 215 Auto-Set Multiprocess Welder With Tig Kit 951674
Miller Multimatic 215 Auto-Set Multiprocess Welder With Tig Kit 951674
Miller Multimatic 215 Auto-Set Multiprocess Welder With Tig Kit 951674
Miller Multimatic 215 Auto-Set Multiprocess Welder With Tig Kit 951674

Miller Multimatic 215 Auto-Set Multiprocess Welder With Tig Kit 951674

Vendor
Miller
Regular price
$2,919.00
Regular price
Sale price
$2,919.00
Unit price
per
Availability
Sold out

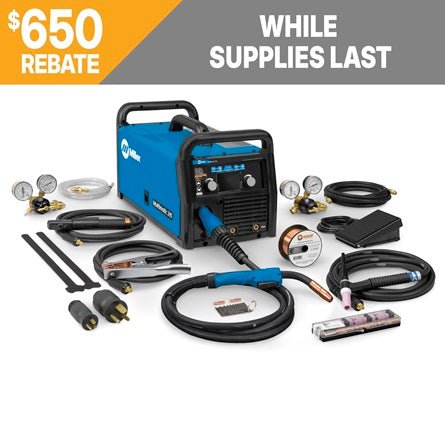

WHAT'S INCLUDED

  • Multimatic® 215

  • 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V

  • 10 ft (3 m) MDX™-100 MIG gun

  • 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector

  • 10 ft (3 m) work cable and clamp

  • Argon and AR/CO2 mix regulator/flow gauge with hose

  • Spool of Hobart® .030 in (0.8 mm) solid wire

  • Two contact tips for .030 in (0.8 mm) wire

  • Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire

  • Hook-and-loop cord wraps

  • Material thickness gauge #229895

  • TIG Kit for the Multimatic 215 - PN# 301337

  •



Multiprocess Capabilities

MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills.



Color LCD with Auto-Set™ Elite

Auto-Set Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings. Simple to set up and use!



Inverter Technology

Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.

Two Gas Connections

There are two gas connections on the back of the machine—one for MIG and one for TIG.



Angled Drive System with Quick Select™ Drive Roll

Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.



Multi-voltage plug (MVP™)

Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.

Auto Spool Gun Detect™

Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch. The Spoolmate 100 and Spoolmate 150 are compatible with the Multimatic 215.



Smooth-Start™

Smooth-Start™ provides smooth, spatter-free MIG starts.



Fan-On-Demand™

Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.



Generator Compatible

The Multimatic 215 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.




PROCESSES

Flux Cored (FCAW)

MIG (GMAW)

Multiprocess

Stick (SMAW)

TIG DC (GTAW-DC)

GENERAL SPECIFICATIONS

Title

Multimatic® 215 Multiprocess Welder with TIG Kit

Industries Interests

DIY / Home Hobbyist
Farm and Ranch
Metal Art / Sculptures
Racing / Customizing / Restoring
Education / Training

Weldable Metals

Aluminum
Stainless Steel
Steel

Input Voltage

110/115/120 V
220/230/240 V

Input Phase

1-Phase

Input Hz

50/60 Hz

Current Type

DC

Max Open Circuit Voltage

58 VDC

Portability

Handle(s)
Running Gear / Cart (Optional)

Weld Output

CC / CV

Net Width

11.25 in

Net Height

12.5 in

Net Length

20.5 in

Net Weight

44 lbs

Warranty
