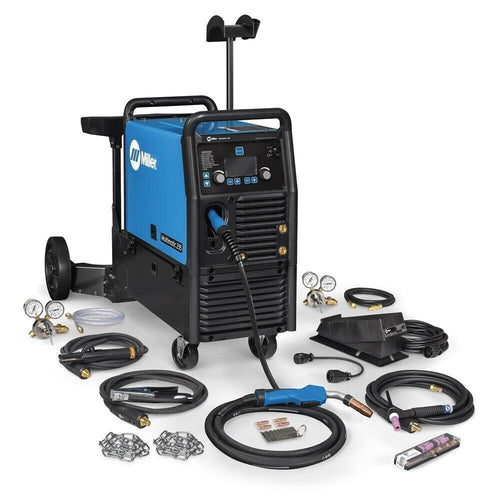

Miller Multimatic 235 Multiprocess Welder With Dual Cyl Cart and TIG Kit 951847
Atlas Welding Supply Satisfaction Guarantee!
Regular price
$4,409.00 USD
Couldn't load pickup availability
Built for professionals in the manufacturing/fabrication, MRO and construction fabrication and education segments, the Multimatic 235 allows welders of all skill levels to be more efficient for all their MIG, flux-cored, stick and DC TIG welding needs. Setup is quick and easy, letting operators have faster uptime and weld with confidence
Features:
- Multiprocess capabilities include MIG, flux cored, DC stick, DC Lift-Arc™
- TIG and pulsed TIG welding.MIG: 24 ga.–3/8 in. steel
- 18 ga.–3/8 in. aluminum
- DC stick: 16 ga.–3/8 in. steel
- DC Lift-Arc™ TIG: 24 ga.–1/4 in. steel
- Easy-to-understand interface with 4.3-inch color LCD display and intuitive connection setup images.
- Auto-Set™ Elite offers predefined weld settings to increase ease of use and
ensure that the job is done right for operators of all skill levels. - Available for MIG, stick and DC TIG processes with the ability to finetune
your settings. - Inverter technology weighing only 63 pounds, the Multimatic 235 can go where the work is, plus the added convenience of one machine versus two or more.
- Large wire drive compartment to house 12-inch wire spool to increase productivity by reducing frequency of changing smaller wire spools.
- Angled heavy-duty aluminum two-drive-roll system significantly improves wire feeding through a 15-foot gun from a 12-inch spool of wire.
- Two shielding gas connections so both gases can be left connected to the machine,
no switching needed. One connection for MIG gas and one for TIG gas. - Gun -On=Demand™ automatically adjusts voltage, wire speed for
faster switching between MIG and spool guns. Compatible with Spoolmate 100, 150, 200 & Spoolmatic 15/30A Spoolguns. - 14-pin controlled operator alternatives. Using the 10-pin
connector on your Multimatic 235 in conjunction with the 10-pin to 14-pin adapter cord lets you choose your control for a customized experience, whether
it’s a foot control, fingertip control or wireless foot control. - Wide range of TIG adjustability.
- DC Pulse – adjustable from Off–150 pulses per second (PPS)
- TIG Post-Flow – adjustable from Auto–25 seconds (accessible
through service menu screen 13) - EZ-Latch single cylinder running gear model.
What's Included:
- Power source with 10 ft. (3 m) industrial power cord
- Multimatic® 235 with 7 ft (2.1 m) industrial power cord
- Multimatic® 235 with 7 ft (2.1 m) industrial power cord
- Argon and AR/CO2 mix regulator/flow gauge with hose
- 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
- 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
- 2 Flow gauge regulator and gas hose for argon or AR/CO2 mix
.030/.035 in. (0.8/0.9 mm) reversible drive rolls - Extra contact tips for .030 in (0.8 mm) and .035 (0.9 mm) wire
- Material thickness gauge #229896
- EZ-Latch™ dual cylinder running gear with elevated gun and cable rack
- Multimatic 235/255 TIG kit
- Two chains to secure gas cylinders
- Material thickness gauge #229896
- Two Chains to secure gas cylinder
- Multimatic® 235/255 TIG Kit
Not Included:
- Shielding gas
- Safety equipment
- Spool gun for aluminum welding
Versatility
Multiprocess Capabilities of MIG, Stick, DC Lift Arc TIG and DC Pulsed TIG
Easy-to-understand interface
4.3-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
Auto-Set™ Elite
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
Portability - Machine only weighs 63 lb
Weight is reduced by more than 50 percent compared to transformer welding machines
TIG Kit
Kits comes complete with everything needed to TIG weld with the Multimatic 235. Includes 25-foot (7.6 m) Weldcraft™ A-150 TIG torch, RFCS-14 HD foot control, 10-pin to 14-pin adapter cord, flow gauge regulator with 5-foot (1.5 m) gas hose, and AK3C torch accessory kit.
EZ-Latch™ Dual Cylinder Rack with Elevated Gun and Cable Rack
Quickly disconnects from the machine and enables portability. Dual cylinder rack and storage compartment. Allows operator to easily store two gas cylinders. Includes elevated gun and cable rack to keep cables off the floor and tangle free.
Gun-On-Demand™
Millers Gun-On-Demand™ allows operators to simply pull the trigger on MIG gun or Spoolgun. Automatically detects and recalls the voltage, wire feed speed of the active gun.
MDX-250 MIG Gun w/ AccuLock™ MDX consumables
AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ MDX contact tips provide superior arc performance.
Generator Compatible
The Multimatic 235 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
Specifications:
Processes
- Stick (SMAW)
- MIG (GMAW)
- TIG DC (GTAW-DC)
- Flux Cored (FCAW)
- UPC: 715959684217
-
Shipping Length (in): 21
-
Shipping Width (in): 13
-
Shipping Height (in): 11
-
Shipping Weight (in): 65.8
-
Net Length (in): 45
- Net Width (in): 13
-
Net Height (in): 32
-
Net Weight (lbs.): 127
-
UOM Qty: Ea
-
Application Class: Manufacturing, Fabrication, MRO, Construction Fab, Education
-
Phase: 1-Phase (Single Phase)
-
Wire Size: 0.023 – 0.035 in. (0.6 – 0.9 mm) solid steel 0.023 – 0.035 in. (0.6 – 0.9 mm) stainless 0.030 – 0.052 in. (0.8 – 1.3 mm) flux cored
-
Input Hz: 50/60 Hz
- Current Type: DC
-
Input Voltage: 240 V Operating Range 204-276V
- Weld Output: CC/CV
- Weldable Metals: Steel, Stainless Steel, Aluminum
- Max Wire Feed Speed: 15.2M/min (600 IPM)
-
Min Wire Feed Speed: 1.5 m/min (60 IPM)
- Warranty Info: Miller's True Blue Warranty
- Recommended Accessory ID 1: 195156
- Recommended Accessory ID 2: 130831
- Recommended Accessory ID 3: 300497
- Recommended Accessory ID 4: 301272
- Recommended Accessory ID 5: 300371
- Recommended Accessory ID 6: 300429
-
Recommended Accessory ID 7: 194744
-
Recommended Accessory ID 8: 242211020
-
Recommended Accessory ID 9: 151086
-
Recommended Accessory ID 10: "043688"
-
Recommended Accessory ID 11: 301545
- Recommended Accessory ID 12: 301518
- Recommended Accessory ID 13: 301481
- Recommended Accessory ID 14: 301521
-
Recommended Consumable ID 1: T-M023
- Recommended Consumable ID 2: T-M030
- Recommended Consumable ID 3: T-M035
- Recommended Consumable ID 4: T-M045
- Recommended Consumable ID 5: T-M047
- Recommended Consumable ID 6: N-M1200C
- Recommended Consumable ID 7: N-M1218C
- Recommended Consumable ID 8: N-M5800C
- Recommended Consumable ID 9: N-M5818C
- Recommended Consumable ID 10: N-M58XTC
- Recommended Consumable ID 11: D-M250
- Recommended Consumable ID 12: LM1A-15
- Recommended Consumable ID 13: LM2A-15
- Recommended Consumable ID 14: LM3A-15
- Recommended Consumable ID 15: 204579
- Recommended Consumable ID 16: "087131"
- Recommended Consumable ID 17: "079594"
-
Recommended Consumable ID 18: 079595
-
Recommended Consumable ID 19: "079596"
- Recommended Consumable ID 20: "079606"
-
Recommended Consumable ID 21: "079607"
- Recommended Consumable ID 22: "079608"
