Home » Miller Multimatic 235 Multiprocess Welder With Running Gear Cart 951846
Miller

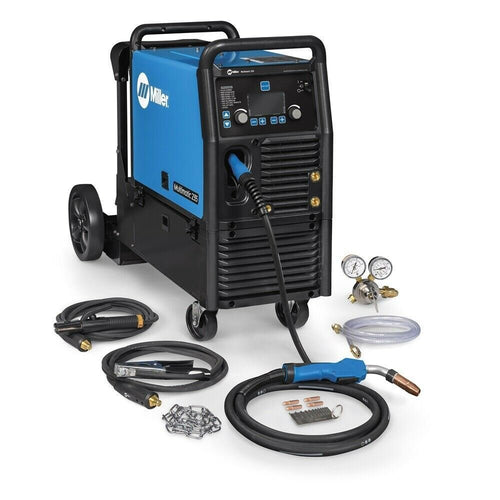

Miller Multimatic 235 Multiprocess Welder With Running Gear Cart 951846

In stock - 5 items available
SKU: 951846
(0)
$3,517.00 USD

Share This Product

Built for professionals in the manufacturing/fabrication, MRO and construction fabrication and education segments, the Multimatic 235 allows welders of all skill levels to be more efficient for all their MIG, flux-cored, stick and DC TIG welding needs. Setup is quick and easy, letting operators have faster uptime and weld with confidence.


WHAT'S INCLUDED

  • Power source with 7 ft. (2.1 m) power cord

  • 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ MDX consumables for .030/.035 in. (0.8/0.9 mm) wire

  • 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector

  • 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector

  • Flow gauge regulator and gas hose for argon or AR/CO2 mix

  • Extra contact tips

  • .030/.035 in. (0.8/0.9 mm) reversible drive rolls

  • EZ-Latch™ single-cylinder running gear

  • Chain to secure gas cylinder

  • Material Thickness Gauge

  •




Versatility

Multiprocess Capabilities of MIG, Flux Cored, DC Lift Arc TIG and DC Pulsed TIG





Easy-to-understand interface

4.3-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time





Auto-Set™ Elite

Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels





Portability - Machine only weighs 63 lb

Weight is reduced to make it easier to take the welder to where the work is, plus the added convenience of one machine versus two or more.





EZ-Latch™ running gear

Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability





Gun-On-Demand™

Millers Gun-On-Demand™ allows operators to simply pull the trigger on MIG gun or Spoolgun. Automatically detects and recalls the voltage, wire feed speed of the active gun.





MDX-250 MIG Gun w/ AccuLock™ MDX consumables

AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ MDX contact tips provide superior MIG arc performance





Generator Compatible

The Multimatic 235 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.




PROCESSES

Aluminum Welding

Flux Cored (FCAW)

MIG (GMAW)

Multiprocess

Stick (SMAW)

TIG DC (GTAW-DC)


GENERAL SPECIFICATIONS

Title

Multimatic® 235 Multiprocess Welder w/ EZ-Latch™ Running Gear- 240V

Industries Interests

Auto Repair
Commercial Truck and Trailer
Construction
DIY / Home Hobbyist
Education / Training
Fabrication
Farm and Ranch
Maintenance and Repair - Field Operations
Maintenance and Repair - In Plant
Manufacturing
Metal Art / Sculptures
Racing / Customizing / Restoring
Work / Service Trucks

Material Thickness

Mild Steel 24 ga (MIG and TIG) 16 ga (Stick) - 3/8 in. (0.375 in.)

Weldable Metals

Aluminum
Stainless Steel
Steel

Input Voltage

208 V
220/230/240 V

Input Phase

1-Phase

Input Hz

50/60 Hz

Current Type

DC

Max Open Circuit Voltage

54 VDC

Rated Output


CV: MIG/Flux 170 Amps at 22.5 V, 60% duty cycle
CC: Stick 150 Amps at 26 V, 60% duty cycle
CC: DC TIG 180 Amps at 17.2 V, 60% duty cycle


Portability

Handle(s)
Running Gear / Cart (Standard)

Weld Output

CC / CV
