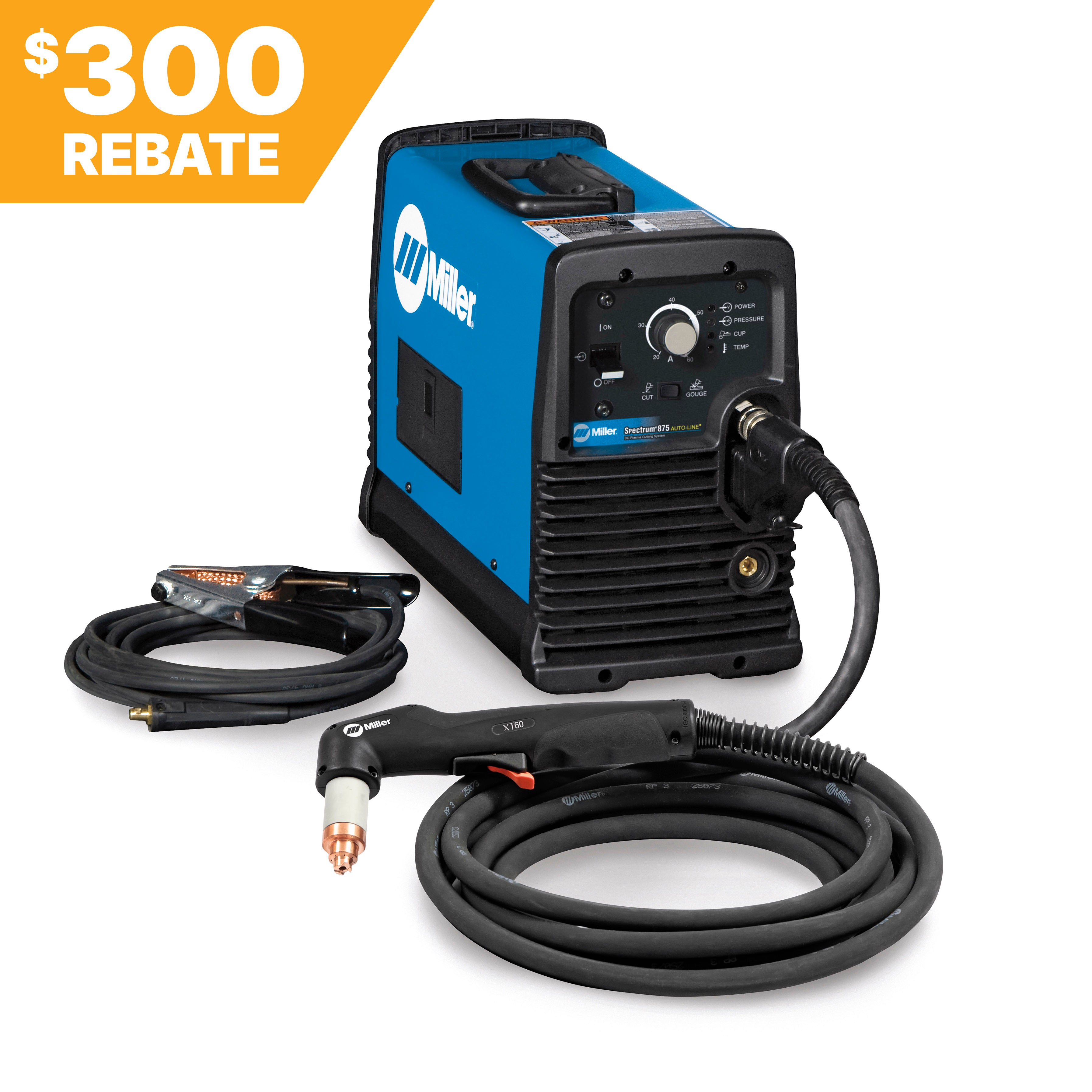

Miller Spectrum 875 w/20' Torch Auto-Line Plasma Cutter 907584

In stock
SKU: 907584
Regular price $3,875.00 USD

Share This Product

This Compact, 54 lb, multi-voltage (208-575V 1/3PH) unit cuts up to 7/8” mild steel.

WHAT'S INCLUDED

  • Spectrum 875 Auto-Line
  • XT60 hand-held torch with 20-ft. (6 m) cable. Includes a complete set of 60 A consumables.
  • Heavy-duty work clamp and flexible cable with quick connect
  • 10-ft. (3 m) power cord
  • Extra consumables
Rated Cutting Capacity
The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.
Automatic Air Regulation
For end user convenience, the unit has no pressure gauge or manual regulator knob. The unit automatically adjusts the air pressure to the torch for optimum cutting and gouging. No adjustments necessary.
Ultra-Quick Connect™ Torch
Torch and work cable offer the fastest plasma torch and work cable connection and removal in the industry.
Auto-Line™
Automatically connects the 875 Auto-Line to any primary input voltage from 208 - 575 volts single - or three-phase, 50 or 60 Hz.
Wind Tunnel Technology™ and Fan-On-Demand™
Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components. Fan-On-Demand cooling system operates only when needed. In dirty or dusty environments, this feature reduces the amount of airborne dust/dirt pulled through the unit.
Can Be Powered by Miller Engine Drive/Generator
Use with generator power at or above 10 kW (e.g. Bobcat™) or equivalent competitive equipment.
CNC/Automation Cutting Capable
Factory ready CNC/Automation models are available in long or short body torches as well as retrofit kits to convert hand held machines to be capable of CNC/Automation cutting.
Auto-Refire™ Technology
Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.
Title Spectrum® 875 Auto-Line
Industries Interests Racing / Customizing / Restoring
Construction
DIY / Home Hobbyist
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Shipbuilding
Boat / Yacht
High Purity Processing
Education / Training
Capability Gouging
Rated Output at 104 Degrees Fahrenheit 3- Phase: 208 V: 60 A at 140 VDC, 40% duty cycle; 230 - 380 V: 60 A at 140 VDC, 50% duty cycle; 380- 575 V: 60 A at 140 VDC, 60% duty cycle; 380-575 V: 50 A at 140 VDC, 100% duty cycle 1-Phase: 208 V: 60 A at 140 VDC, 40% duty cycle; 230 V: 60 A at 140 VDC, 50% duty cycle; 230 V: 50 A at 140 VDC, 100% duty cycle
Material Thickness Mild Steel 7/8 in.
Aluminum 5/8 in.
Stainless Steel 7/8 in.
Recommended Generator Power 11000
Input Hz 50/60 Hz
Input Amperage 12.4 A
Metal Type {9190276B-EE44-47D3-9D9A-F3CEE1894DC2}
{35A950E3-2302-440C-9387-45563C82DAFF}
{B04BEE54-0575-4BF3-9040-C83E2EA5D629}
Stainless Steel Travel Speed - IPM 15 IPM
Aluminum Travel Speed - IPM 15 IPM
Mild Steel Travel Speed - IPM 15 IPM
Net Width 8.75 in
Net Height 13.5 in
Net Length 18.5 in
Net Weight 54 lbs
Warranty


3 Years
Miller's True Blue Warranty
