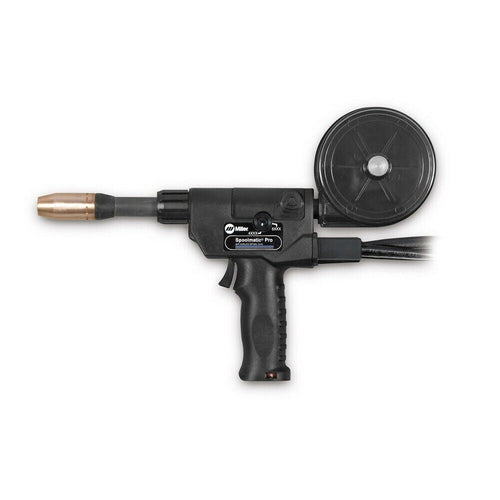

Miller Spoolmatic Pro 30A MIG Spool Gun 301148

In stock
SKU: 301148
Regular price $2,689.00 USD

Miller Spoolmatic Pro 30A MIG Spool Gun 301148

The Spoolmatic Pro spool gun is available in 15- or 30-foot (4.6 or 9 m)cable lengths and

features a built-in gas valve, rotatable canister, and isolated common knurled drive roll.

Best Feeding Performance

Dual wire tension settings for 4000- or 5000 series aluminum to ensure the very best wire feeding performance and arc consistency.

Durable Design

Most durable motor and drive design improves feedability and arc consistency while helping reduce downtime and maintenance costs.

Reduce Service Time

Easy access to drive assembly and removable toolless head tube reduce service time, by allowing a simple means of changing drive rolls and head tube — or performing routine maintenance without disassembly of gun.

Better Gun Access

Easy-to-rotate, self-seating head tube allows for better access into tight spots, preventing leaks and providing excellent current transfer. Head tubes are common with the XR™-Aluma-Pro™ gooseneck-style guns.

Easy to Use

Wire feed speed adjustment on the gun handle and reversible drive rolls save time and money. Quick-change, single-turn contact tip provides excellent performance and is easy to replace.

Integrated Spool Canister

Rotates 180 degrees for operator flexibility and comfort.

Two-Stage Trigger

Built-in gas valve allows for gas preflow, and eliminates the need to purge long gas lines.

Multiple Configurations

15- or 30-foot cable lengths provide flexibility to be used in the shop and in the field. Head tube options in several different lengths and bend configurations are available for use when a standard head tube doesn’t fit the application.


Title Spoolmatic ® Pro 30A Spool Gun
Amperage Rated Output 200 @ 100%
Torch Handle Type Pistol Grip
Torches Type Spool Gun
Wire Size .030-1/16
Warranty 1 Years

Miller's True Blue Warranty
