Miller Syncrowave 210 Tig & Stick Welder 907596
Couldn't load pickup availability
Share This Product
Receive A $600 Cash Rebate From Miller! For A Limited Time!
OFFER VALID THROUGH DECEMBER 30, 2023

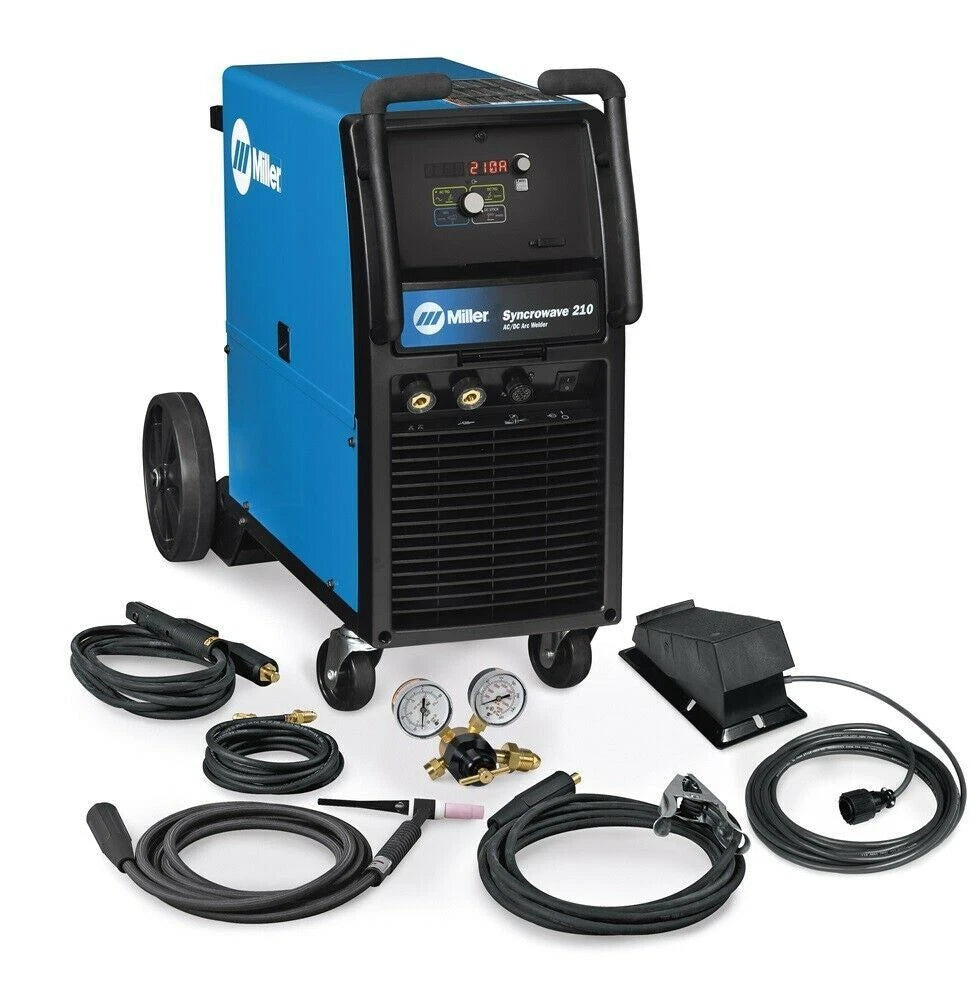

WHAT'S INCLUDED
Syncrowave 210
10 ft. (3 m) primary cord with MVP™ plugs for 120 V (219261) and 240 V (219258)
12 ft. (3.8 m) Weldcraft™ A-150 TIG torch with Dinse style connector
12 ft. (3.8 m) work cable with clamp and Dinse style connector
12 ft. (3.8 m) stick electrode holder with Dinse style connector
RFCS-14 HD remote foot control
Regulator/flow gauge and gas hose
Quick Reference Guide
Why Buy 2 When 1 Will Do?
While other multiprocess units lack the ability to TIG weld aluminum, your Syncrowave 210 has AC TIG. Also through the spool gun accessory you can MIG weld to fill those gaps or increase your travel speed.
5 Amp TIG Capability
Allows users to weld thinner materials than other machines in this category.
Pro-Set™ Feature (TIG)
Eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience, and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.
AC Balance Adjustability (TIG): Provides adjustable oxide removal which is essential for creating the highest quality aluminum welds.
Pulse Capability (TIG): Pulse feature ranging from 0 – 150 pulses per second for increasing puddle agitation, arc stability, and travel speeds while reducing heat input and distortion.
Auto-Set™ (MIG)
A breakthrough control that automatically sets your welder to the proper parameters. Auto-Set offers all-in-one MIG minus the hassle of finding parameters.
6010 Stick Electrode Capability
When the competition snuffs out the Syncrowave 210 burns on, even with difficult to run electrodes used for less than ideal conditions. Increase the DIG setting for stiffer, more penetrating electrodes like E6010.
Low Power Draw
Inverter-based power source provides full welding output from 240 V while drawing less than 30 amps.
Easy-to-Use
1. Turn power on. 2. Select Process: AC TIG, DC TIG, DC Stick or MIG Spool Gun. 3. Set amperage or voltage based on material thickness. Then weld! It’s as easy as 1, 2, 3.
Use it on 120 AND 240 Volt Input Power
Using Miller’s Auto-Line™ technology, the Multi-Voltage Plug (MVP™) allows you to connect to common 120 or 240 V power receptacles without the use of any tools – simply chose the plug that fits the receptacle and connect it to the power cord.
Built-in Running Gear
No need to buy a cart, your Syncrowave 210 gives you maximum portability with an EZ-Change™ low cylinder rack and built-in storage space to better manage your accessories and easily transport everything you need for your project.
Fan-on-Demand™
Allows the fan to run up to 36% less to reduce the amount of contaminants pulled though the machine to help extend the life of the product.
14-Pin Controlled Operator Alternatives
The standard 14-pin connector on your Syncrowave 210 lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
PROCESSES
Stick (SMAW)
Aluminum Welding
TIG AC (GTAW-AC)
TIG DC (GTAW-DC)
TIG (GTAW)

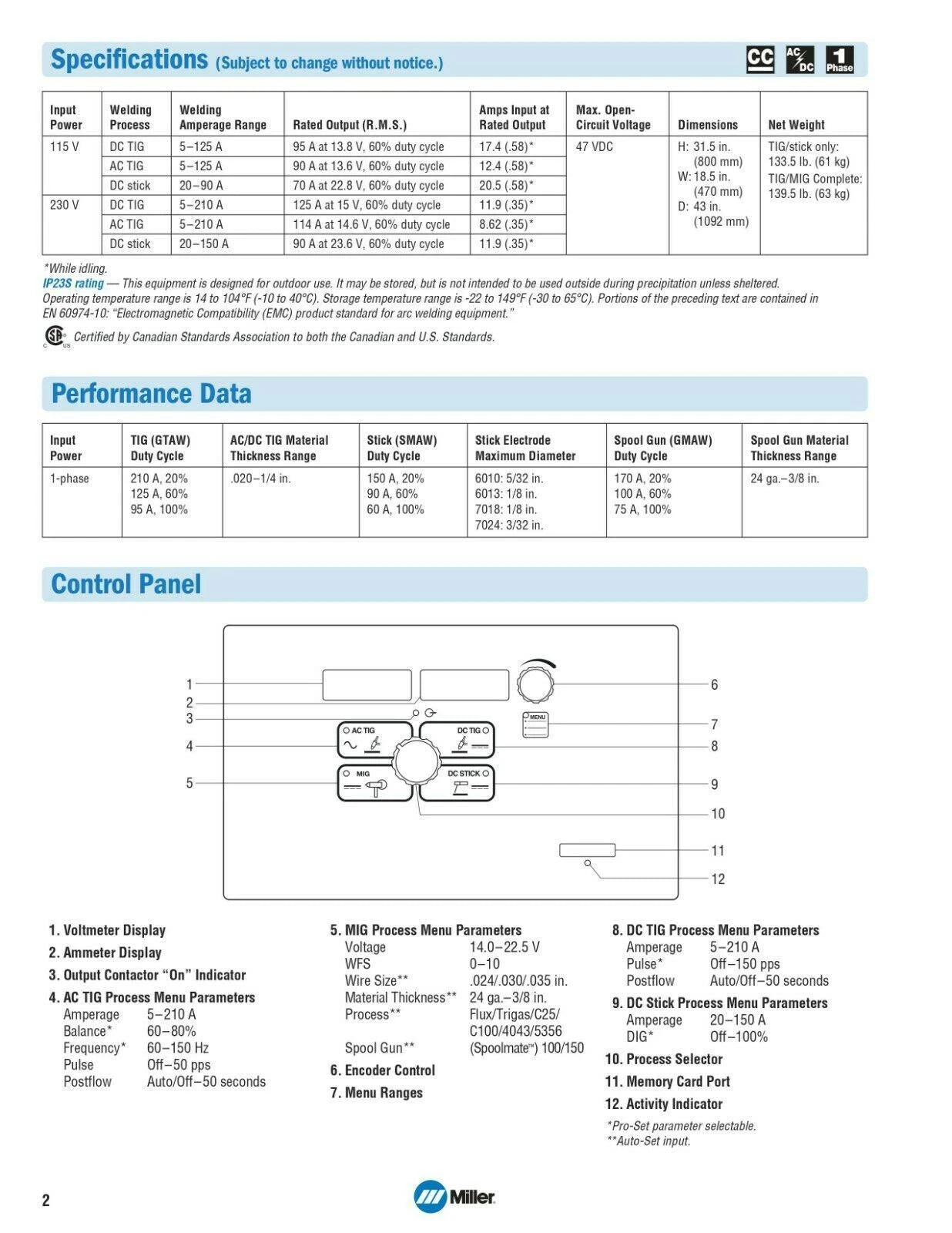

GENERAL SPECIFICATIONS
Title |
Syncrowave® 210 TIG Package |
Industries Interests |
Racing / Customizing / Restoring |
Material Thickness |
Steel 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm) |
Weldable Metals |
Aluminum |
Input Voltage |
110/115/120 V |
Input Phase |
1-Phase |
Input Hz |
50/60 Hz |
Current Type |
AC / DC |
Max Open Circuit Voltage |
47 VDC |
Amperage Min |
5 A |
Amperage Max |
210 A |
Portability |
Running Gear / Cart (Standard) |
Weld Output |
CC |
Net Width |
18.5 in |
Net Height |
31.5 in |
Net Length |
43 in |
Net Weight |
133.5 lbs |
Warranty |
3 Years |
