The Syncrowave 212 is a feature rich TIG power source that gives you the premium arc you expect from Miller. The confidence inspiring LCD display with Auto-Set helps you dial in weld parameters and it’s versatile design provides seamless integration with an optional water cooler or spool gun.
KEY SPECIFICATIONS
Product

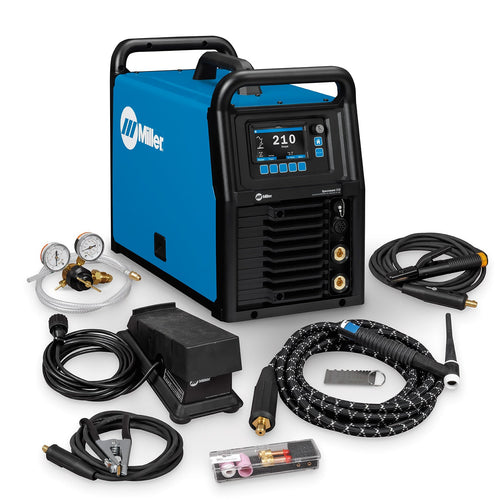

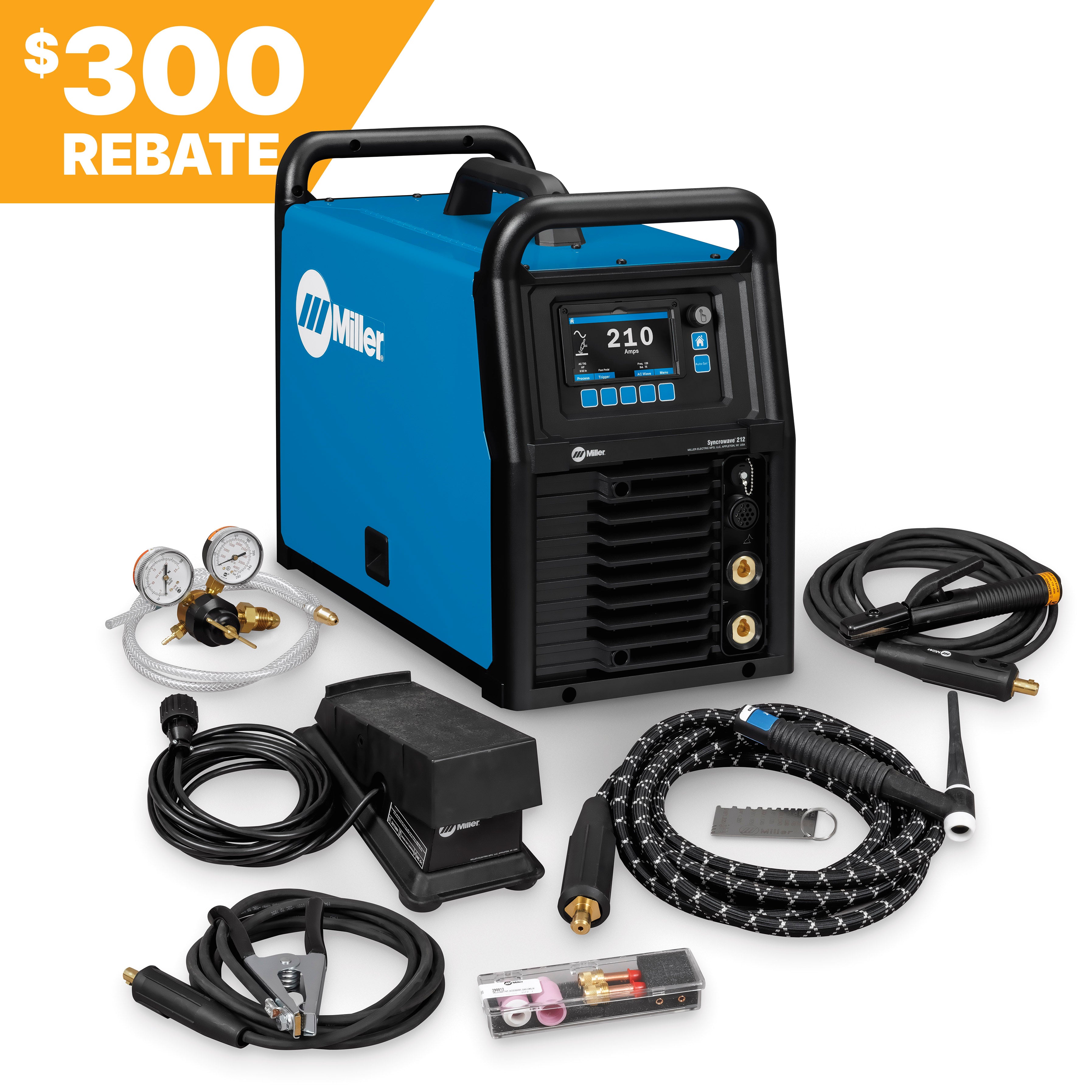

Syncrowave® 212 Air-Cooled Package
Applications
Aluminum Welding
Automotive Welding
Car Restoration
Décor/Furniture
Fabrication
Garage/Shop
How to Aluminum Weld
Metal Art
Off-Road
Stainless Steel
Welding Aluminum
Welding Projects
Industries Interests
Auto Repair
Construction and Fabrication
Racing
Material Thickness
Aluminum 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm)
Mild Steel 16 ga. - 3/8 in. (Stick)
Weldable Metals
Aluminum
Stainless Steel
Steel
Portability
Handle(s)
Running Gear / Cart (Optional)
Features
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
Intuitive Interface LCD Display
Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
1. Turn power on.
2. Select Process: AC TIG, DC TIG, DC Stick or MIG Spool Gun.
3. Set amperage or voltage based on material thickness. Then weld!
It’s as easy as 1, 2, 3.
Dependable Arc Starts
Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.
14-Pin Controlled Operator Alternatives
The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
Processes
Pulsed TIG (GTAW-P)
TIG AC (GTAW-AC)
TIG DC (GTAW-DC)
TIG (GTAW)
Product Literature
AD/4.7 Syncrowave 212 - English
