For fabricators who need more TIG welding productivity and lower operating costs, Miller Syncrowave machines are the energy efficient TIG welding power sources that make it easier for any welder to get more work done.

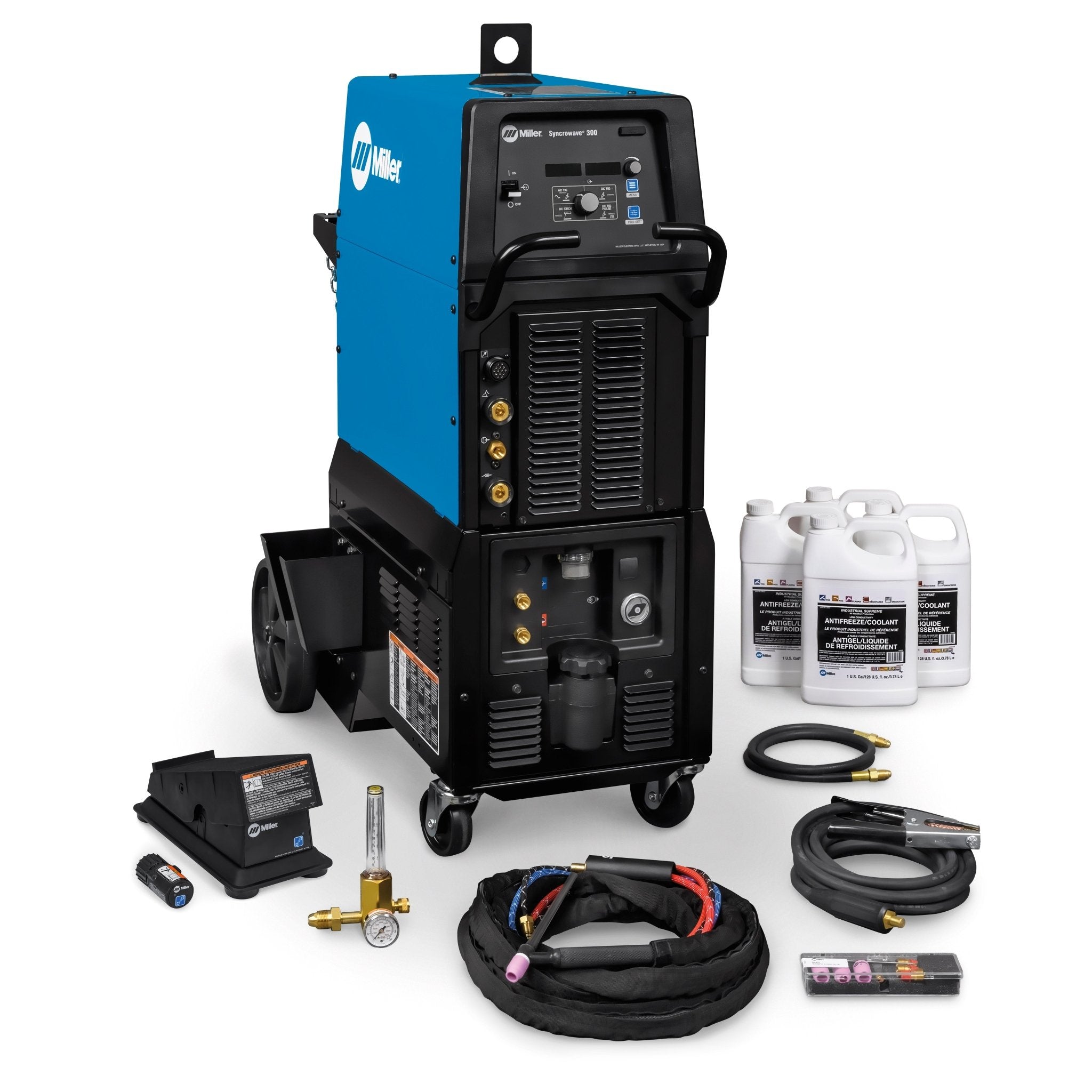

What's Included
- Syncrowave® 300
- Coolmate™ 3S
- Running Gear
- Weldcraft™ W-280 torch kit and accessories (300990)
- Coolant (4 one-gallon bottles of 043810)
- Wireless Foot Control System (301580)
Features
Easy to Use
Intuitive user interface is simple to understand making it easy to adjust parameters. This means less time training new employees so more work gets done.
Pro-Set™ Feature
This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
Auto-Link
Circuit automatically links the power source to primary voltage being applied (208/240/480 V, single- or three-phase).
AC Frequency Control
Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
Simple to Install
Accepts either single- or three-phase input power.
Smaller Footprint
Smaller, lighter machines are easier to move around and improve workplace conditions.
Energy Efficient
Save up to 28 percent on energy costs versus outdated welding equipment.
Better Arc Performance
Deliver more stable arcs and better arc-starting characteristics, making it easy for any welder to get more work done and do better work.
Product Literature
AD/4.25 Syncrowave 300 - English
AD/4.25 Syncrowave 300 - Spanish
Key Specifications
Title
Syncrowave® 300, Wireless Foot Control Complete
Material Thickness
Aluminum 0.015 in. (0.4 mm) - 3/8 in. (9.5 mm)
Steel 0.012 in. (0.3 mm) - 1/2 in. (12.7 mm)
Weldable Metals
Aluminum
Stainless Steel
Steel
Max Open Circuit Voltage
60 VDC
Input Voltage
208 V
220/230/240 V
460/480 V
Input Phase
1- and 3-Phase
