Miller

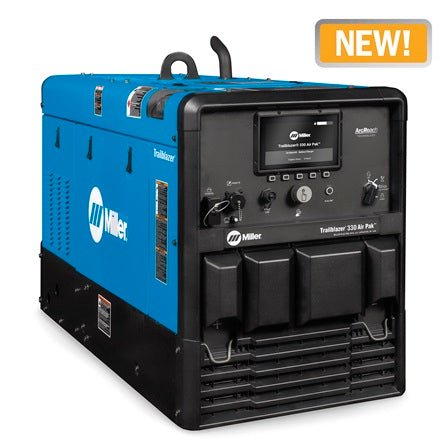

Miller Trailblazer 330 Air Pak Ex Pwr Batt Chrg/Crank Assist 907836

Only 1 left
SKU: 907836 UPC: 715959710008
$19,474.00 USD
-10% $21,724.00 USD $19,474.00 USD
Powerful all-in-one tool designed for repair and construction with multiprocess weld quality, auxiliary power, air compressor and battery charge/crank assist.

Easy to Use

Digital interface speeds machine setup and makes it less complicated.

Exceptional Arc Performance

Easy arc starts and less spatter.

Rotary Screw Compressor

Quiet and durable rotary-screw compressor delivers 30 CFM at 80-160 psi of air at 100% duty cycle while rated at 104° F.  It offers an average of three times the service life of traditional reciprocating compressors. Produces air when you need it; no more down time waiting for an external tank to fill. Airflow can be selected depending on tool requirements. Front panel air pressure adjustment makes it simple to dial in the correct air pressure for specific applications (80-160 psi)

Easy Maintenance

With its intuitive design, the daily maintenance of our Trailblazer engine-driven welder is fast and easy.

Easier mobility and uses less truck space and payload

Over 180 pounds lighter and 13 percent smaller than previous models.

Battery charge/crank assist

Machine provides up to 150 amps of DC power to quickly charge 12- and 24-volt batteries. Jobsite equipment with weak batteries can get up to 300 amps of crank assist power.

Auto-Speed™ technology

Advanced Auto-Speed technology automatically adjusts engine speed to match weld and battery charge demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.

Separate weld and auxiliary power

Full auxiliary power at any setting.

ArcReach® Technology

ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.


Dynamic DIG™

Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.

QuietPulse™

QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.

Excel™ power

Power at idle — a Miller exclusive. Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle. With Excel power you can operate jobsite tools like grinders at quiet, fuel-saving speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Excel power — available only from Miller.

Processes

  • Air Carbon Arc Cutting and Gouging: (CAC-A)
  • Pulsed TIG: (GTAW-P)
  • Flux Cored: (FCAW)
  • Stick: (SMAW)
  • MIG: (GMAW)

General Specifications

Title Miller Trailblazer® 330 Air Pak™ w/Excel™ Power, Battery Charge/Crank Assist
Industries Interests Construction and Fabrication
Heavy Equipment
Amperage 20 A - 330 A
Weldable Metals Aluminum
Stainless Steel
Steel
Rated Carbon Diameter 1/4 in (6.4 mm)
Current Type DC
Max Open Circuit Voltage 107 VDC
Portability Lift Eye (Standard)
Engine Brand Kohler
Engine Idle Speed 2400 RPM
Engine Weld Speed Advanced Auto-Speed(TM) technology: Varies engine speed from 2,400-3,600 rpm to match weld output
Fuel Tank Size 11 Gallon
Fuel Type Gasoline
Horsepower 27 hp
Weld Output CC/CV
Rated Output CC/DC Stick/TIG 314 A at 32.5 V, 100% duty cycle, CV/DC MIG/FCAW 330 A at 30.5 V, 100% duty cycle
Single Phase Auxiliary Continuous Power 10500 W
Single Phase Auxiliary Peak Power 12000 W
Sound Rating 69.5 dB @ 150 amps and 75.3 dB @ max weld
Compressor Brand Rotary-Screw Compressor
Compressor Free Air Delivery 30 cfm (0.85 m3 /min.) at 3,600 rpm / 28 cfm (0.79 m3 /min.) at 3,000 rpm
Compressor Working Pressure 80-160 psig
Compressor Duty Cycle 100%
Compressor Automatic Shutdown High pressure (160 psi)
Applications Aluminum Welding
Fabrication
Field Welding
Industrial Welding
Mobile Fabrication & MRO
Structural Welding
Battery Charge 10-150 A
Crank Assist 300 A, 12/24 V
Warranty 3 Years
Miller's True Blue Warranty
