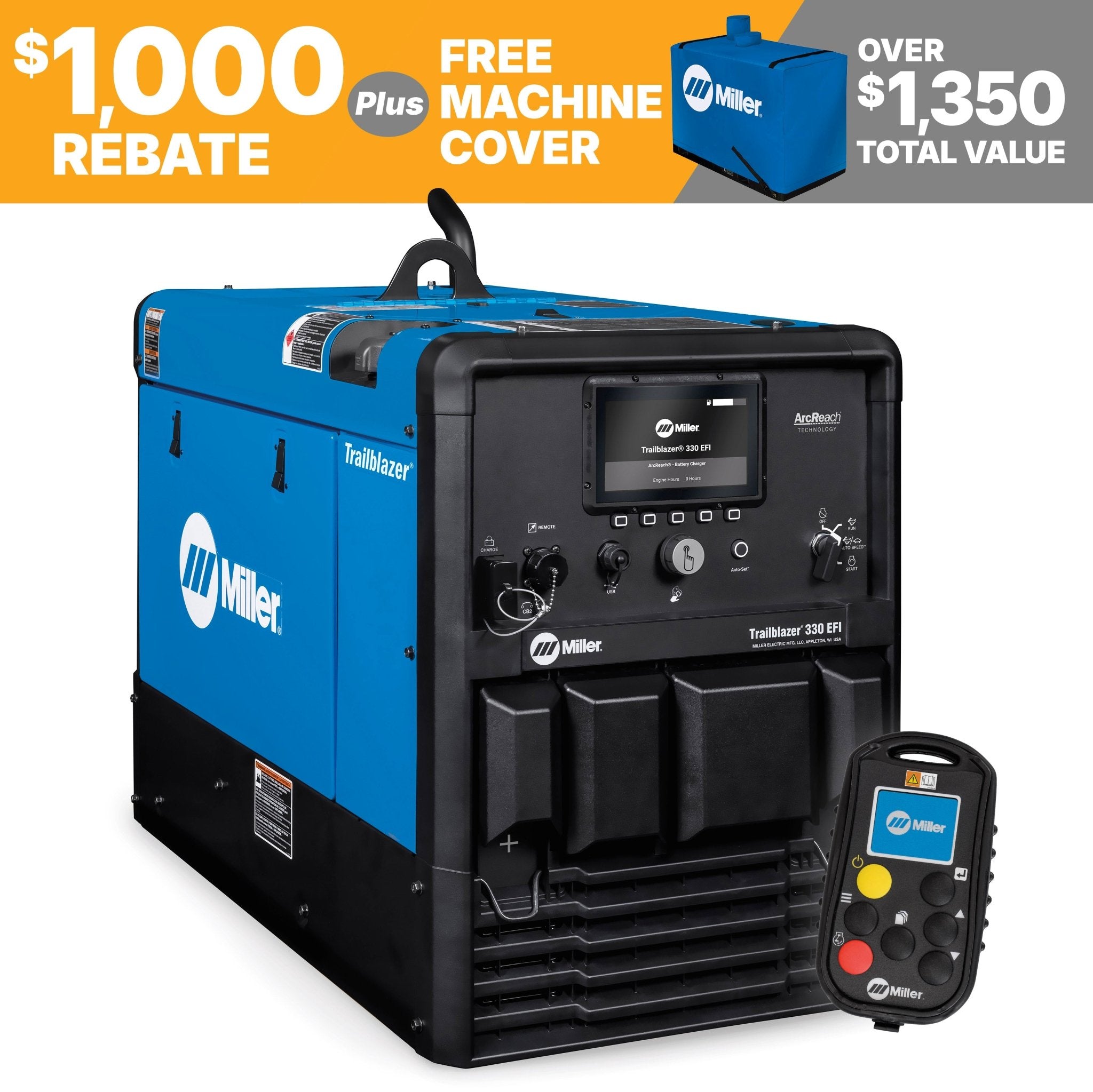

Miller Trailblazer 330 EFI Welder W/Battery Charger, Excel, WIC 907832004
Atlas Welding Supply Satisfaction Guarantee!
Regular price
$11,419.00 USD
Couldn't load pickup availability
Trailblazer 330 (Kohler) EFI w/Excel™ Power, Battery Charge/Crank Assist & Wireless Interface Control
Reliable engine-driven welders with unbeatable arc performance, providing the smoothest, most stable arc in the industry. Trailblazer exclusive technologies — advanced Auto-Speed™ and optional Excel™ power — deliver superior runtimes, increase fuel efficiency, and improve engine-driven welder performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.
Features:
- LCD with Buttons and Knob
- Intuitive digital interface with Auto-Set™ makes it quick and easy to precisely set weld parameters for any process.
- Lighter and Smaller - The Trailblazer 330 weighs less than any other engine-driven welder in its class. It’s over 80 pounds lighter and 13% smaller than previous models, so it’s easier to move and takes up less space on trucks.
- Advanced Auto-Speed™ technology automatically varies engine speed from 1,800–3,600 rpm to match weld demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.
- Predictive Maintenance
- Direct Connect Spool Gun Connection
- ArcReach® for parameter control at the wire feeder or pendant without needing a control cord.
- Dynamic DIG™ to optimize arc control for stick welding applications.
- Pulsed TIG with QuitePulse™creating a slower, more fluid transition between backgrounf and peak amperage.
- Excel™ Power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle.
- Battery charge/crank assist to reduce downtime on 12/24-volt batteries
- Wireless Interface Control so you get full control of your machine in the palm of your hand, from wherever you are on the jobsite, so you can work hassle free.
Not Included
- Weld leads
Processes
- Air Carbon Arc Cutting and Gouging (CAC-A)
- Pulsed TIG (GTAW-P)
- Flux Cored (FCAW)
- Stick (SMAW)
- MIG (GMAW)
- TIG DC (GTAW-DC)
Hurry buy this machine and claim a $1,000 Rebate Offer Valid - March 31, 2025. For Full Instructions On How To claim Your Miller Rebate Click Here
Product Literature
ED/4.76 Trailblazer 330 - English
ED/4.76S Trailblazer 330 - Spanish
General Specifications
| Title | Miller Trailblazer 330 EFI Welder W/Battery Charger, Excel, WIC 907832004 |
|---|---|
| Industries Interests | Construction and Fabrication Heavy Equipment |
| Amperage | 20 A - 330 A |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Rated Carbon Diameter | 1/4 in (6.4 mm) |
| Current Type | DC |
| Max Open Circuit Voltage | 107 VDC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Engine Brand | Kohler |
| Engine Idle Speed | 2400 RPM |
| Engine Weld Speed | Advanced Auto-Speed(TM) technology: Varies engine speed from 2,400-3,600 rpm to match weld output |
| Fuel Tank Size | 11 Gallon |
| Fuel Type | Gasoline |
| Horsepower | 23 hp |
| Weld Output | CC / CV |
| Rated Output | CC/DC Stick/TIG 330 A at 30 V, 100% duty cycle, CV/DC MIG/FCAW 325 A at 30.25 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 10500 W |
| Single Phase Auxiliary Peak Power | 12000 W |
| Sound Rating | 65 dB @ idle and 73.5 dB @ max weld |
| Applications | Aluminum Welding Fabrication Mobile Fabrication & MRO Structural Welding |
| Warranty | 3 Years Miller's True Blue Warranty |
