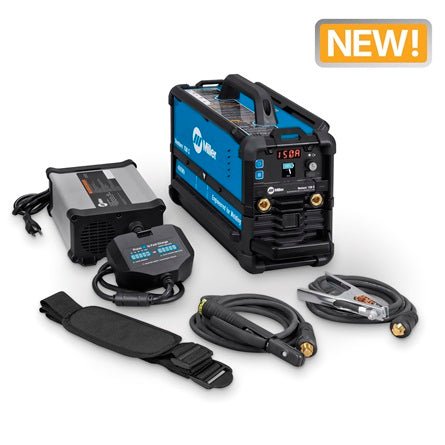

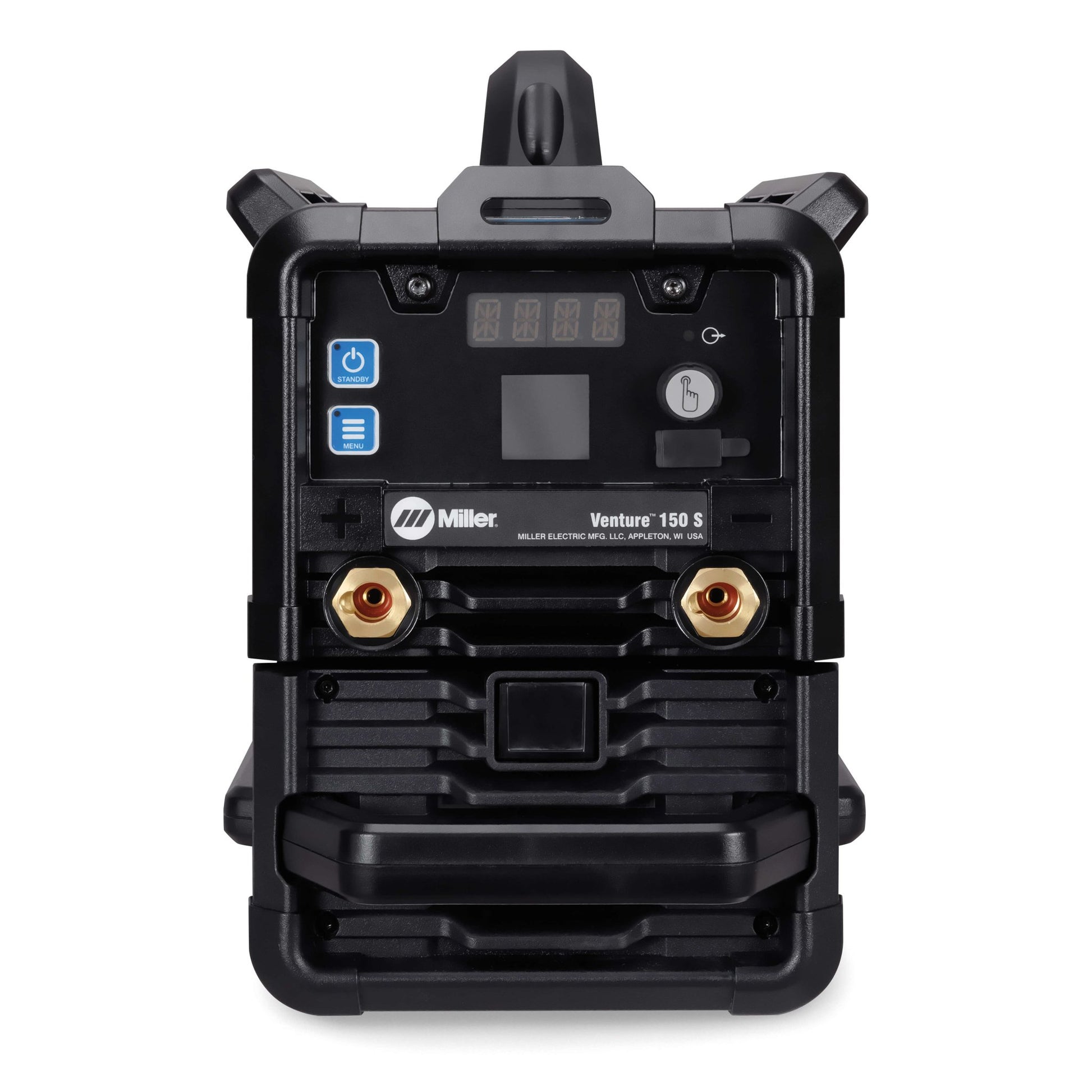

The Venture 150 S is a lightweight and compact battery powered Stick/TIG welder with swappable battery packs engineered specifically for welding.
KEY SPECIFICATIONS
Applications
Mobile Fabrication & MRO
Industries
Construction and Fabrication
Max Open-Circuit Voltage
80 VDC
Battery Charging Options
Fast: 0-95% in < 30 mins.
Standard: 0-95% in < 60 mins.
Weldable Metals
Stainless Steel
Steel
Amperage Range
Stick: 20 - 150 A
TIG: 10 - 160 A
Material Thickness
Steel 0.020 in. (0.5 mm) - 3/16 in. (4.8 mm)
Battery Lifespan
Over 1,000 charge cycles under typical use cases and with proper care
TIG Arc Time Per Charge
15.54 minutes at 100A
8.33 minutes at 160A
Stick Electrode Consumption Per Charge
13.45 3/32 in. 7018 at 80A
14.49 3/32 in. 6010 at 60A
8.021 1/8 in. 7018 at 110A
8.14 1/8 in. 6010 at 90A
5.79 1/8 in. 7018 at 150A
5.57 5/32 in. 6010 at 120A
Input Voltage - Machine
57.6 VDC
Faster setup and pack-up saves up to 250 hours annually — that’s more time for welding.
Light, convenient and easy to carry between job sites.
Engineered Specifically For Welding
Swappable battery packs so you can weld all day.
100% duty cycle at maximum output
6010 Stick Electrode Capability
Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
Adaptive control provides positive arc starts without sticking.
Provides arc starting that minimizes contamination of the electrode without the use of high frequency.
Batteries are lightweight and swappable, so users can weld anywhere
Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
Thermal Overload Protection
Helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
A simple design that reduces the open-circuit voltage to 12-16 volts when the welding power source is not in use. Can be enabled or disabled. Some jobs require this.
Detects if the electrode is stuck to the work piece and turns the welding output off to safely and easily remove the electrode.
Processes
Stick (SMAW)
TIG (GTAW)
Product Literature
BP/1.0 Venture 150 S - English
