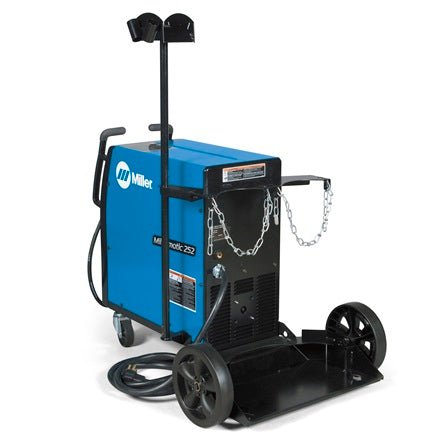

Miller Millermatic 252 MIG Welder W/ Spoolgun Aluminum 230/460/575V 951961
Regular price
$6,675.00 USD
Couldn't load pickup availability
Share This Product

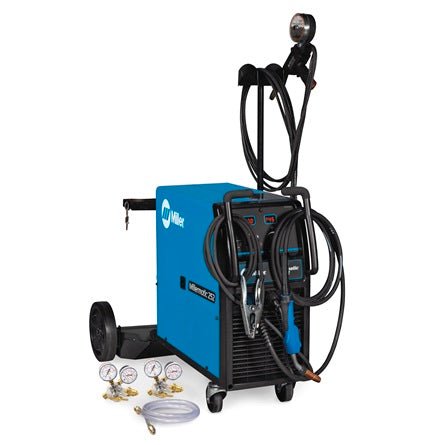

WHAT'S INCLUDED
- Millermatic® 252
- 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/ Bernard® AccuLock™ MDX consumables for .030/.035 in. (0.8/0.9 mm) wire
- 10 ft (3 m) power cord and plug
- 10 ft (3 m) work cable and clamp
- Argon mix regulator/flow gauge and hose
- Extra contact tips
- Factory-installed running gear with EZ-Change™ Single Low Cylinder Rack
- .030/.035 in reversible drive rolls
- Spoolmatic 30A #130831
- Dual EZ-Change™ Low Cylinder Rack w/ Elevated Gun and Cable Rack #300337
Not Included
- Shielding gas (for welding with solid wire [GMAW])
- Flux cored drive rolls (for welding with flux cored wire [FCAW])
- Welding wire
- Personal safety products (helmet, gloves)

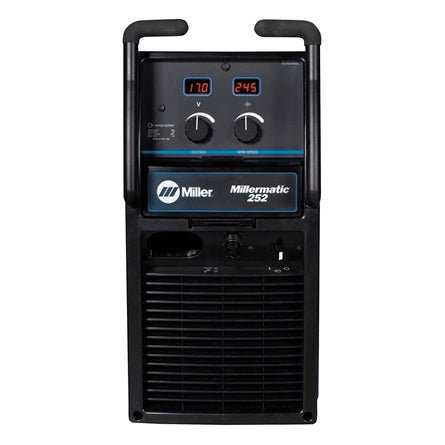

Large, Digital Front Panel with Built-in Digital Timers Menu
Enables operator to preset voltage and wire feed speed. Standard run-in, pre/postflow, burnback, spot/delay (stitch) timer menu.
Auto Gun Detect™
Miller's Auto Gun Detect allows operator to simply pull trigger on MIG gun, spool gun or push/pull gun. Automatically detects and recalls the voltage, wire feed speed and timer of the active gun.
Push-Pull Gun Direct Connect
Compatible with Spoolmate 200 Series spool gun with wire feed speed control on the gun. This saves time by reducing trips back to the machine. Also compatible with more industrial Spoolmatic 15A or 30A spool gun.

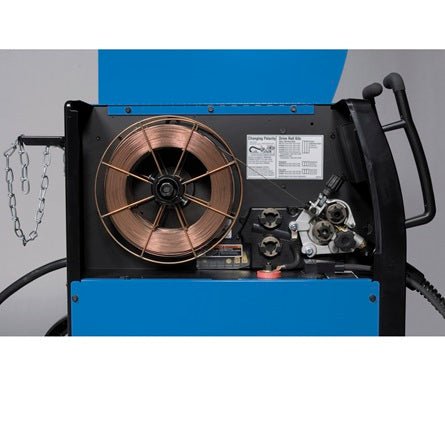

Angled, Dual-Gear Driven, Cast Aluminum Drive System
Features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob
EZ-Change™ Low Cylinder Rack
Allows operators to easily roll cylinders on and off of rack - no need to lift cylinders.
EZ-Access™ Consumable Compartment and Parameter Chart.
Set weld parameters right the first time with convenient new flip-down compartment that provides fast access to parameter chart and consumables.
PROCESSES
Flux Cored (FCAW)
MIG (GMAW)
Product Literature
DC/12.49 Millermatic 252 – English
DC/12.49S Millermatic 252 – Spanish
DC/12.49F Millermatic 252 – French
GENERAL SPECIFICATIONS
| Title | Millermatic® 252 MIG Welder Spoolgun Aluminum Package 230/460/575V - 951961 |
|---|---|
| Industries Interests | Racing Farm and Ranch Manufacturing Construction and Fabrication |
| Amperage | 30 A - 300 A |
| Material Thickness | Aluminum 14 ga. (1.9 mm) - 3/8 in. (9.5 mm) Mild Steel 22 ga. (0.6 mm) - 1/2 in. (12.7 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 60 Hz |
| Current Type | DC |
| Rated Output | 200 Amps at 24 VDC, 60% duty cycle,250 Amps at 26.5 VDC, 40% duty cycle |
| Max Open Circuit Voltage | 38 VDC |
| Wire Feed Speed | 1.3 m/min - 17.8 m/min 50 IPM - 700 IPM |
| Wire Diameter | Stainless 0.023 in. - 0.045 in. Stainless 0.6 mm. - 1.2 mm. Solid Steel 0.6 mm. - 1.2 mm. Solid Steel 0.023 in. - 0.045 in. Flux Cored 0.03 in. - 0.045 in. Flux Cored 0.8 mm. - 1.2 mm. |
| Spool Size | 12 in (305 mm) |
| Portability | Running Gear / Cart (Standard) |
| Weld Output | CV |
| Applications | Welding Education and Training |
| Net Width | 28 in |
| Net Height | 30 in |
| Net Length | 40 in |
| Net Weight | 205 lbs |
| Warranty | Miller's True Blue Warranty |
