An efficient multi-process welder curated for professionals and welders of all experience levels to grow skills in MIG, flux cored, stick, and DC TIG welding. Quick and easy setup allows operators to have faster uptime and weld with confidence.
KEY SPECIFICATIONS
Title
Multimatic® 235 Multiprocess Welder - 240V
Applications
Aluminum Welding
Material Thickness
Mild Steel 24 ga. - 3/8 in. (TIG)
Mild Steel 24 ga. - 3/8 in. (MIG)
Mild Steel 16 ga. - 3/8 in. (Stick)
Aluminum 18 ga. - 3/8 in (MIG)
Weldable Metals
Aluminum
Stainless Steel
Steel
Max Open Circuit Voltage
54 VDC
Wire Feed Speed
1.5 m/min - 15.2 m/min
60 m/min - 600 m/min
Rated Output
CV: MIG/Flux 170 Amps at 22.5 V, 60% duty cycle
CC: Stick 150 Amps at 26 V, 60% duty cycle
CC: DC TIG 180 Amps at 17.2 V, 60% duty cycle
Portability
Handle(s)
Running Gear / Cart (Optional)
Input Voltage
208 V
220/230/240 V
WHAT'S INCLUDED
- Multimatic® 235 Multiprocess Welder - 240V
- Power source with 7 ft. (2.1 m) power cord
- 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/ Bernard® AccuLock™ MDX consumables for .030/.035 in. (0.8/0.9 mm) wire
- 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
- 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
- Flow gauge regulator and gas hose for argon or AR/CO2 mix
- .030/.035 in. (0.8/0.9 mm) reversible drive rolls
- Extra contact tips
- Material Thickness Gauge
Features
Multiprocess Capabilities of MIG, Flux Cored, DC Lift Arc TIG and DC Pulsed TIG.

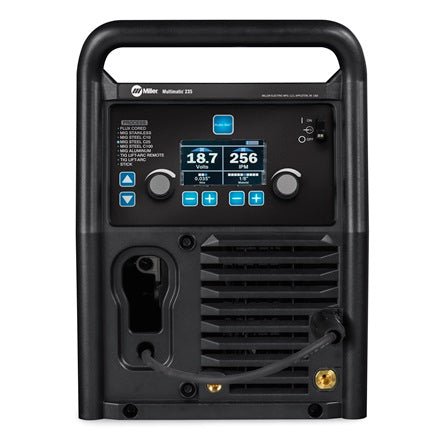

Easy-to-understand interface
4.3-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time.
Portability - Machine only weighs 63 lb
Weight is reduced to make it easier to take the welder to where the work is, plus the added convenience of one machine versus two or more.
Optional EZ-Latch™ running gear
Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability.
Millers Gun-On-Demand™ allows operators to simply pull the trigger on MIG gun or Spoolgun. Automatically detects and recalls the voltage, wire feed speed of the active gun.
MDX-250 MIG Gun w/ AccuLock™ MDX consumables
AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ MDX contact tips provide superior MIG arc performance.
Auto-Set™ Technology
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
The Multimatic will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series engne-driven welder. Limited output will occur when used with smaller generators.
Processes
Stick (SMAW)
TIG DC (GTAW-DC)
Flux Cored (FCAW)
MIG (GMAW)
Multiprocess
