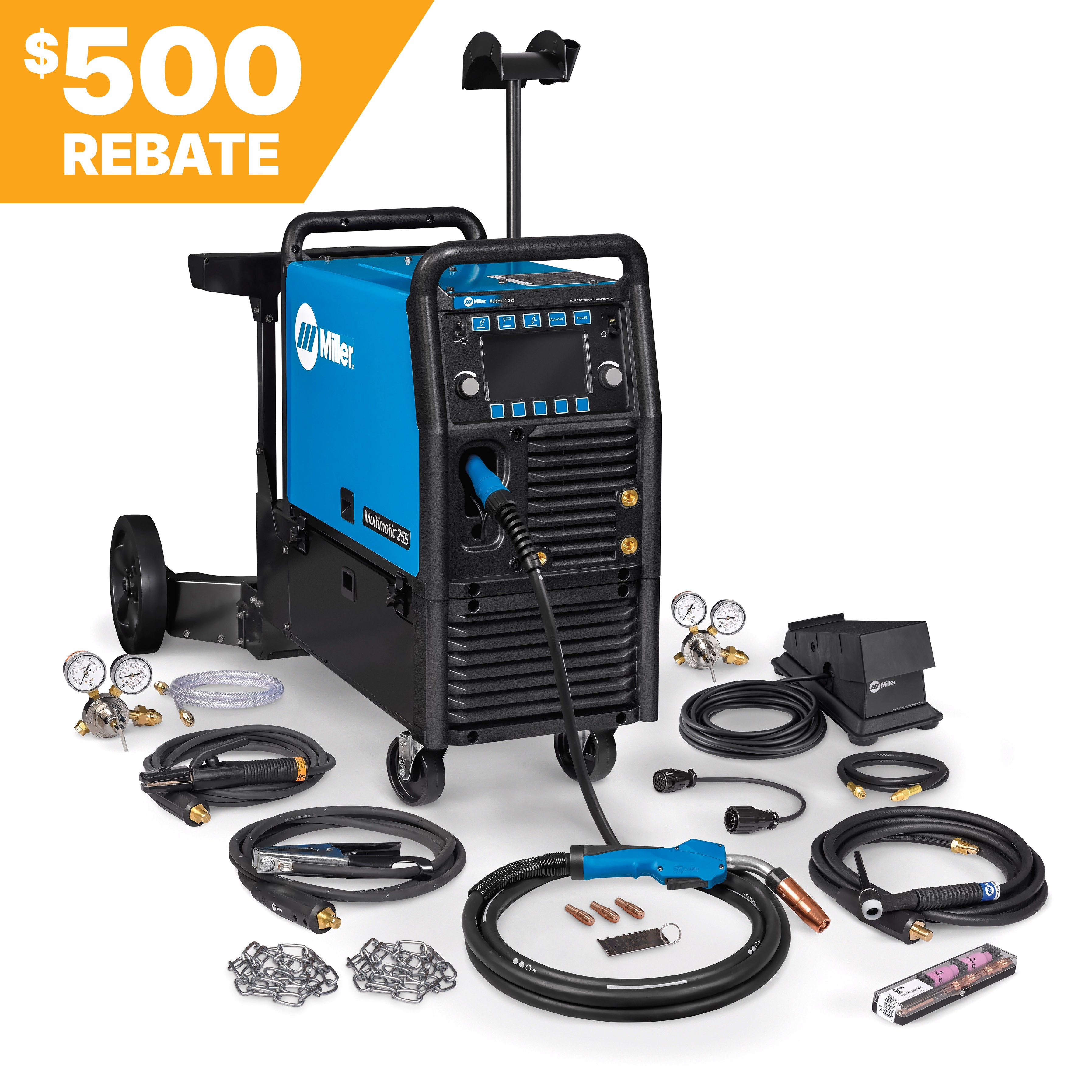

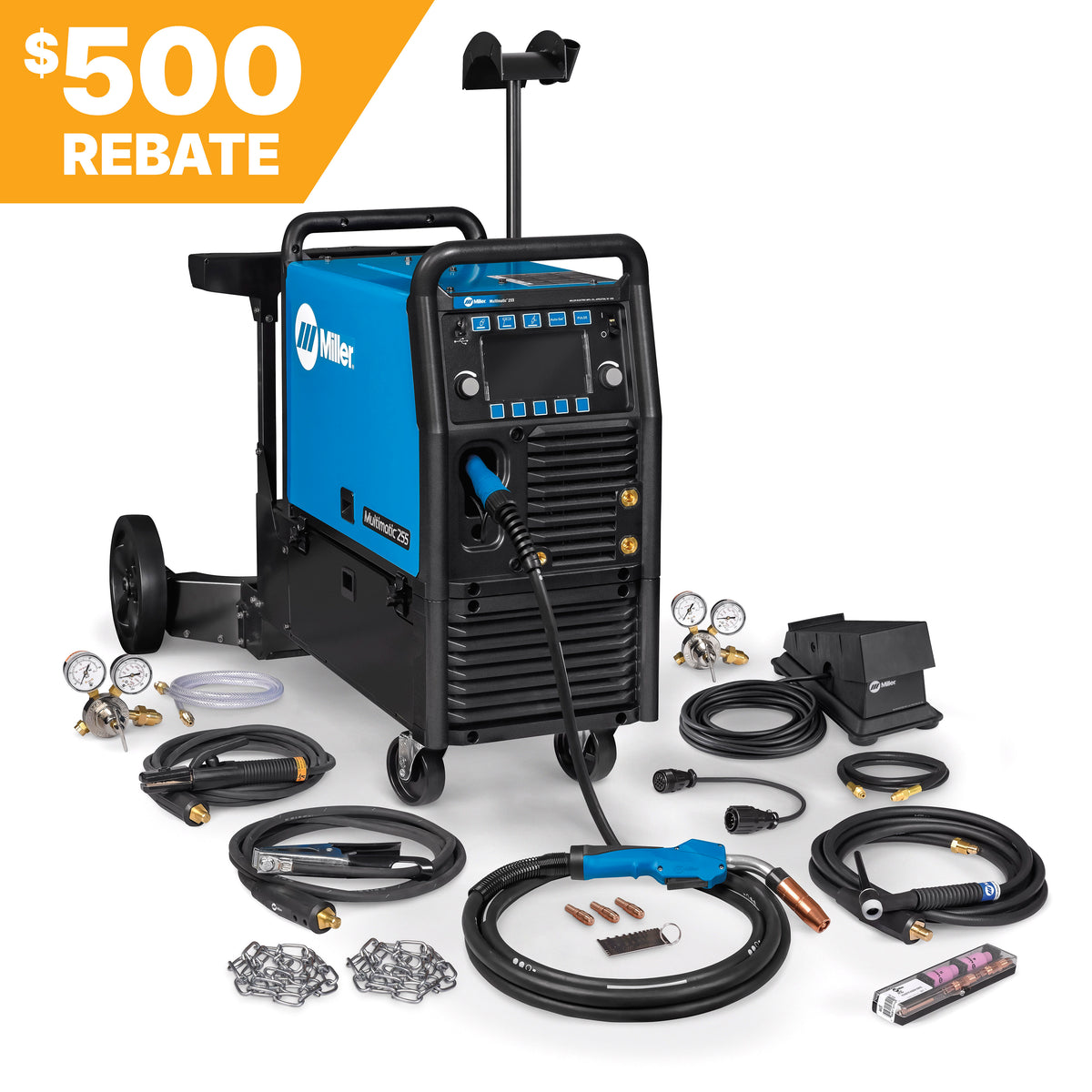

Miller Multimatic 255 Multiprocess Welder w/ EZ-Latch Dual Cylinder Running Gear & TIG Kit 208-575V 951768
Miller Multimatic 255 Multiprocess Welder w/ EZ-Latch Dual Cylinder Running Gear & TIG Kit 208-575V 951768
Miller Multimatic 255 Multiprocess Welder w/ EZ-Latch Dual Cylinder Running Gear & TIG Kit 208-575V 951768
Miller Multimatic 255 Multiprocess Welder w/ EZ-Latch Dual Cylinder Running Gear & TIG Kit 208-575V 951768
Miller Multimatic 255 Multiprocess Welder w/ EZ-Latch Dual Cylinder Running Gear & TIG Kit 208-575V 951768
Miller Multimatic 255 Multiprocess Welder w/ EZ-Latch Dual Cylinder Running Gear & TIG Kit 208-575V 951768

Miller Multimatic 255 Multiprocess Welder w/ EZ-Latch Dual Cylinder Running Gear & TIG Kit 208-575V 951768

Vendor
Miller
Regular price
$5,669.00
Regular price
$5,482.00
Sale price
$5,669.00
Unit price
per
Availability
Sold out

Spec Sheet

WHAT'S INCLUDED

  • Power source with 10 ft. (3 m) industrial power cord
  • 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ S consumables for .035/.045 in. (0.9/1.2 mm) wire
  • 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
  • 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
  • Flow gauge regulator and gas hose for argon or AR/CO2 mix
  • .035/.045 in. (0.9/1.2 mm) reversible drive rolls
  • Extra contact tips
  • Material Thickness Gauge
  • EZ-Latch™ dual cylinder running gear with elevated gun and cable rack
  • Multimatic 255 TIG kit
  • Two chains to secure gas cylinders
  •




MDX-250 MIG Gun w/ AccuLock™ S consumables

AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.

2 Drive Roll Industrial Wirefeed System

Cast Aluminum 2 Drive Roll system with interchangeable drivesrolls provides consistent wire feed from the start of the weld to the finish.



Versatility

Multiprocess Capabilities of MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG and DC Pulsed TIG



Easy-to-understand interface

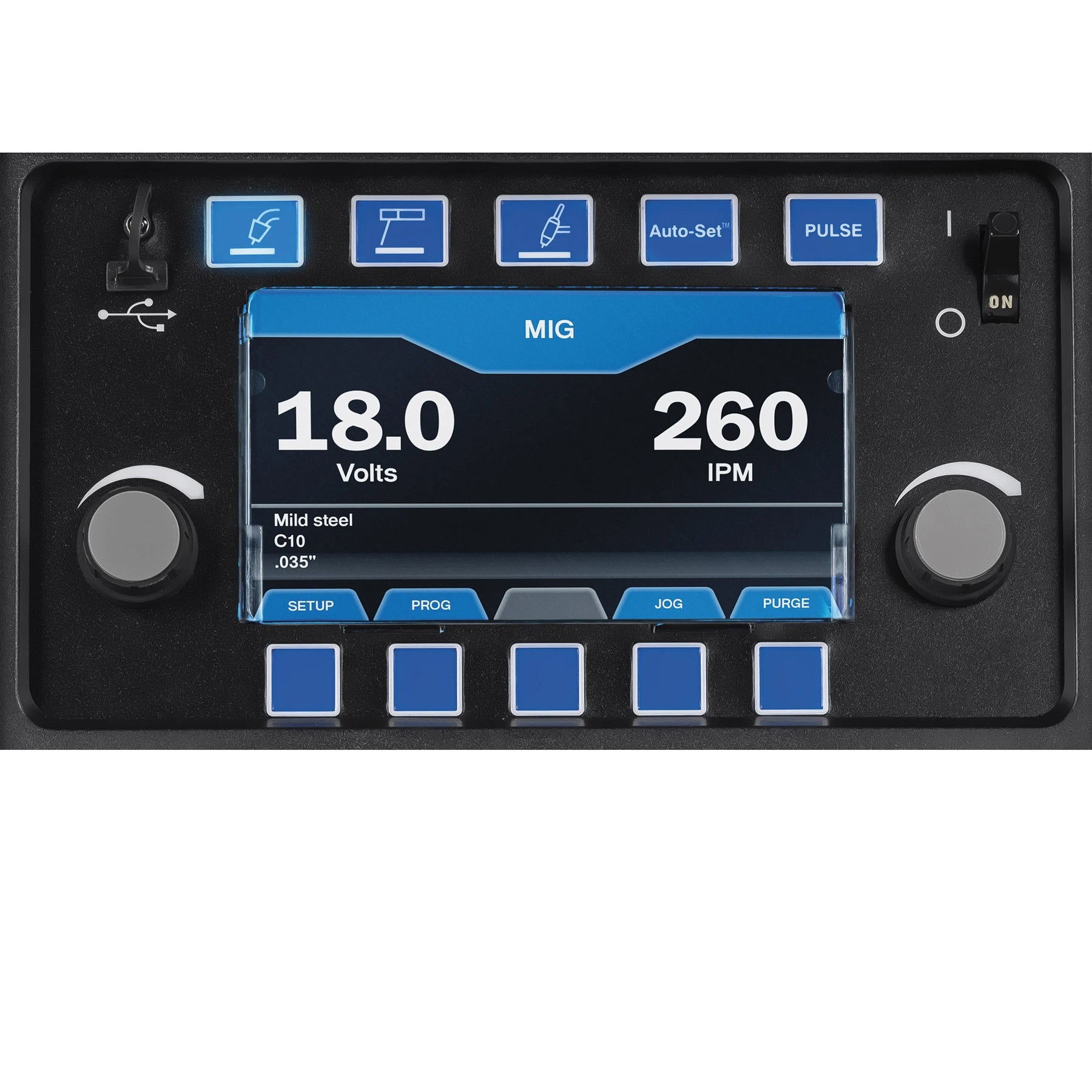

7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time



Auto-Line™ Technology

For portability and reliability this inverter power supply allows for any single-phase input voltage hookup (208–575 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.



Pulsed MIG welding delivers higher quality

Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past



Auto-Set™ Elite

Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.



Program mode allows easy save and recall of favorite weld settings

Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.



Portability - Machine only weighs 84 lb

Weight is reduced by more than 50 percent compared to transformer welding machines



EZ-Latch™ Dual Cylinder Rack with Elevated Gun and Cable Rack

Quickly disconnects from the machine and enables portability. Dual cylinder rack and storage compartment. Allows operator to easily store two gas cylinders. Includes elevated gun and cable rack to keep cables off the floor and tangle free.



Generator Compatible

The Multimatic 255 will be able to operate and provide full output when powered by generators with 12000 Watt (12K) output or higher. Limited output will occur when used with smaller generators.




Specifications

PRODUCT LITERATURE

DC/12.9 Multimatic 255 - English

PROCESSES

Aluminum Welding

Flux Cored (FCAW)

MIG (GMAW)

Multiprocess

Stick (SMAW)

TIG DC (GTAW-DC)

GENERAL SPECIFICATIONS

Title

Multimatic® 255 Multiprocess Welder w/ EZ-Latch™ Dual Cylinder Running Gear & TIG Kit - 208-575V

Industries Interests

Auto Repair
Boat / Yacht
Commercial Truck and Trailer
Construction
Education / Training
Fabrication
Farm and Ranch
Maintenance and Repair - Field Operations
Maintenance and Repair - In Plant
Manufacturing
Metal Art / Sculptures
Racing / Customizing / Restoring

Material Thickness

Mild Steel MIG 22 ga |TIG 24 ga | Stick 16 ga - MIG 1/2 in. | TIG 3/8 in. | Stick 5/16 in.

Weldable Metals

Aluminum
Stainless Steel
Steel

Input Voltage

208 V
220/230/240 V
460/480 V
575 V

Input Phase

1-Phase

Input Hz

50/60 Hz

Input Amperage

34.7

Current Type

DC

Max Open Circuit Voltage

81 VDC

Amperage Range

Amperage Min Max 5 A - 350 A

Portability

Handle(s)
Running Gear / Cart (Standard)

Weld Output

CC / CV

Warranty

Miller's True Blue Warranty
