A versatile welder built for professionals in the manufacturing, fabrication, and education industries. This compact machine offers MIG, DC TIG, stick, and flux-cored capabilities.
KEY SPECIFICATIONS
Title
Multimatic® 255 Multiprocess Welder w/ EZ-Latch™ Dual Cylinder Running Gear & TIG Kit - 208-575V
Applications
Aluminum Welding
Fabrication
Mobile Fabrication & MRO
Welding Education and Training
Industries
Racing
Farm and Ranch
Auto Repair
Manufacturing
Construction and Fabrication
Material Thickness
Mild Steel 22 ga. - 1/2 in. (MIG)
Mild Steel 24 ga. - 3/8 in. (TIG)
Mild Steel 16 ga. - 5/16 in. (Stick)
Aluminum 18 ga. - 1/2 in. (MIG)
Weldable Metals
Aluminum
Stainless Steel
Steel
Max Open Circuit Voltage
81 VDC
Portability
Handle(s)
Running Gear / Cart (Optional)
Input Voltage
208 V
220/230/240 V
460/480 V
575 V
WHAT'S INCLUDED
- Multimatic® 255 Multiprocess Welder
- Power source with 10 ft. (3 m) industrial power cord
- 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ S consumables for .035/.045 in. (0.9/1.2 mm) wire
- 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
- 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
- Flow gauge regulator and gas hose for argon or AR/CO2 mix
- .035/.045 in. (0.9/1.2 mm) reversible drive rolls
- Extra contact tips
- Material Thickness Gauge
- EZ-Latch™ dual cylinder running gear with elevated gun and cable rack
- Multimatic 255 TIG kit
- Two chains to secure gas cylinders
Features
MDX-250 MIG Gun w/ AccuLock™ S consumables
AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.
Multiprocess Capabilities of MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG and DC Pulsed TIG.

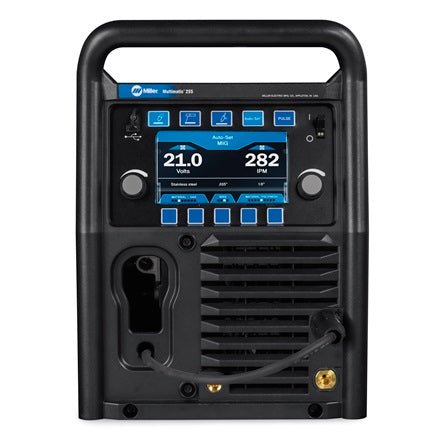

Easy-to-understand interface
7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time.
Pulsed MIG welding delivers higher quality
Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past.
Program mode allows easy save and recall of favorite weld settings
Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene..
Portability - Machine only weighs 84 lb
Weight is reduced by more than 50 percent compared to transformer welding machines.
EZ-Latch™ Dual Cylinder Rack with Elevated Gun and Cable Rack
Quickly disconnects from the machine and enables portability. Dual cylinder rack and storage compartment. Allows operator to easily store two gas cylinders. Includes elevated gun and cable rack to keep cables off the floor and tangle free.
The Multimatic 255 will be able to operate and provide full output when powered by generators with 12000 Watt (12K) output or higher. Limited output will occur when used with smaller generators.
6010 Stick Electrode Capability
Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
Auto-Set™ Technology
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
Processes
Air Carbon Arc Cutting and Gouging (CAC-A)
Stick (SMAW)
Stick (SMAW)
TIG DC (GTAW-DC)
Flux Cored (FCAW)
MIG (GMAW)
Multiprocess
