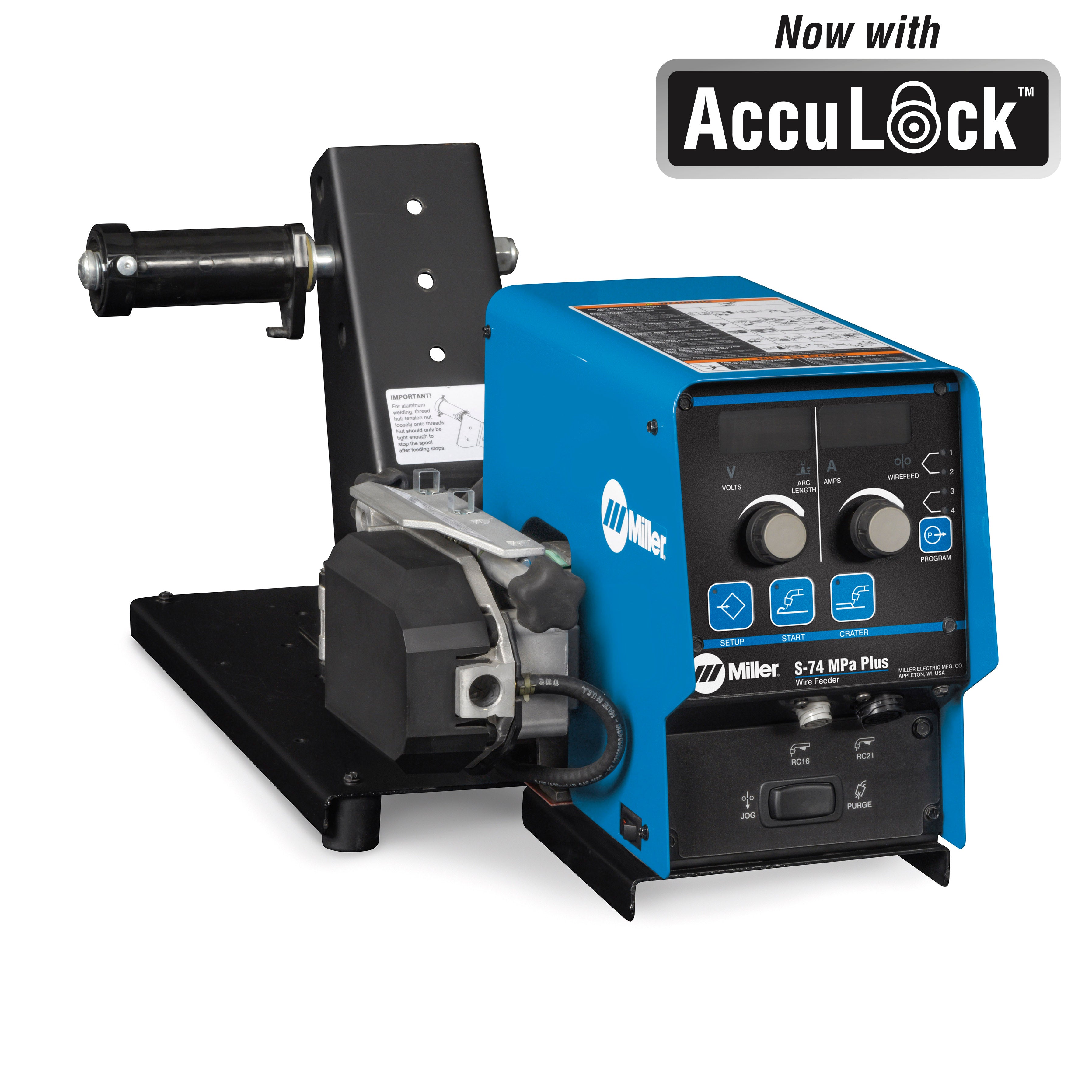

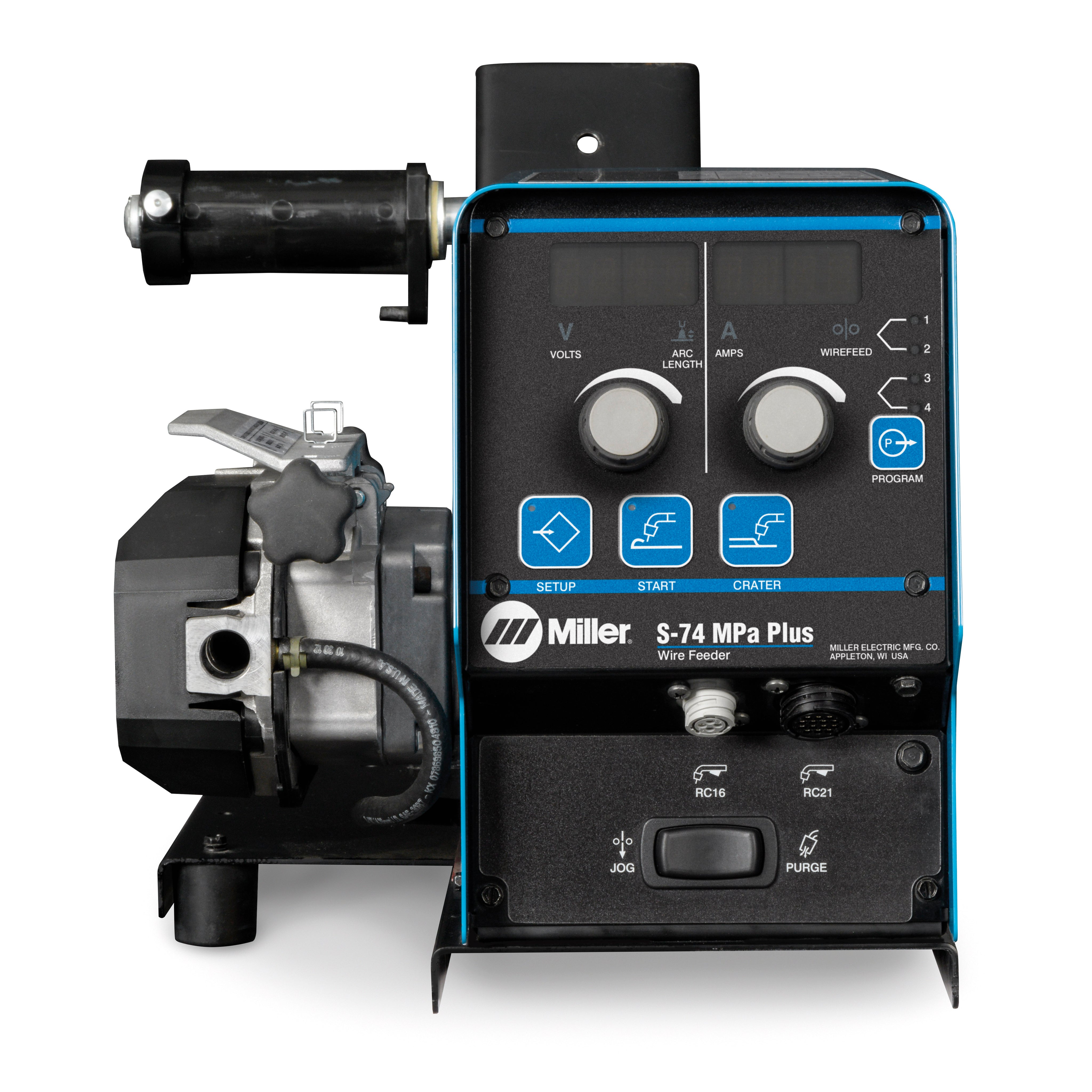

S-74 MPa Plus (Single)

Expanded capabilities from 74D, adds push-pull aluminum capabilities. Optimized with Invision™ MPa or XMT® MPa power sources.

• Accu-Mate™
• Properly seats the MIG gun power pin for best feeding performance.
• Alumination™
• Gives you the ability to use the extended reach of a push-pull system for consistent, versatile and dependable aluminum wire feeding.
• Digital Meters
• Ensure accuracy when presetting and reading actual voltage, amperage and wire feed speed.
• Remote Voltage Control
• Allows you to set both voltage and wire feed speed at the feeder, saving time and increasing weld quality because optimal weld parameters are easy to set.
• Complete Your System
• Dedicated XR™-Pistol Plus and XR-Aluma-Pro™ Plus guns work with this feeder to coordinate wire feed speed of the gun and the feeder. This provides optimized aluminum feeding and welding performance.
• Additional features when used with Invision MPa or XMT MPa power sources
• Synergic Pulsed MIG. As wire speed increases/decreases, pulse parameters also increase/decrease to match the right amount of power needed, eliminating the need to make additional adjustments. Profile Pulse™ provides TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.
• Remote Configurations
• Remote wire feeder control boxes and wire drive assemblies are available for non-Miller boom applications.
• AccuLock S Consumables
• AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!
• Trigger Schedule Select
• Trigger schedule select (SCHD) allows the operator to select the alternative schedule by quickly tapping the gun trigger when not welding. Useful when switching between two welding parameters is needed.
