Spec Sheet
Processes
Plasma (PAC)
General Specifications

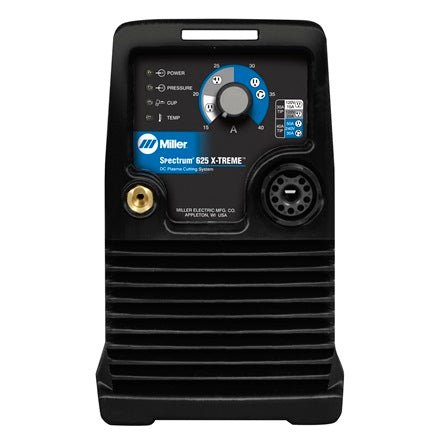

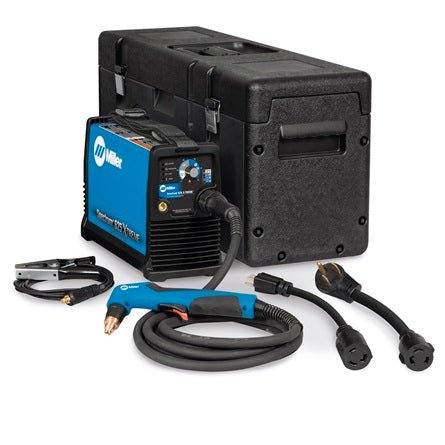

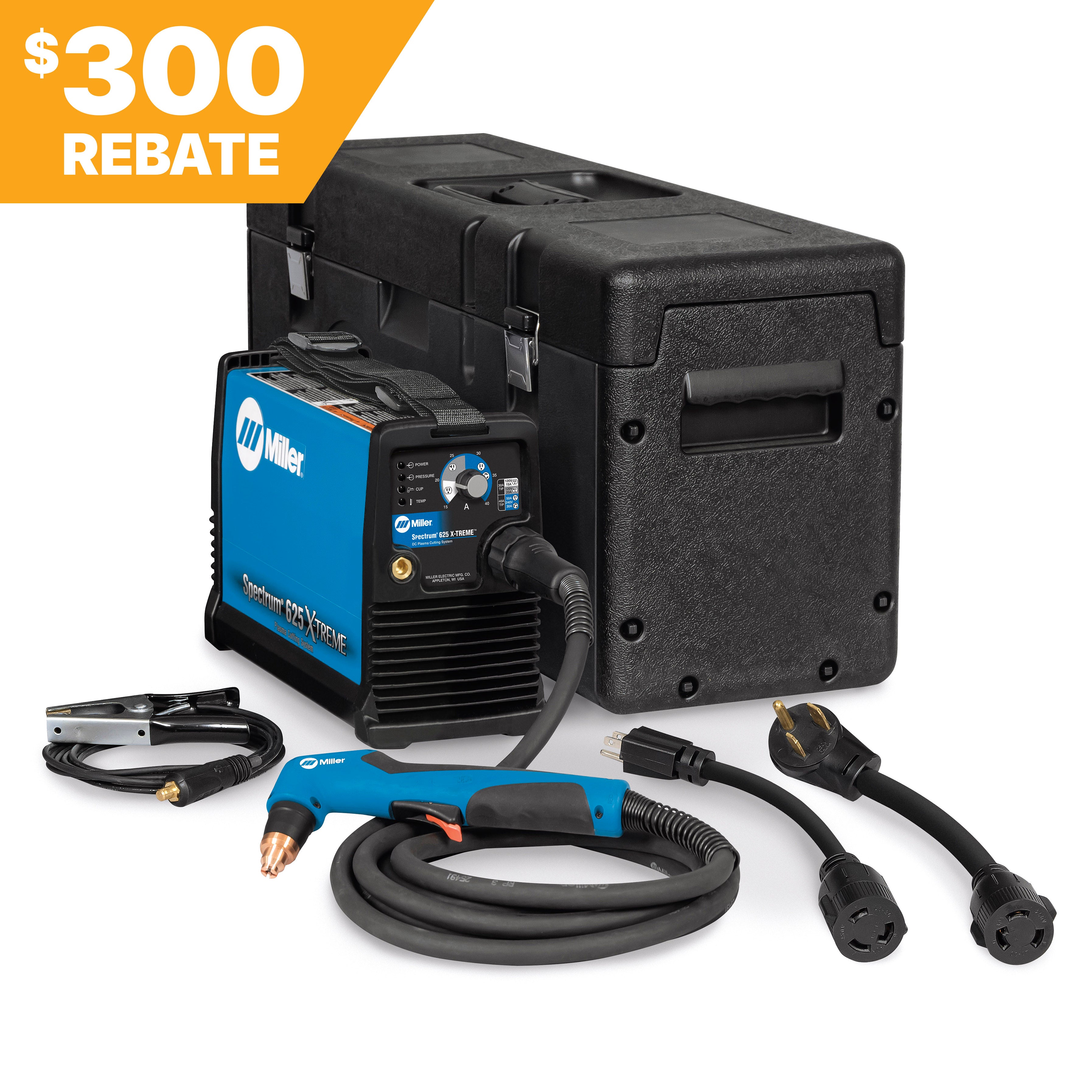

| Title | Spectrum® 625 X-TREME™ 12-ft. XT40 Quick Connect |
|---|---|
| Industries Interests |
Racing / Customizing / Restoring Construction DIY / Home Hobbyist Farm and Ranch Infrastructure Manufacturing Metal Art / Sculptures Shipbuilding Boat / Yacht |
| Capability Gouging | — |
| Plasma Material Thickness |
Mild Steel 5/8 in. (15.9 mm) 15 IPM Stainless Steel 1/2 in. (12.7 mm) 15 IPM Aluminum 3/8 in. (9.5 mm) 15 IPM |
| Rated Output at 104 Degrees Fahrenheit | 120 (15 A): 20 A at 88 VDC, 60% duty cycle; 120 V (20 A) 27 A at 91 VDC, 35% duty cycle; 240 V: 40 A at 140 VDC, 60% duty cycle |
| Recommended Generator Power | 8000 |
| Input Voltage |
110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 60 Hz |
| Input Amperage | 13.6 A |
| Net Width | 5.5 in |
| Net Height | 9 in |
| Net Length | 13.25 in |
| Net Weight | 21 lbs |
| Warranty |
3 Years
Miller's True Blue Warranty |
