Processes
Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
TIG (GTAW)
Plasma (PAC)
Compressed Air
General Specifications

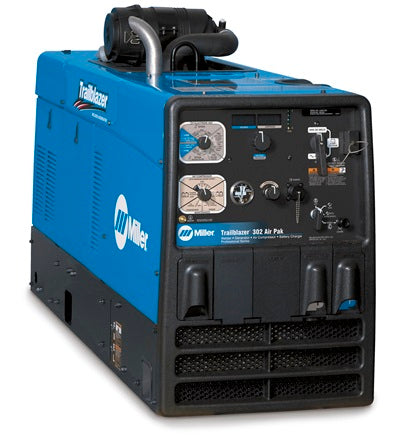

| Title | Trailblazer® 302 Air Pak™ w/cool/sep, GFCI, Electric Fuel Pump |
|---|---|
| Industries Interests |
Construction Farm and Ranch Infrastructure Shipbuilding Boat / Yacht High Purity Processing |
| Engine Brand | Kohler |
| Engine Idle Speed | 2400 RPM |
| Engine Weld Speed | 3600 RPM |
| Fuel Tank Size | 12 Gallon |
| Fuel Type | Gasoline |
| Horsepower | 27 hp |
| Weldable Metals |
Aluminum Steel Stainless Steel |
| Rated Output |
CC/AC 200 A at 25 V, 60% Duty Cycle CC/DC 280 A at 32 V, 100% Duty Cycle CV/DV 350 A at 32 V, 60% Duty Cycle 300 A at 32 V, 100% Duty Cycle |
| Single Phase Generator Continuous Power | 11000 W |
| Single Phase Generator Peak Power | 13000 W |
| Sound Rating | 73.4 dB @ idle and 81.2 db @ weld dB |
| Current Type | AC / DC |
| Amperage Range | 10 - 300 |
| Portability |
Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Weld Output | CC / CV |
| Net Width | 20 in |
| Net Height | 34.5 in |
| Net Length | 59.625 in |
| Net Weight | 771 lbs |
| Warranty |
3 Years
Engine Warranties Miller's True Blue Warranty |
