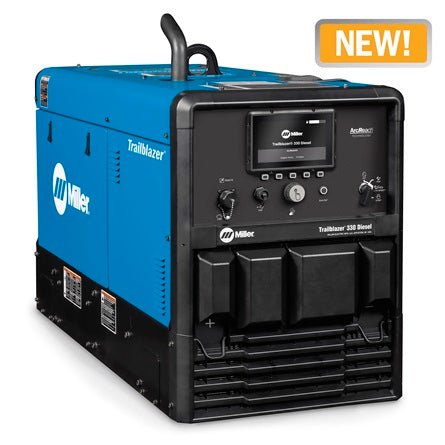

Miller Trailblazer 330 Diesel (Kubota) 907849
Regular price
$18,829.00 USD
Couldn't load pickup availability
Share This Product
Reliable engine-driven welders with unbeatable arc performance, providing the smoothest, most stable arc in the industry. Trailblazer exclusive technologies — advanced Auto-Speed™ and optional Excel™ power — deliver superior runtimes, increase fuel efficiency, and improve engine-driven welder performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.
Features:
- Intuitive digital interface with Auto-Set™ makes it quick and easy to precisely set weld parameters for any process.
- Direct Connect Spool Gun Connection
- ArcReach® for parameter control at the wire feeder or pendant without needing a control cord.
- Dynamic DIG™ to optimize arc control for stick welding applications.
- Pulsed TIG with QuitePulse™creating a slower, more fluid transition between backgrounf and peak amperage.
Easy to Use
Digital interface speeds machine setup and makes it less complicated.
Exceptional Arc Performance
Easy arc starts and less spatter.
Easy Maintenance
With its intuitive design, the daily maintenance of our Trailblazer engine-driven welder is fast and easy.
Auto-Speed™ technology
Advanced Auto-Speed technology automatically adjusts engine speed to match weld and battery charge demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.
Separate weld and auxiliary power
Full auxiliary power at any setting.
ArcReach® Technology
ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.
Dynamic DIG™
Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
QuietPulse™
QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
Specifications:
Processes
- Air Carbon Arc Cutting and Gouging: (CAC-A)
-
Pulsed TIG: (GTAW-P)
-
Flux Cored: (FCAW)
-
Stick: (SMAW)
-
MIG: (GMAW)
-
TIG DC: (GTAW-DC)
-
Shipping Length (in): 45.72
-
Shipping Width (in): 20.6
-
Shipping Height (in): 27.02
-
Shipping Weight (in): 611
- Phase: 1-Phase (Single Phase)
- Fuel Type: Diesel (11 Gal)
- User Interface: LCD with Buttons and Knob
- Not Included: Weld Leads
- Voltage Range: 15-40V
-
Weldable Metals: Aluminum, Steel, Stainless Steel
-
Process: Stick, FCAW, MIG, TIG, Gouge
-
Output Type: DC
-
Input Voltage: Engine-Driven
-
Min Wire Feed Speed: N/A
-
UOM Qty: Ea
- UPC: 715959707978
- Family Name: Trailblazer
- Segment Name: Engine-Driven Welder
-
Application Class: Fabrication, Maintenance Repair, Structural Steel Work, Sheet Metal, Pipe
-
Recommended Accessory ID 1: 301717
-
Recommended Accessory ID 2: 301718
- Recommended Accessory ID 3: 301731
General Specifications:
| Title | Trailblazer® 330 Diesel (Kubota) |
|---|---|
| Industries Interests | Construction and Fabrication Heavy Equipment Railcar |
| Amperage | 20 A - 330 A |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Rated Carbon Diameter | 1/4 in (6.4 mm) |
| Current Type | DC |
| Max Open Circuit Voltage | 107 VDC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Cold Weather Starting Aids | Glow Plugs |
| Engine Brand | Kubota |
| Engine Compliance | T4F |
| Engine Idle Speed | 1800 RPM |
| Engine Weld Speed | Advanced Auto-Speed(TM) technology: Varies engine speed from 1,800-3,600 rpm to match weld output |
| Fuel Tank Size | 11 Gallon |
| Fuel Type | Diesel |
| Horsepower | 24.8 hp |
| Weld Output | CC/CV |
| Rated Output | CC/DC Stick/TIG 330 A at 31 V, 100% duty cycle, CV/DC MIG/FCAW 330 A at 3.25 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 10500 W |
| Single Phase Auxiliary Peak Power | 12000 W |
| Sound Rating | 74.7 dB @ idle and 80.2 dB @ max weld |
| Applications | Aluminum Welding Fabrication Field Welding Industrial Welding Mobile Fabrication & MRO Structural Welding |
| Warranty | 3 Years Miller's True Blue Warranty |
