ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.
Dynamic DIG™
Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
QuietPulse™
QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.

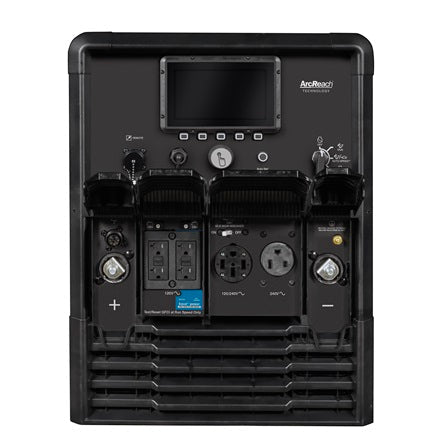

Power at idle — a Miller exclusive. Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle. With Excel power you can operate jobsite tools like grinders at quiet, fuel-saving speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Excel power — available only from Miller.
Specifications:
Processes
-
Air Carbon Arc Cutting and Gouging: (CAC-A)
-
Pulsed TIG: (GTAW-P)
-
Flux Cored: (FCAW)
-
Stick: (SMAW)
-
MIG: (GMAW)
-
TIG DC: (GTAW-DC)
-
Shipping Length (in): 45.72
-
Shipping Width (in): 20.6
-
Shipping Height (in): 27.02
-
Shipping Weight (in): 611
-
Phase: 1-Phase (Single Phase)
-
Fuel Type: Diesel (11 Gal)
-
User Interface: LCD with Buttons and Knob
-
Not Included: Weld Leads
-
Voltage Range: 15-40V
-
Weldable Metals: Aluminum, Steel, Stainless Steel
-
Process: Stick, FCAW, MIG, TIG, Gouge
-
Output Type: DC
-
UPC: 715959707985
-
Family Name: Trailblazer
-
Segment Name: Engine-Driven Welder
-
Application Class: Fabrication, Maintenance Repair, Structural Steel Work, Sheet Metal, Pipe
-
Recommended Accessory ID 1: 301717
-
Recommended Accessory ID 2: 301718
-
Recommended Accessory ID 3: 301731
General Specifications:
| Title |

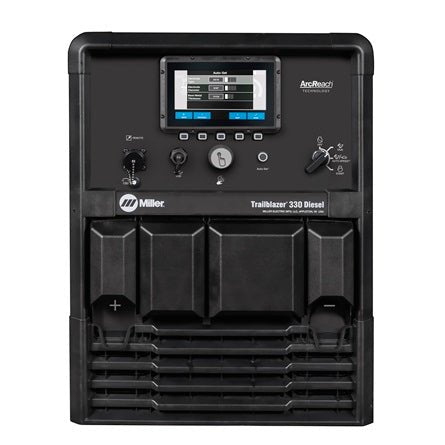

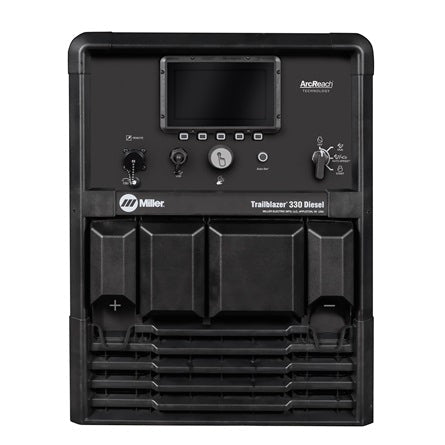

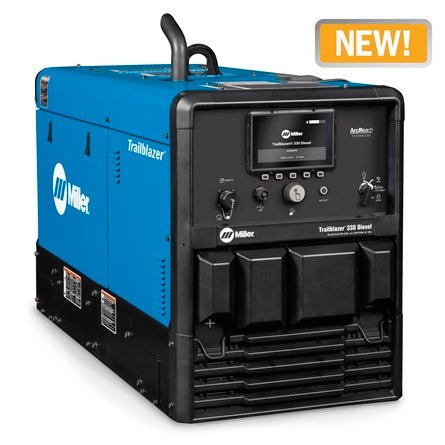

Trailblazer® 330 Diesel (Kubota) w/Excel™ Power |
| Industries Interests |
Construction and Fabrication
Heavy Equipment
Railcar |
| Amperage |
20 A - 330 A |
| Weldable Metals |
Aluminum
Stainless Steel
Steel |
| Rated Carbon Diameter |
1/4 in (6.4 mm) |
| Current Type |
DC |
| Max Open Circuit Voltage |
107 VDC |
| Portability |
Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional) |
| Cold Weather Starting Aids |
Glow Plugs |
| Engine Brand |
Kubota |
| Engine Compliance |
T4F |
| Engine Idle Speed |
1800 RPM |
| Engine Weld Speed |
Advanced Auto-Speed(TM) technology: Varies engine speed from 1,800-3,600 rpm to match weld output |
| Fuel Tank Size |
11 Gallon |
| Fuel Type |
Diesel |
| Horsepower |
24.8 hp |
| Weld Output |
CC/CV |
| Rated Output |
CC/DC Stick/TIG 330 A at 31 V, 100% duty cycle, CV/DC MIG/FCAW 330 A at 3.25 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power |
10500 W |
| Single Phase Auxiliary Peak Power |
12000 W |
| Sound Rating |
74.7 dB @ idle and 80.2 dB @ max weld |
| Applications |
Aluminum Welding
Fabrication
Field Welding
Industrial Welding
Mobile Fabrication & MRO
Structural Welding |
| Warranty |
3 Years
Miller's True Blue Warranty
|
