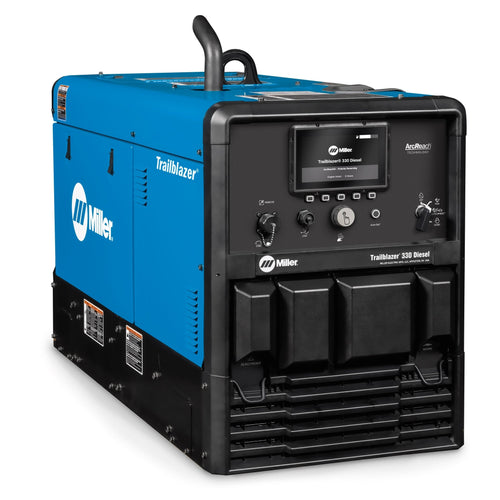

Miller Trailblazer 330 Diesel (Kubota) w/Excel Power & Polarity Reversing 907849004

In stock
SKU: 907849004
Regular price $21,165.00 USD
Reliable engine-driven welders with unbeatable arc performance, providing the smoothest, most stable arc in the industry. Trailblazer exclusive technologies — advanced Auto-Speed™ and optional Excel™ power — deliver superior runtimes, increase fuel efficiency, and improve engine-driven welder performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.

Features:

  • Intuitive digital interface with Auto-Set™ makes it quick and easy to precisely set weld parameters for any process.
  • Direct Connect Spool Gun Connection
  • ArcReach® for parameter control at the wire feeder or pendant without needing a control cord.
  • Dynamic DIG™ to optimize arc control for stick welding applications.
  • Pulsed TIG with QuitePulse™creating a slower, more fluid transition between backgrounf and peak amperage.
  • Excel™ Power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle.
  • Wireless Interface Control so you get full control of your machine in the palm of your hand, from wherever you are on the jobsite, so you can work hassle free.
  • Polarity reversing capability to easily switch polarity of the weld studs at the interface.

Easy to Use

Digital interface speeds machine setup and makes it less complicated.


Exceptional Arc Performance

Easy arc starts and less spatter.

Easy Maintenance

With its intuitive design, the daily maintenance of our Trailblazer engine-driven welder is fast and easy.

Auto-Speed™ technology

Advanced Auto-Speed technology automatically adjusts engine speed to match weld and battery charge demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.

Separate weld and auxiliary power

Full auxiliary power at any setting.

ArcReach® Technology

ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.

Dynamic DIG™

Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.

QuietPulse™

QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.

Excel™ power (option)

Power at idle — a Miller exclusive. Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle. With Excel power you can operate jobsite tools like grinders at quiet, fuel-saving speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Excel power — available only from Miller.



Wireless Interface Control

Get full control of your machine in the palm of your hand, from wherever you are on the jobsite, so you can work hassle free. With wireless interface control, you can:
  • Change welding processes
  • Adjust parameters
  • Select and save preset programs
  • Turn the machine on/off
  • View service reminders
  • And more!
Extend time between fill ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.

Specifications:

Processes

  • Air Carbon Arc Cutting and Gouging: (CAC-A)
  • Pulsed TIG: (GTAW-P)
  • Flux Cored: (FCAW)
  • Stick: (SMAW)
  • MIG: (GMAW)
  • TIG DC: (GTAW-DC)
  • Shipping Length (in): 45.72
  • Shipping Width (in): 20.6
  • Shipping Height (in): 27.02
  • Shipping Weight (in): 611
  • Phase: 1-Phase (Single Phase)
  • Fuel Type: Diesel (11 Gal)
  • User Interface: LCD with Buttons and Knob
  • Not Included: Weld Leads
  • Voltage Range: 15-40V
  • Weldable Metals: Aluminum, Steel, Stainless Steel
  • Process: Stick, FCAW, MIG, TIG, Gouge
  • Input Voltage: Engine-Driven
  • Min Wire Feed Speed: N/A
  • UOM Qty: Ea
  • UPC: 715959708012
  • Family Name: Trailblazer
  • Segment Name: Engine-Driven Welder
  • Application Class:  Fabrication, Maintenance Repair, Structural Steel Work, Sheet Metal, Pipe
  • Recommended Accessory ID 1: 301717
  • Recommended Accessory ID 2: 301718
  • Recommended Accessory ID 3: 301731
  • Recommended Accessory ID 4: 300422

General Specifications

Title Trailblazer® 330 Diesel (Kubota) w/Excel™ Power & Polarity Reversing
Industries Interests Construction and Fabrication
Heavy Equipment
Railcar
Amperage 20 A - 330 A
Weldable Metals Aluminum
Stainless Steel
Steel
Rated Carbon Diameter 1/4 in (6.4 mm)
Current Type DC
Max Open Circuit Voltage 107 VDC
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)
Cold Weather Starting Aids Glow Plugs
Engine Brand Kubota
Engine Compliance T4F
Engine Idle Speed 1800 RPM
Engine Weld Speed Advanced Auto-Speed(TM) technology: Varies engine speed from 1,800-3,600 rpm to match weld output
Fuel Tank Size 11 Gallon
Fuel Type Diesel
Horsepower 24.8 hp
Weld Output CC/CV
Rated Output CC/DC Stick/TIG 330 A at 31 V, 100% duty cycle, CV/DC MIG/FCAW 330 A at 3.25 V, 100% duty cycle
Single Phase Auxiliary Continuous Power 10500 W
Single Phase Auxiliary Peak Power 12000 W
Sound Rating 74.7 dB @ idle and 80.2 dB @ max weld
Applications Aluminum Welding
Fabrication
Field Welding
Industrial Welding
Mobile Fabrication & MRO
Structural Welding
Warranty 3 Years
Miller's True Blue Warranty
