ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.
Dynamic DIG™
Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
QuietPulse™
QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
Excel™ power (option)

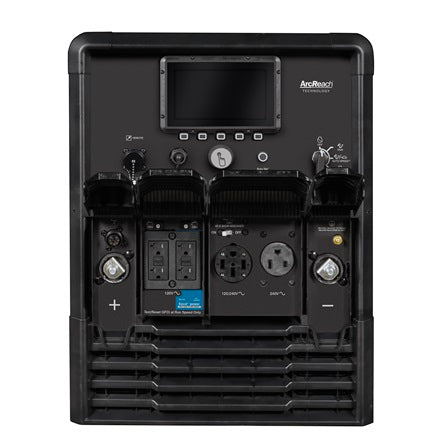

Power at idle — a Miller exclusive. Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle. With Excel power you can operate jobsite tools like grinders at quiet, fuel-saving speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Excel power — available only from Miller.

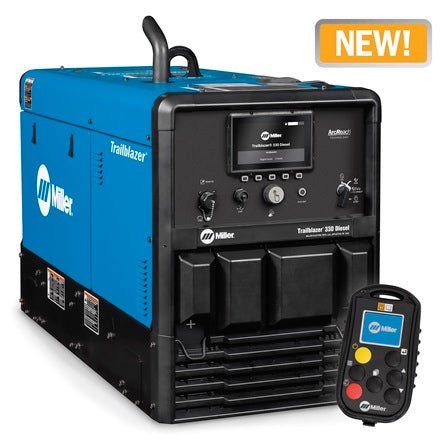

Wireless Interface Control
Get full control of your machine in the palm of your hand, from wherever you are on the jobsite, so you can work hassle free. With wireless interface control, you can:
- Change welding processes
- Adjust parameters
- Select and save preset programs
- Turn the machine on/off
- View service reminders
- And more!
Extend time between fill ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.
Specifications:
Processes
-
Air Carbon Arc Cutting and Gouging: (CAC-A)
-
Pulsed TIG: (GTAW-P)
-
Flux Cored: (FCAW)
-
Stick: (SMAW)
-
MIG: (GMAW)
-
TIG DC: (GTAW-DC)
-
Shipping Length (in): 45.72
-
Shipping Width (in): 20.6
-
Shipping Height (in): 27.02
-
Shipping Weight (in): 611
-
Phase: 1-Phase (Single Phase)
-
Fuel Type: Diesel (11 Gal)
-
User Interface: LCD with Buttons and Knob
-
Not Included: Weld Leads
-
Voltage Range: 15-40V
-
Weldable Metals: Aluminum, Steel, Stainless Steel
-
Process: Stick, FCAW, MIG, TIG, Gouge
-
UPC: 715959707992
-
Family Name: Trailblazer
-
Segment Name: Engine-Driven Welder
-
Application Class: Fabrication, Maintenance Repair, Structural Steel Work, Sheet Metal, Pipe
-
Recommended Accessory ID 1: 301717
-
Recommended Accessory ID 2: 301718
-
Recommended Accessory ID 3: 301731
General Specifications:
| Title |

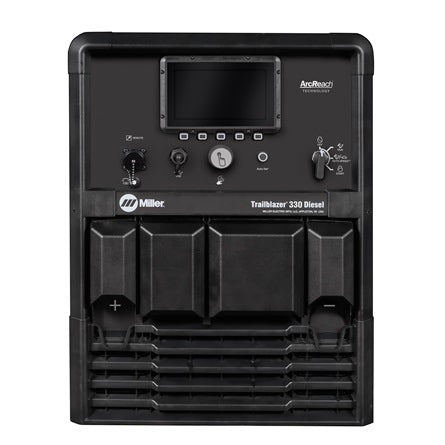

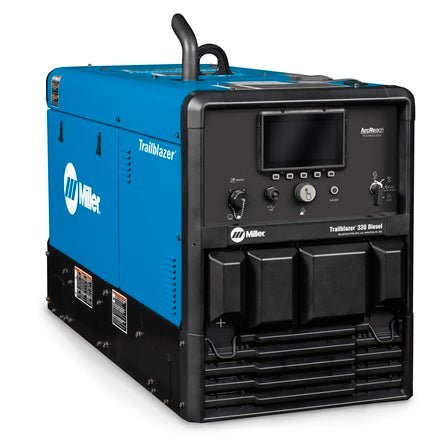

Trailblazer® 330 Diesel (Kubota) w/Excel™ Power & Wireless Interface Control |
| Industries Interests |
Construction and Fabrication
Heavy Equipment |
| Amperage |
20 A - 330 A |
| Weldable Metals |
Aluminum
Stainless Steel
Steel |
| Rated Carbon Diameter |
1/4 in (6.4 mm) |
| Current Type |
DC |
| Max Open Circuit Voltage |
107 VDC |
| Portability |
Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional) |
| Cold Weather Starting Aids |
Glow Plugs |
| Engine Compliance |
T4F |
| Engine Idle Speed |
1800 RPM |
| Engine Weld Speed |
Advanced Auto-Speed(TM) technology: Varies engine speed from 1,800-3,600 rpm to match weld output |
| Fuel Tank Size |
11 Gallon |
| Fuel Type |
Diesel |
| Horsepower |
24.8 hp |
| Weld Output |
CC/CV |
| Rated Output |
CC/DC Stick/TIG 330 A at 31 V, 100% duty cycle, CV/DC MIG/FCAW 330 A at 3.25 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power |
10500 W |
| Single Phase Auxiliary Peak Power |
12000 W |
| Sound Rating |
74.7 dB @ idle and 80.2 dB @ max weld |
| Applications |
Aluminum Welding
Fabrication
Field Welding
Industrial Welding
Mobile Fabrication & MRO
Structural Welding |
| Warranty |
3 Years
Miller's True Blue Warranty
|
