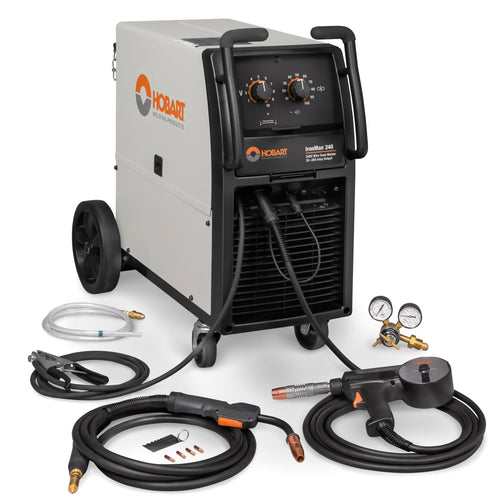

Hobart Mig Welder Ironman 240 With SpoolRunner 200 Spool Gun 500574001

In stock
SKU: 500574001 UPC: 715959681407
Atlas Welding Supply Satisfaction Guarantee!
Regular price $2,649.99 USD

A powerful, heavy-duty wire feed welder that delivers professional results with superior arc quality. Runs on 240V input power, welds up to 1/2 in. mild steel, and is spool gun ready for aluminum.

What's Included

SpoolRunner 200 SpoolGun15 ft. 200-amp MIG Welding gunRegulator/flow gauge5 ft. gas hosePrimary input cable with plug
Dual-groove drive roll - .030/.035 in.10 ft. work cable with clamp.030 and .035 contact tipsBuilt-in running gear/cylinder rackWeld, set-up and parts information chart
Infinite wire feed control
Allows you to precisely adjust penetration and weld bead shape.

Spool gun ready
Easy setup for welding aluminum with no additional interface.

Run in Technology
Experience smooth, spatter-free starts. The run-in feature automatically slows the wire feed speed to a pre-set speed prior to arc initiation, improving arc starts.

Reversible drive rolls: two grooves for two wire sizes on one drive roll
Decreases your amount of spare parts, changeover time, and overall costs. 50% less stocking, one-piece drive roll.

Spool hub assembly accommodates 4- or 8-inch spools
Offers you flexibility to use small or large spools of wire to better suit your welding needs.

Hinged feeder panel
Increases your productivity and is more appealing. Gives you more access to wire feeder panel for spool and feed roll changes.

Hobart 5/3/1 industrial warranty
Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, Plasma and TIG torches).

Fan-On-Demand™
Cooling system operates only when needed reducing power consumption and contaminants drawn into the machine.

Processes

Flux Cored (FCAW)
MIG (GMAW)

Key Specifications

Title IronMan™ 240 MIG Welder with SpoolRunner™ 200
Applications Welding Projects
Industries Racing
Farm and Ranch
Manufacturing
Material Thickness Mild Steel 24 ga. (0.5 mm) - 1/2 in. (12.7 mm)
Weldable Metals Aluminum
Stainless Steel
Steel
Current Type DC
Rated Output 200 A @ 60% duty cycle
Max Open Circuit Voltage 40 VDC
Wire Feed Speed 50 IPM - 700 IPM
Wire Diameter Stainless 0.023 in. - 0.045 in.
Stainless 0.6 mm. - 1.2 mm.
Solid Steel 0.6 mm. - 1.2 mm.
Solid Steel 0.023 in. - 0.045 in.
Flux Cored 0.03 in. - 0.045 in.
Flux Cored 0.8 mm. - 1.2 mm.
Spool Size 12 in.
Portability Running Gear / Cart (Standard)
Input Voltage 220/230/240 V
Input Phase 1-Phase
Input Hz 60 Hz
Net Width 19 in
Net Height 30 in
Net Length 40 in
Net Weight 196.5 lbs
